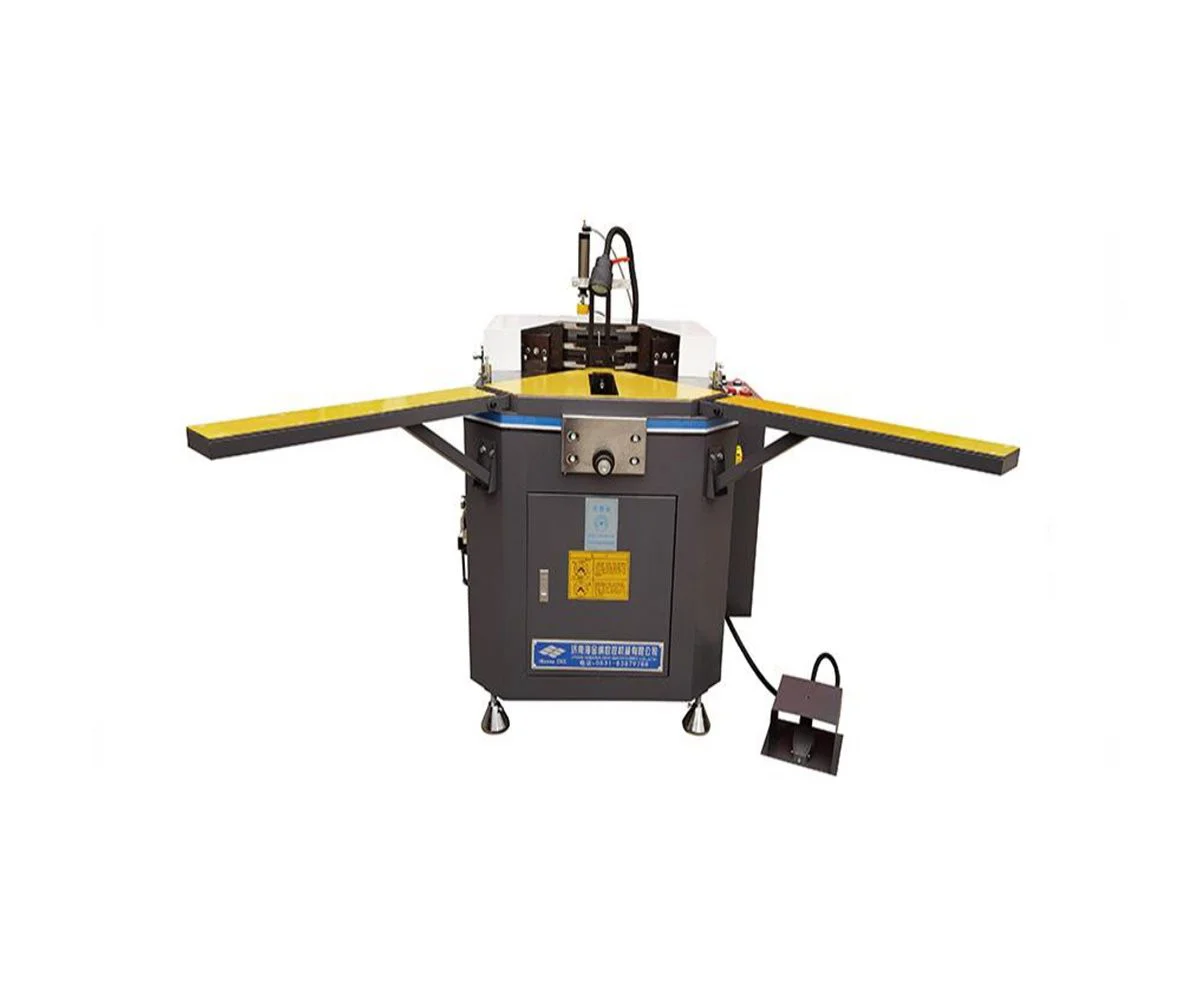

Corner Crimping Machine (LZJ-03)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LZJ-03|Power supply:380V/50Hz|Motor power:2.2 Kw|Spindle speed:140 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:2 L/min|Hydraulic pressure:16 Mpa|Flow velocity:8.6 L/min|Fuel tank capacity:40 L|Maximum profile width:120 mm|Machine dimension:1300x1040x1250mm|Weight:400KG
Description
1.Hydraulic system driving , ensure a stable working .
2.Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic.
3. Cylinder driving, which avoid the corner deform and enhance the connection efficiently.
4. Convenient operation and less error in processing.
5. Stroke of feed is adjustable, positioning block can lift automatically, easy to get the finished frame.
