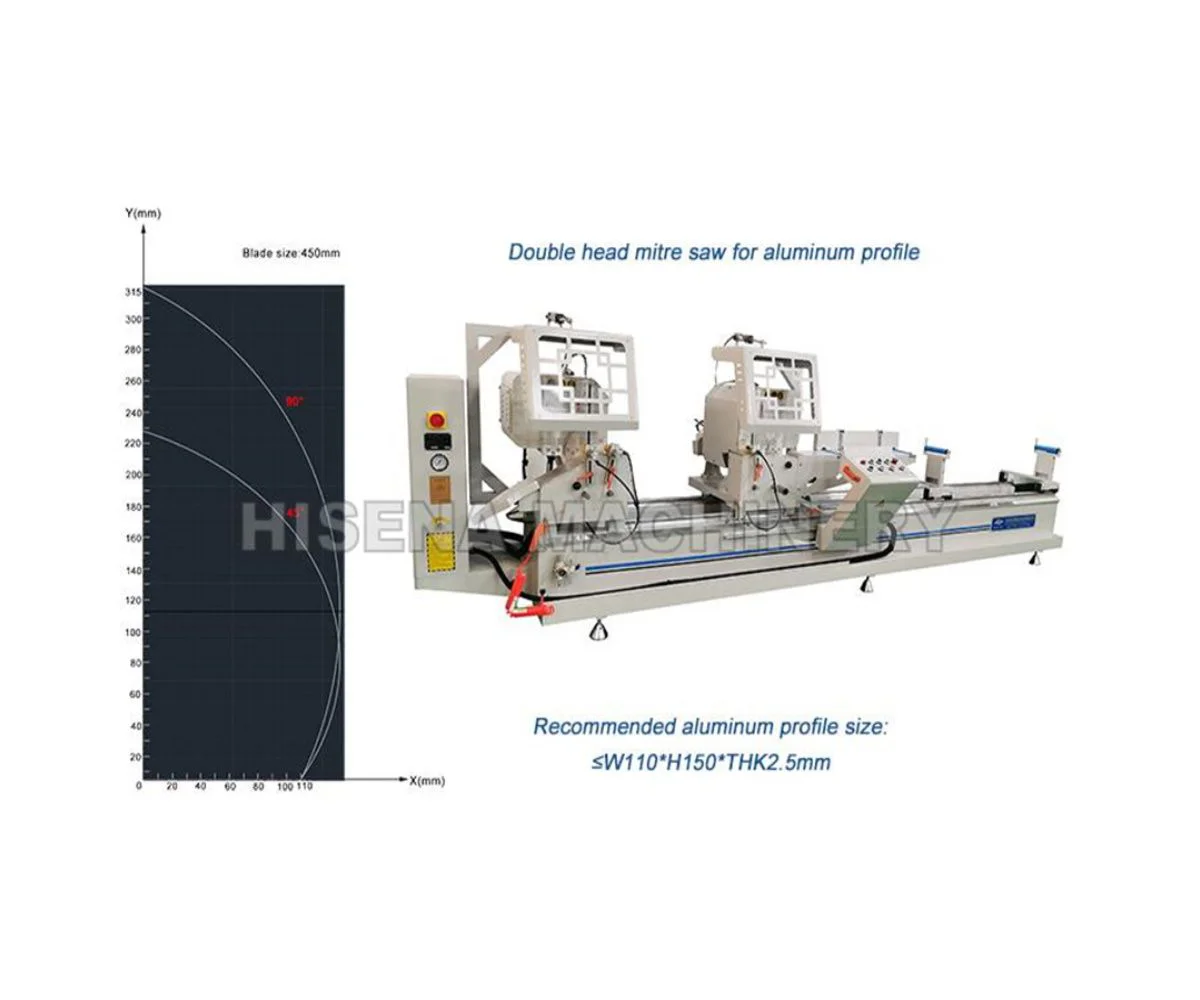

Double Head Mitre Saw (LJZ2A-450*3700)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LJZ2A-450*3700|Power supply:380V/50Hz|Motor power:2*1.5 Kw|Spindle speed:2800 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:200 L/min|Blade size:Φ450×Φ30×δ4mm Z=120|Cutting angle:Auto inward 45°/90°|Cutting width*height:90 degree:110*210 mm|:45 degree:110*150 mm|Cutting length:400-3700 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:5040*1220*1600 mm|Weight:1000KG
Description
1.Used for cutting PVC and aluminum profile.
2.Two head can work Simultaneously or Separate.
3.Sawblade feeding system adopts imported linear guide pair, with high accuracy and long service life.
4.Two heads can automatically flip 90°and inward 45°,outward 45° is available manually. Saw blade rotate smoothly due to high accuracy main spindle.
5.Imported carbide saw blade give accurate processing and high endurance.
6.Auto-opening guard shield ensured safety operation.
7.Spraying cooling system, make sure carbide saw blade long service life.
