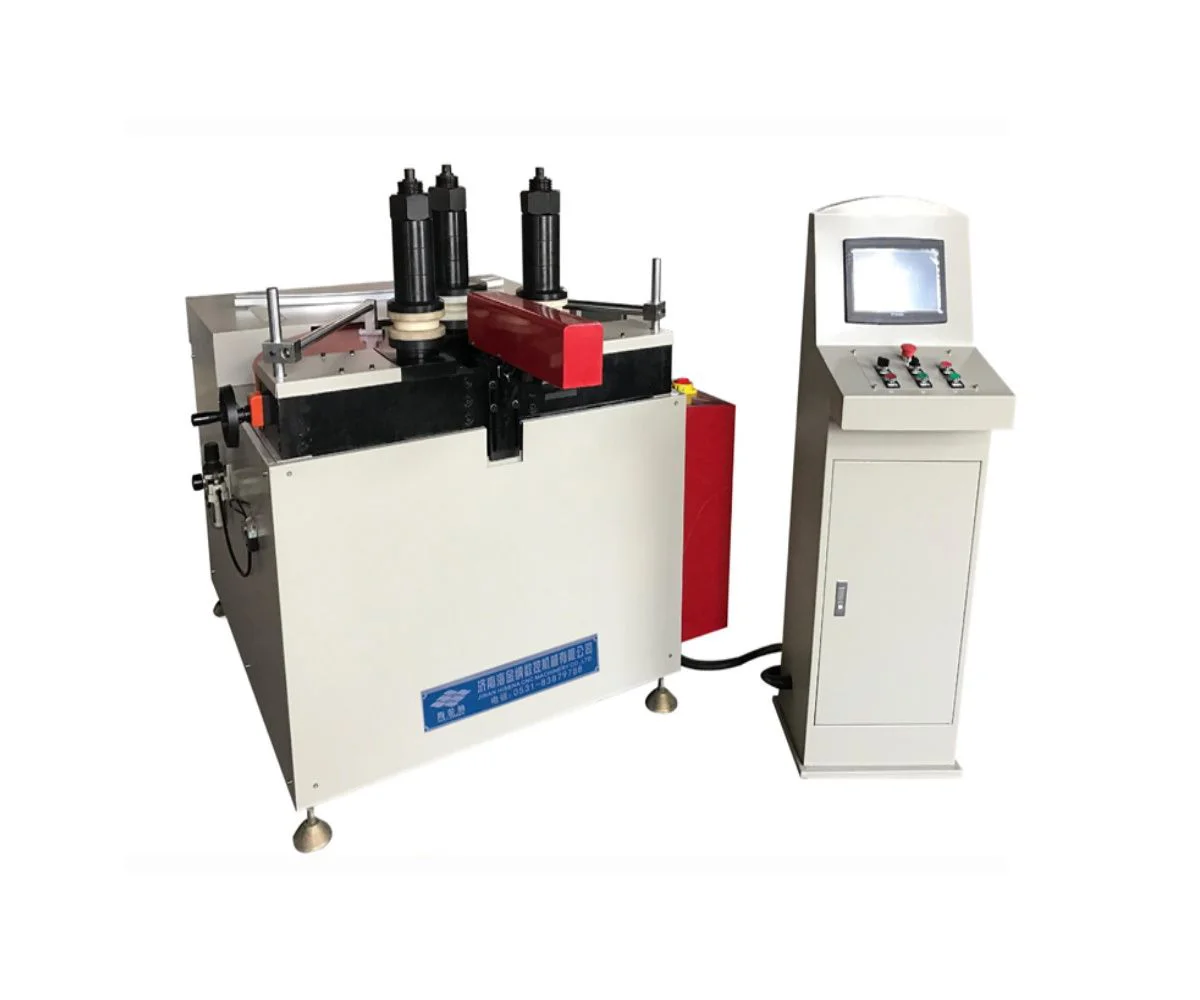

3 Rollers CNC Arc Bending Machine (YH3S-CNC)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
CategoryCNC MachinesManufacturerJINAN HAIJINNA CNC MACHINERY CO. LTDMin Order Quantity1.00 UnitDelivery Lead Time60 DaysPlace of OriginChinaSupply Ability Customization on RequirementPackaging DetailsStandard Export PackingTransportation DetailsChina
*Login Required
Details
Model:YH3S-CNC|Power supply:380V/50Hz|Power:6.5 Kw|Roller speed:1-15 r/min|Torque of axis:Max. 2600 NM|Thrust of Y axis:20 T|Repeatability of Y axis:<=0.20 mm|Roller shaft diameter:65 mm|Fixed shaft distance:340-420 mm|Profile size range:H260*W100 mm|Machine dimension:1500x1300x1300 mm|Weight:1000KG
Description
The machine adopts a proportional servo hydraulic system, which is stable and efficient. It is widely used in aluminum alloy doors and windows, automobile industry, aerospace, high-speed rail, wind power generation, ships, large buildings, bridges, and various non-standard metal profile bending.
