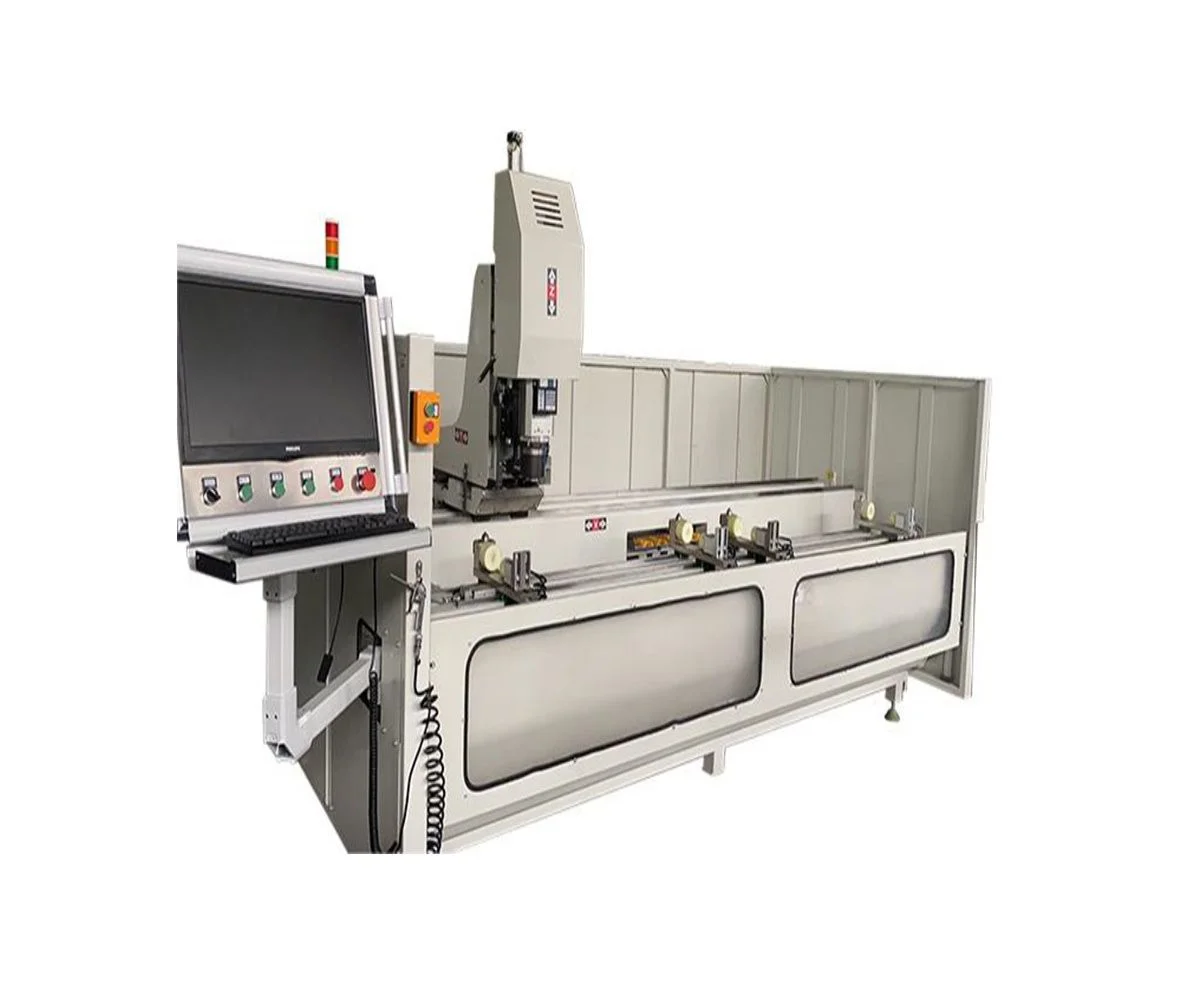

CNC Machining Center 3-axis (MC3PA-3000)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:MC3PA-3000|Power supply:380V/50Hz|Spindle Motor power:8 Kw|Air pressure:0.5-0.8 Mpa|Main spindle speed:0-22000 rpm|X-axis stroke:6000 mm|Y-axis stroke:320 mm|z-axis stroke:300 mm|X-axis speed:0-60/min|Tool holder:BT30|Collet:ER35|Magazine:5 tools|PLC:PA(Germany)|Machine dimension:3800x1800x2000 mm|Weight:1500KG
Description
1. This machine is designed for processing aluminum extrusions, including drilling, milling and tapping.
2. There are X, Y and Z three axis, workbench is rotatable in three planes of 0 degree, 90 degree and -90 degree as well.
3. PA CNC system with HAN’S PA CAM software is easy for operation.
4. Automatically detect whether the clamps interfere with the processing position, and the clamps position can be automatically adjusted for the second time.
