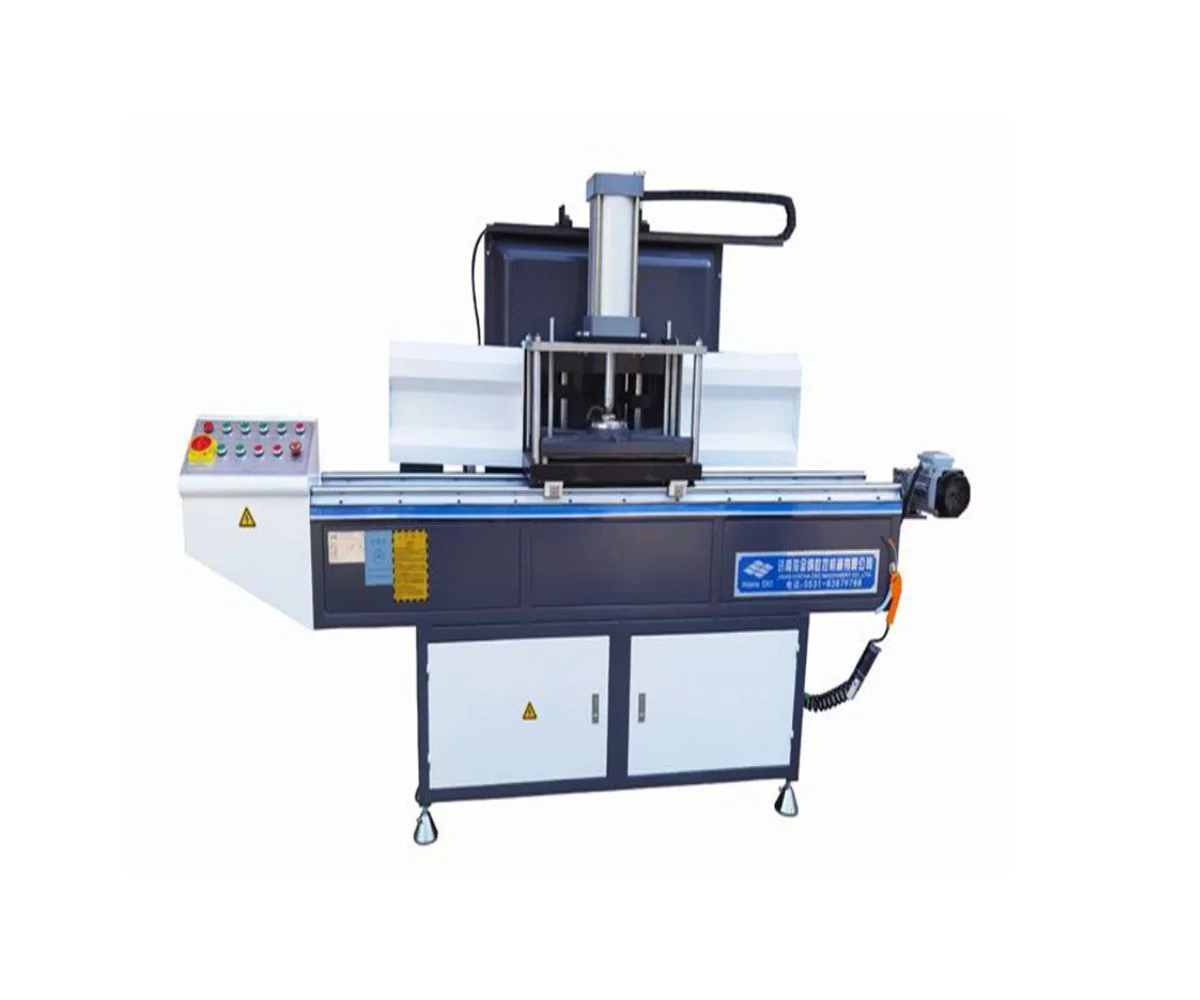

End Milling Machine (LDXW-250)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD

CategoryExtrusion Auxiliary EquipmentManufacturerJINAN HAIJINNA CNC MACHINERY CO. LTDMin Order Quantity1.00 UnitDelivery Lead Time60 DaysPlace of OriginChinaSupply Ability Customization on RequirementPackaging DetailsStandard Export PackingTransportation DetailsRoad/Ship
*Login Required

Details

Model:LDXW-250|Power supply:380V/50Hz|Motor power:8.8 Kw|Air pressure:0.5-0.8 Mpa|Air consumption:50 L/min|Main spindle speed:2800 rpm|Disc mills:Ø250mm,Ø300mm|Machine dimension:2680x1020x1600 mm|Weight:700KG

Description

1.This machine is used for aluminum profile end face processing and suitable for various profiles.
2.It can process multi-piece profiles at one time, with high efficiency.
3.Convenient tool adjustment to meet different processing requirements.
4.No necessary to order tools when processing various profiles, saving cost and time.
5.Large tool diameter, high milling speed and good processing result.
6.According to user's requirement, this machine is installed safety cover which can keep safe operation.
7.Adopt electrical motor protect device to improve the safety.
8.Adopt lead screw feeding device, more smoothly.


For more detailed information including pricing, customisation and shipping.
