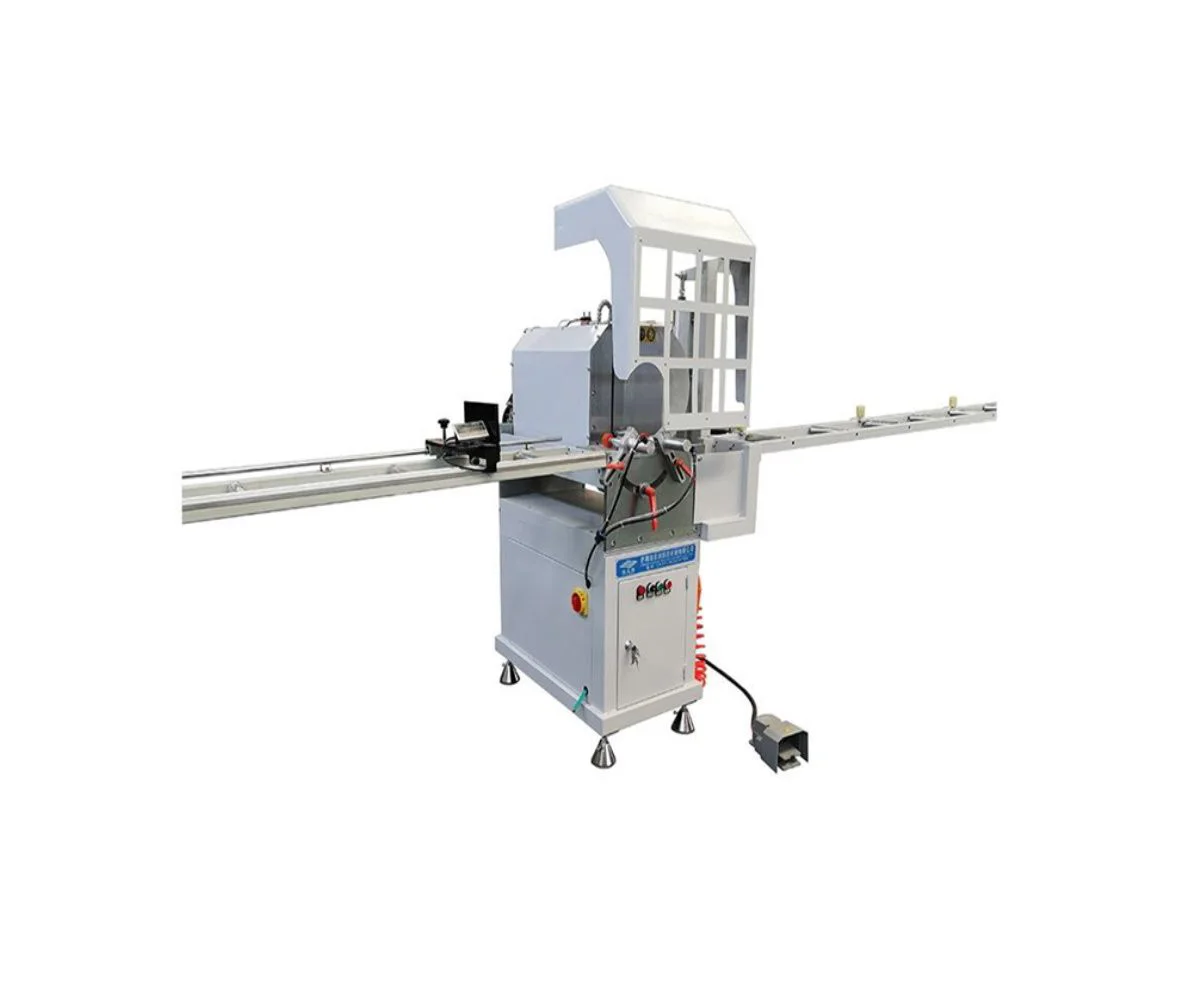

Single Head Mitre Saw (LSJ-450)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LSJ-450|Power supply:380 V/50Hz|Motor power:1.5 Kw|Spindle speed:2840 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:60 L/min|Blade size:Φ450×Φ30×δ4mm Z=120|Cutting angle:45°/90°/135°|Max. cutting width:120 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:1000x1100x1400 mm|Weight:300Kg|Feeding rack length:2500mm(L&R)
Description
1. Used for aluminum ,upvc profile and curtain wall profile cutting .
2.Sawblade feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. 90°and 45° cutting is available. Saw blade rotate smoothly due to high accuracy main spindle.
4. Imported carbide saw blade give accurate processing and high endurance.
5. Auto-opening guard shield ensured safety operation.
6. Spraying cooling system, make sure carbide saw blade long service life .
