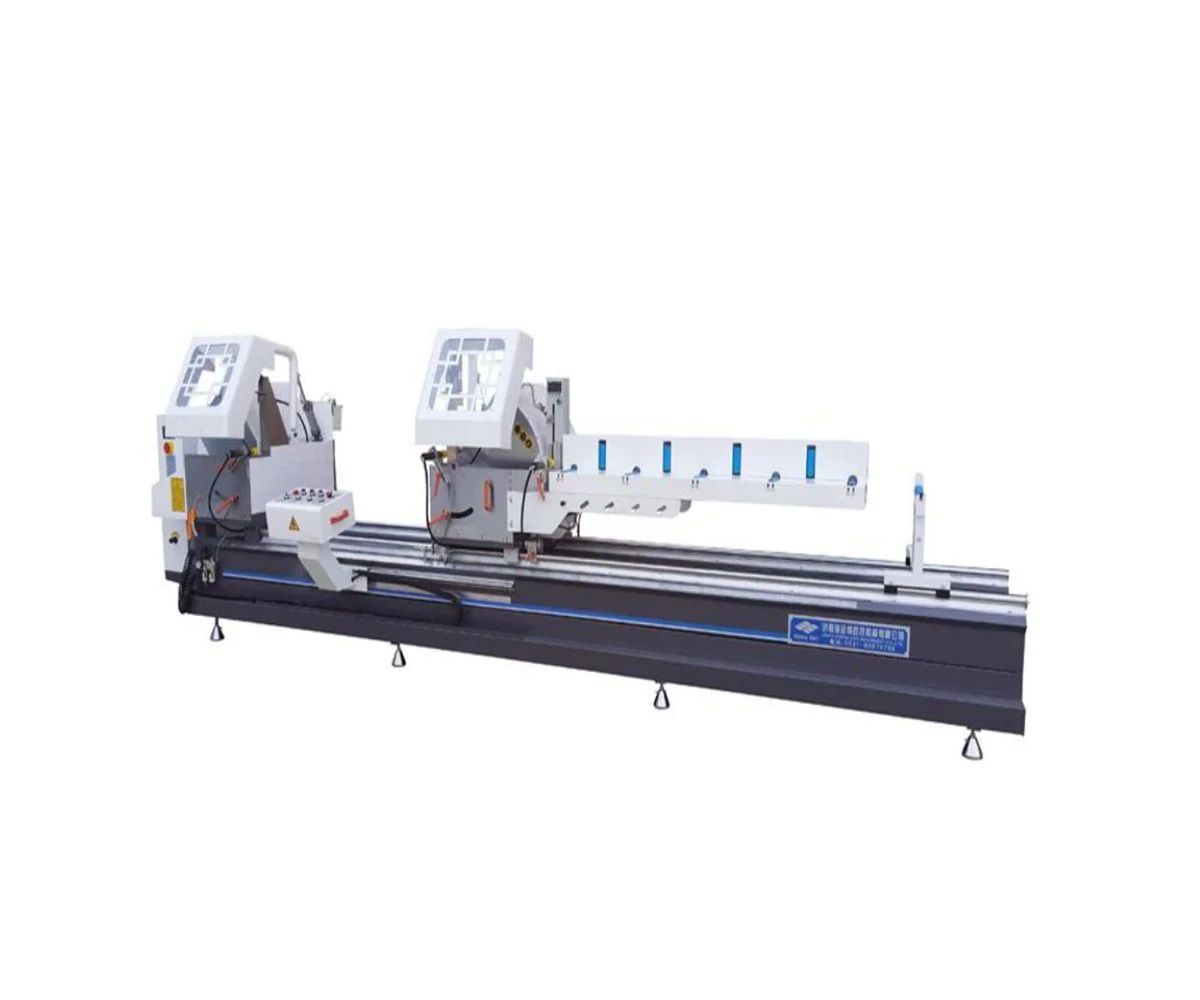

Double Head Mitre Saw (LJB1A--500x4200)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LJB1A--500×4200|Power supply:380V/50Hz|Motor power:2*2.2 Kw|Spindle speed:2800 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:200 L/min|Blade size:Φ500×Φ30×δ4.4mm,140T|Cutting angle:Auto outward 45°/90°|Cutting width*height:90 degree:140*240 mm|:45 degree:140*200 mm|Cutting length:370-4500 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:5900*1360*1720 mm|Weight:1400KG
Description
1.Used for aluminum profile high accurate cutting.
2.Imported Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
3.Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and easy operation .
4.Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
5.cutting angle change Automatic between 45° (outward)and 90°.
6.Imported carbide saw blade for a high quality cutting and long service life.
7.Automatic Safety system of shield can ensure the safe operation .
8.Spraying cooling system, make sure carbide saw blade long service life
