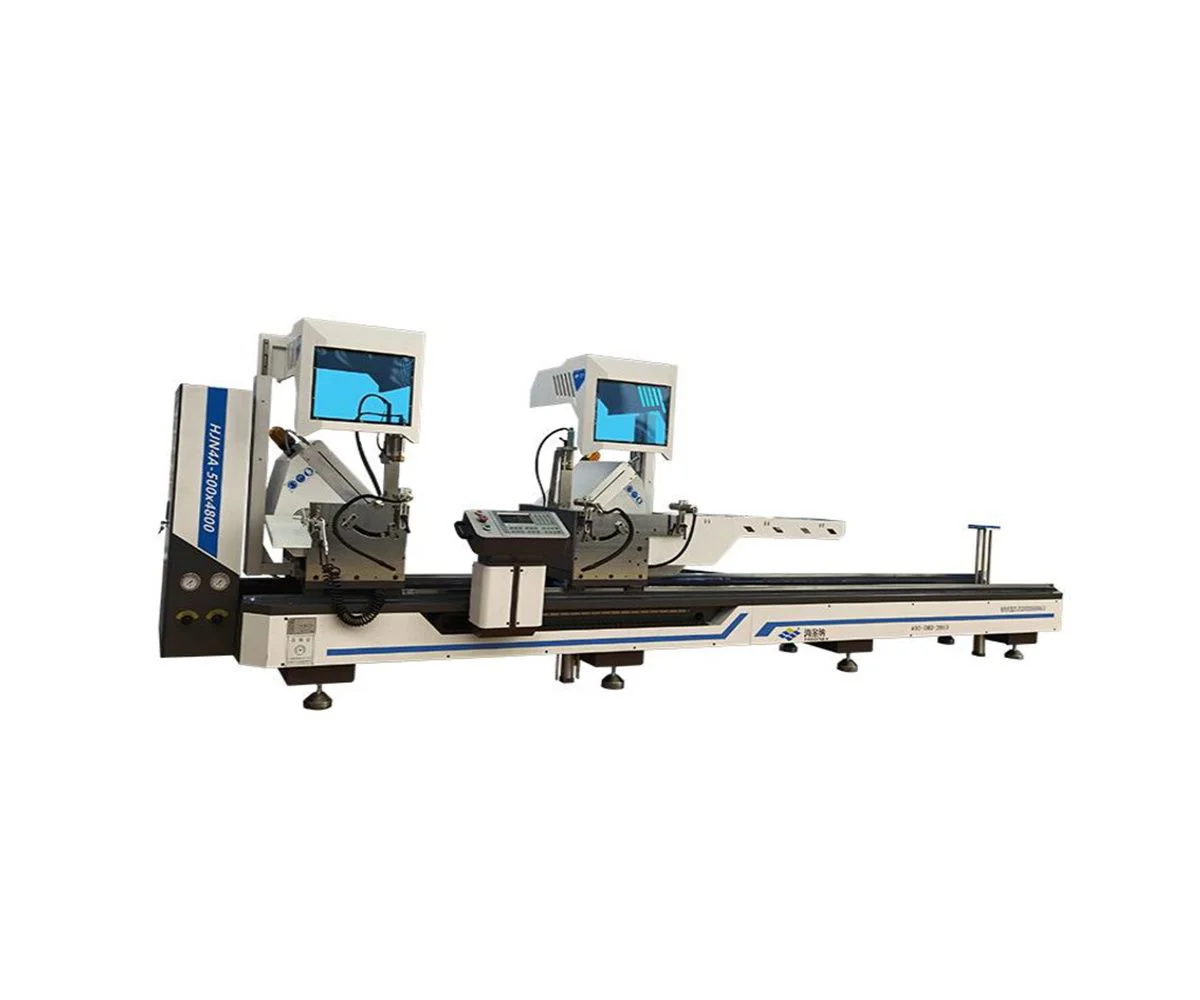

CNC Double Head Mitre Saw (HJN4A-500*4400)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:HJN4A-500*4400|Power supply:380V/50Hz|Motor power:2*3 Kw|Spindle speed:2800 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:200 L/min|Blade size:Φ500×Φ30×δ4.4mm,140T|Cutting angle:Auto outward 45°/90°|Cutting width:150 mm|Cutting length:249-8800 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:5800*1500*1800mm|Weight:2000KG|PLC:Schneider
Description
1.The swing angle shaft adopts one-piece casting and one-piece processing to reduce the error and not deform, and the stability of long-term use is high
2. The control system and electrical appliances adopt the French high-end brand Schneider, high-precision control, high stability.
3. With a fast feeding speed of 20000mm/min, low noise.
4. Curved sawing makes the cutting time shorter, the cutting surface is smooth and free of burrs, and the life of the saw blade is extended. Improve the surface finish of aluminum.
5. With ultra-short cut 249mm and ultra-long cut 8800mm.
6. The appearance design is exquisite and generous. The main material of the machine body adopts 8mm thick national standard rectangular tubes. The guide rail adopts the 30mm linear series of Taiwan HIWIN brand. The Taiwan YYC grinding rack ensures the precise size of the cutting length.
7. The machine body comes with automatic profile holders.
8. Auto-lubricating, rack and pinion gearing.
For more detailed information including pricing, customisation and shipping.
