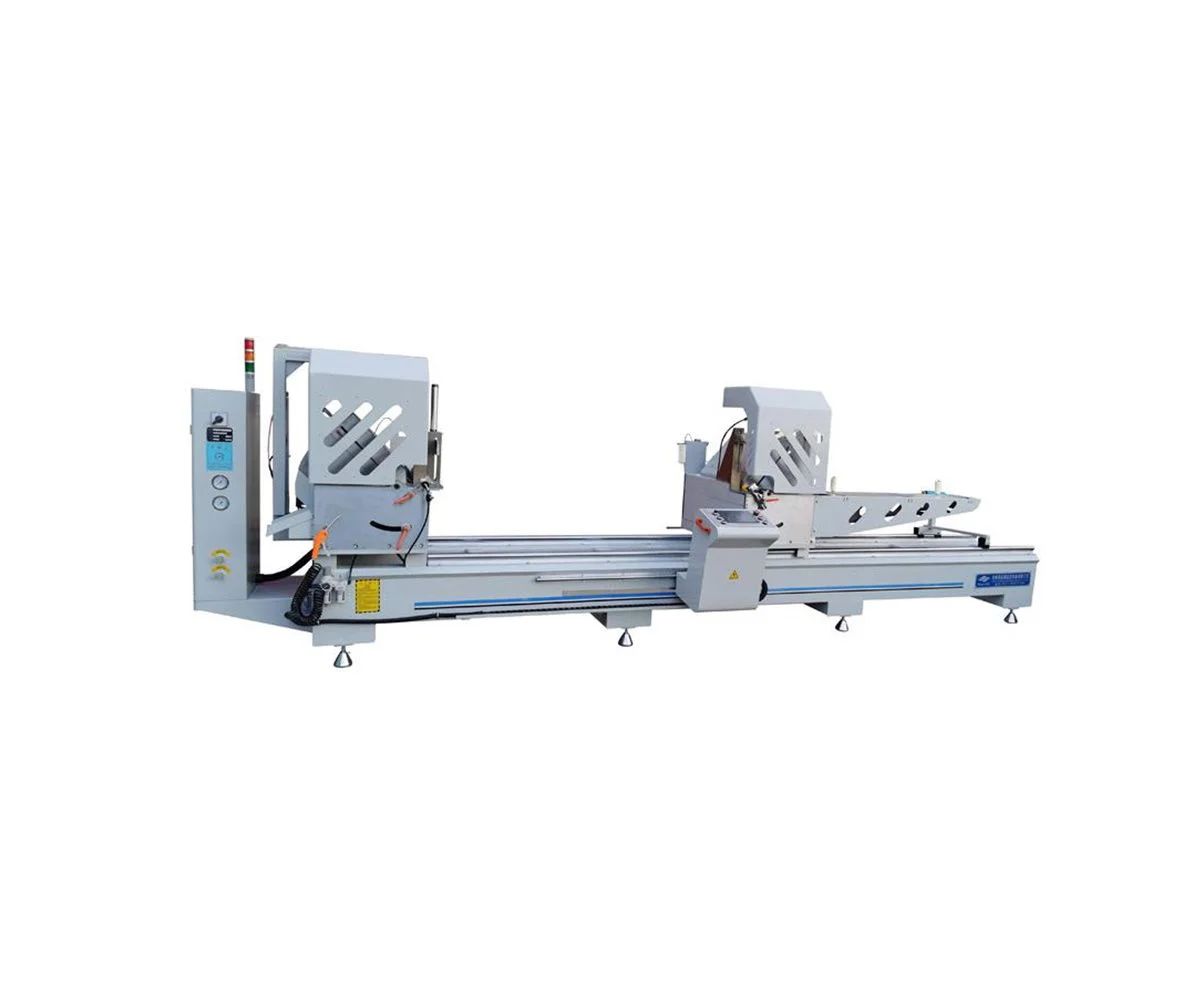

CNC Double Head Mitre Saw (LJB1A-CNC-500×4200)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LJB1A-CNC-500×4200|Power supply:380V/50Hz|Motor power:2*2.2 Kw|Spindle speed:2800 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:200 L/min|Blade size:Φ500×Φ30×δ4.4mm,140T|Cutting angle:Auto outward 45°/90°|Cutting width*height:90 degree:140*240 mm|:45 degree:140*200 mm|Cutting length:370-4500 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:5900*1360*1720mm|Weight:1600KG|PLC:DELTA
Description
1. Used for aluminium extrusions and curtain wall profile cutting.
2. CNC control makes the cutting according to size requirements with high accuracy.
3. Feeding system adopts imported linear guide pair, insure the high accurate cutting and long service life.
4. Auto-measuring the material height,no need to select this data into the system.
5. Saw blade rotate smoothly due to high accuracy main spindle.
6. Imported carbide saw blade give accurate processing and high endurance.
7. Imported linear bearing motion pair ensured steady processing accuracy.
8. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
9. Auto-opening guard shield gives a safety operation condition for workers.
10. Adopts industry PLC system, the user can set parameters according profiles.
