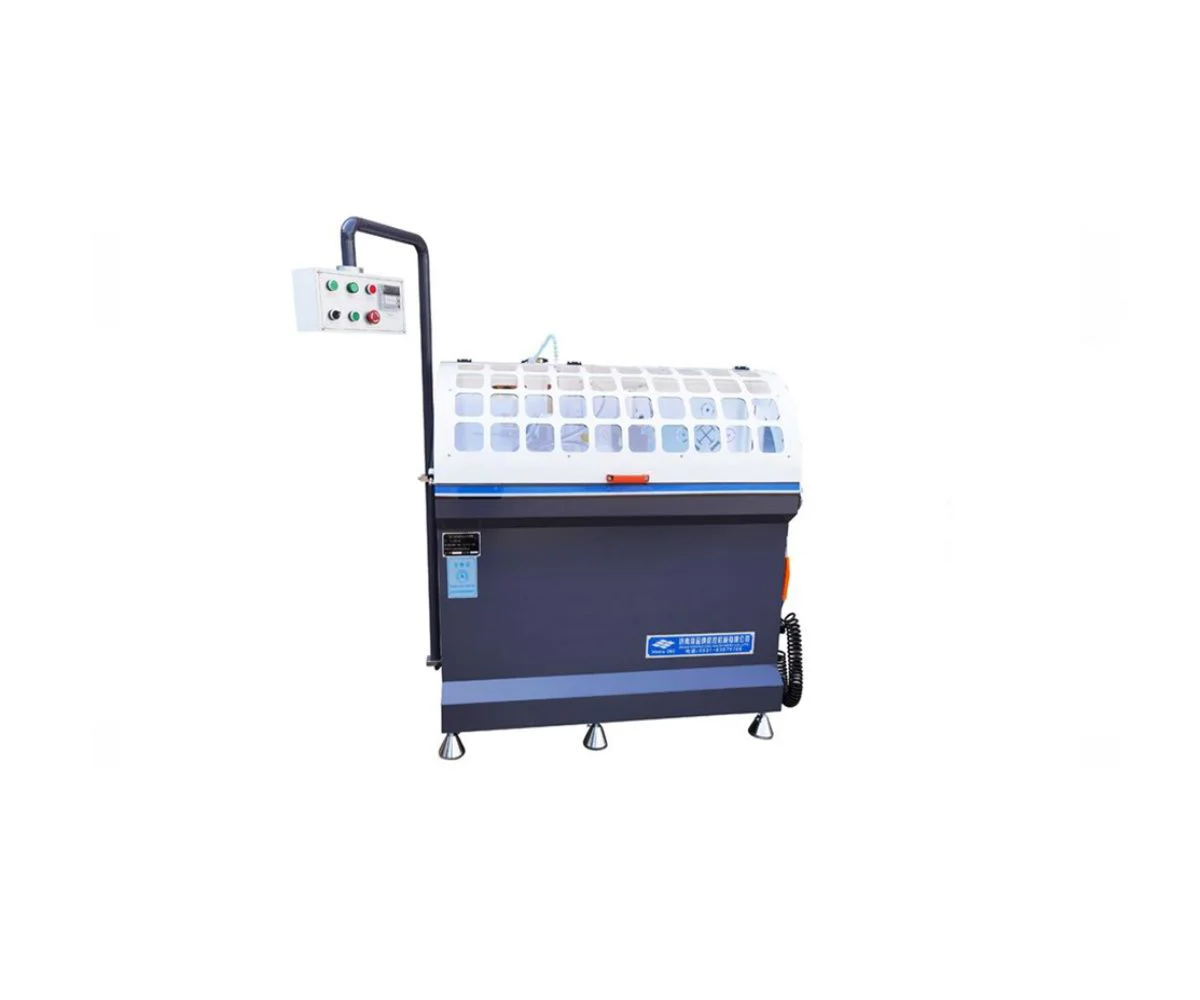

Corner Cleat Cutting Machine (LJZZ-100)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LJZZ-100|Power supply:380V/50Hz|Motor power:2*2 Kw|Spindle speed:2840 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:60 L/min|Blade size:Φ450×Φ30×δ4mm Z=120|Cutting angle:90°|Max. Cutting width:110 mm|Auto profile feeding length:3-180 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:1300x1400x1700mm|Weight:300KG
Description
1.Used for aluminum corner cleat profile cutting.
2.Saw blade feeding speed and travel adjustable ,adopt imported linear guide pair, with high accuracy smaller resistance .
3. Automatic feeding profile, cutting one profile each time .
4.Carbide saw blade ,dimension Ø450 mm, with Spraying cooling system .
5. Auto-opening guard shield ensured safety operation.
