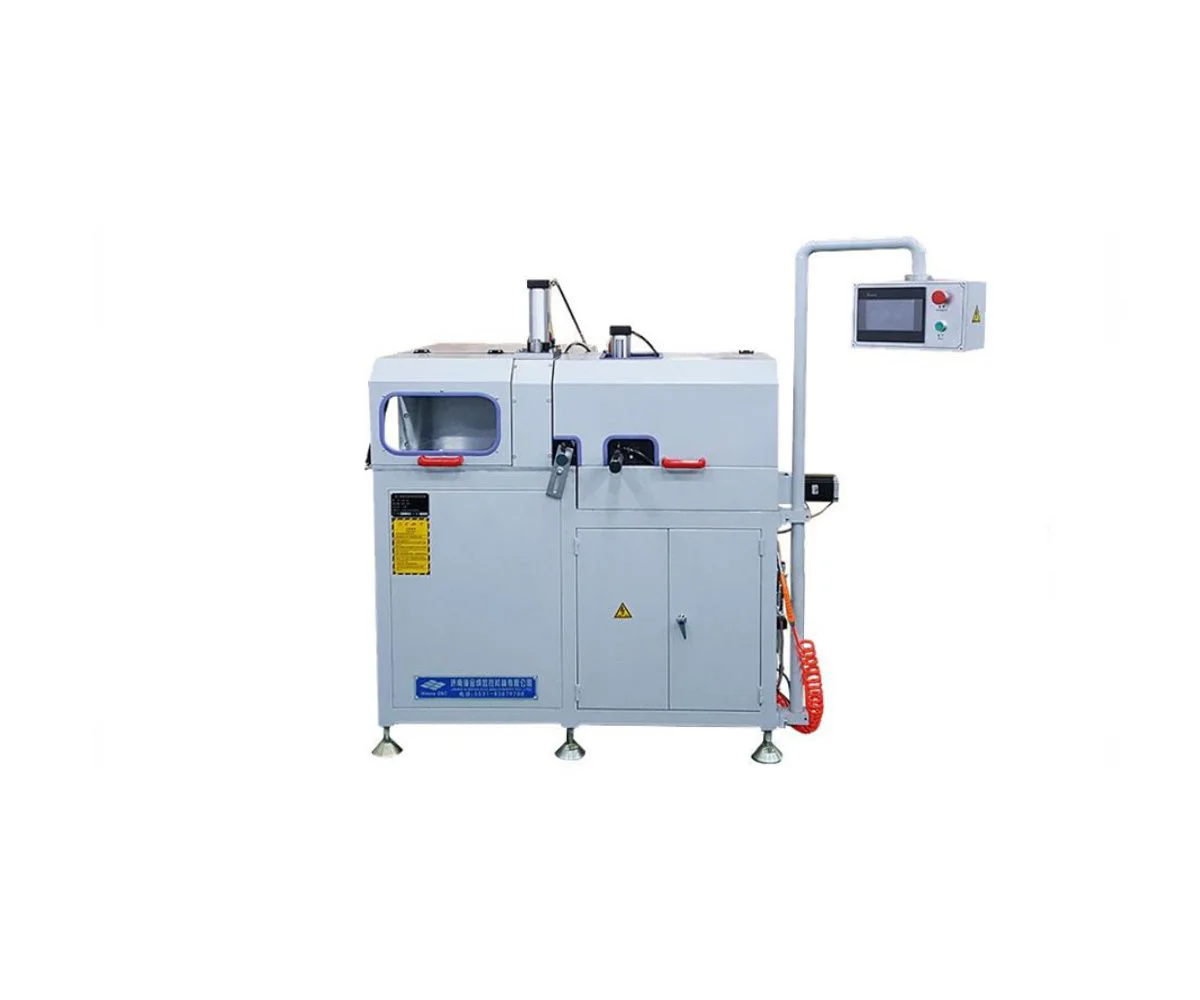

CNC Corner Cleat Cutting Machine (LJZS-150)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Details
Model:LJZS-150|Power supply:380V/50Hz|Motor power:3 Kw|Spindle speed:2840 r/min|Air pressure:0.5-0.8 Mpa|Air consumption:60 L/min|Blade size:Φ400 mm|Cutting angle:90°|Max. Cutting width:250 mm|Auto profile feeding length:3-300 mm|Angle cutting tolerance:±5′|Planeness:≤0.10|Roughness:Ra12.5 um|Machine dimension:1500x1500x1600mm|Weight:300KG
Description
1.Used for 90 degrees cutting for aluminum window corner cleat or other aluminum alloy profiles.
2.High working efficiency, long stroke(250mm),can process multi-piece profiles at one time.
3.Saw head feed speed and stroke adjustable.
4.An inclined hopper can be added at the discharge end for automatic collection.
5.CNC system.
6.Operation simple, Reliable performance, advanced technology, Easy maintenance.
