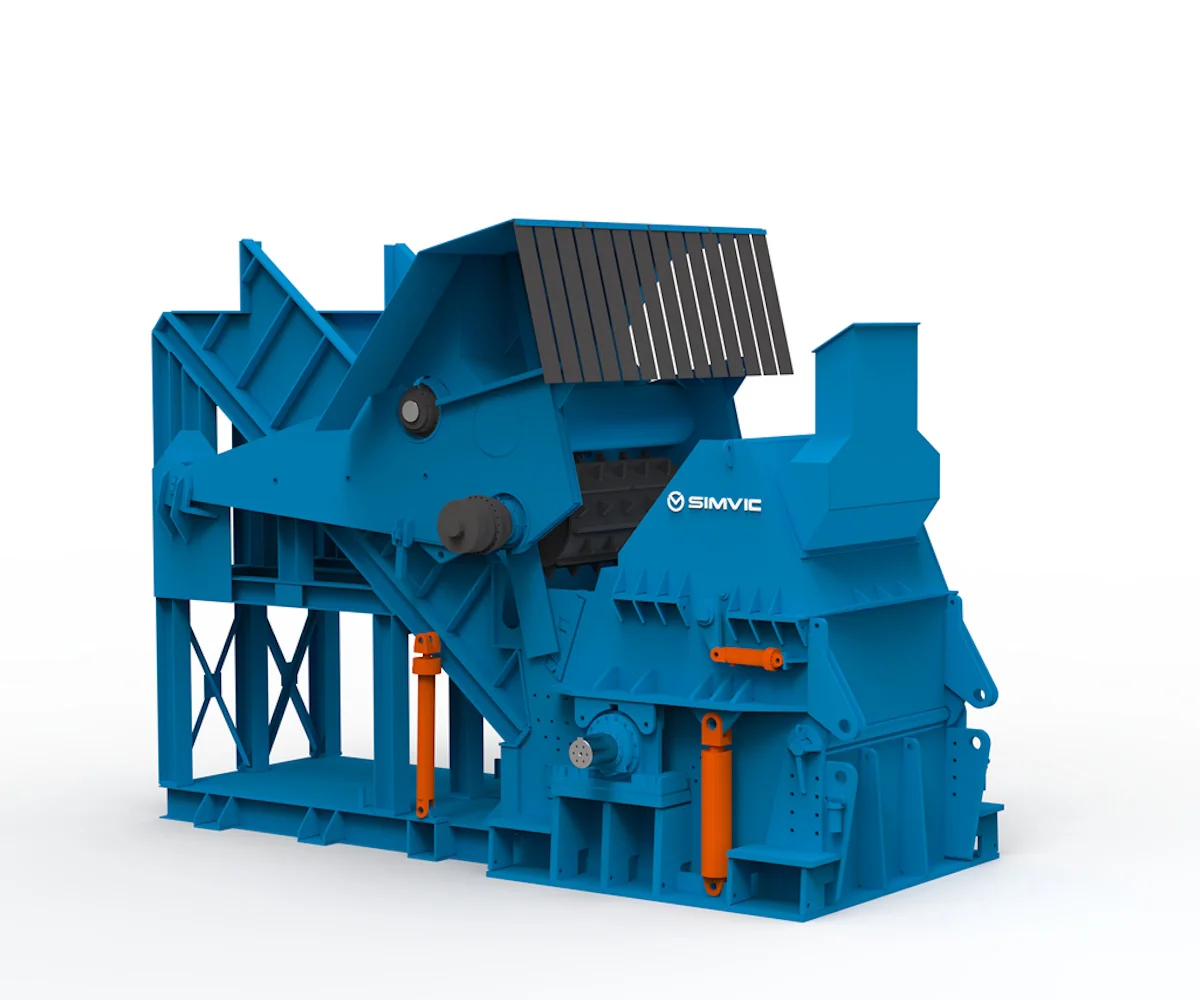

SHC-5070 Metal Shredder

The SIMVIC SHC-5070 Metal Shredder is a heavy-duty electric-drive shredding solution designed for high-intensity aluminium scrap processing, with a typical processing capacity of **10 TPH**. In aluminium recycling plants, it is suitable for both aluminium profiles and cast aluminium, where effective material liberation is essential for downstream separation and product quality.

Unlike shredding systems focused only on size reduction, the SHC-5070 is engineered to achieve thorough crushing and liberation, releasing aluminium from attached steel, plastics, rubber and other non-metal fractions. This creates more favourable material conditions for subsequent screening, magnetic separation, eddy current separation and sensor-based sorting.

The electric-drive system provides stable power transmission, efficient operation and controlled response to changing material loads. Combined with robust construction and an optimized shredding configuration, the system is designed for continuous industrial operation while helping optimize energy consumption per ton processed.

For aluminium profile and cast aluminium recycling, the SHC-5070 serves as a critical process stage between pre-processing and separation. By producing a more consistently liberated and processable material stream, it helps downstream equipment operate under more stable conditions and supports higher recovery efficiency and product purity.

Built around SIMVIC's System Engineering approach, the shredder can be integrated with feeding, screening, magnetic separation, eddy current separation and sensor-based sorting systems as part of a complete aluminium recycling plant.

Typical Applications:

• Aluminum profile recycling
• Cast aluminum recycling
• Automotive aluminum scrap
• Mixed aluminum scrap
• Aluminum scrap requiring high liberation efficiency

Processing Capacity:10 TPH

Typical Process Position:
Pre-Shredding → **SHC-5070 Shredding & Liberation** → Screening → Magnetic Separation → Eddy Current Separation → Sensor-Based Sorting
