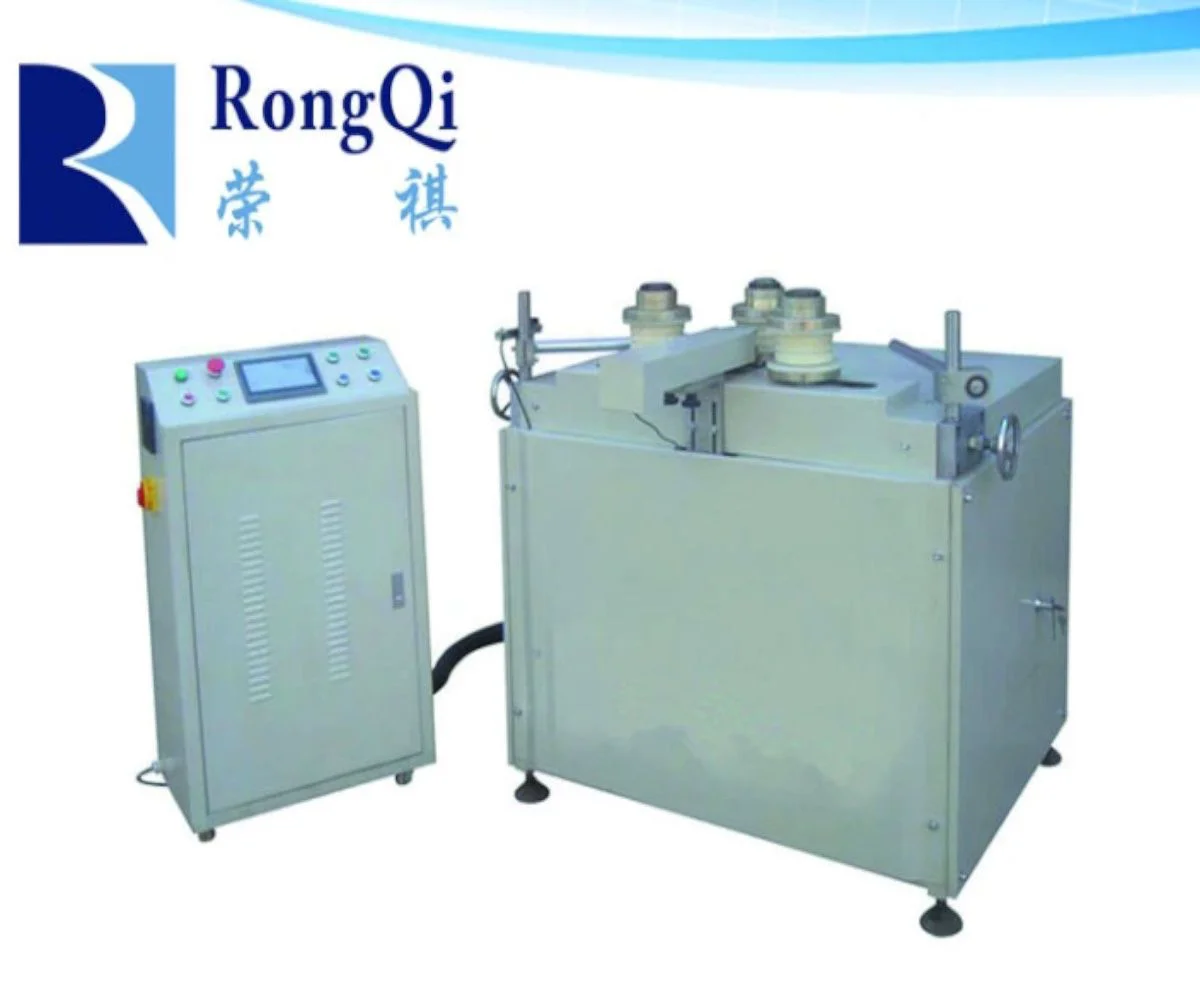

Aluminium Profile Bending Machine
By: Rongqi Machinery
CategoryExtrusion StretcherManufacturerRongqi MachineryMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
Features:
- Adopt four axis positioning system in domestic initiative, forming a closed space in the deformation area, max reduce the twist of profiles
- Imported CNC system, to precise calculate the size of arc. The error≤0.5 cm
- Hydraulic system adopt to advanced CNC technology and hydraulic control system, the precision≤0.02 mm
- Develop low pressure self-test rebound system, better remove the rebound
- Can easy operation for C type, U type, Oval, Circle, etc
| Input Power | 3kw |
| Power Supply | 380 50Hz |
| Air Pressure | 0.4—0.8Mpa |
| Oil Pressure | 20T(200Mpa) |
| Roller Axis Speed | 1—8r/min |
| Min Arc Radius | 170mm |
| Max Roller Die Diameter | 200mm |
| Roller Axis Diameter | 80mm |
| Fixed Wheel Center Distance | 330—750mm |
| Upperwheel Positioning Accuracy | 0.02mm |
| Max Upperwheel Jouney | 280mm |
| Overall Dimension | 1200*1100*1100 |
| Weight | 1000kg |
