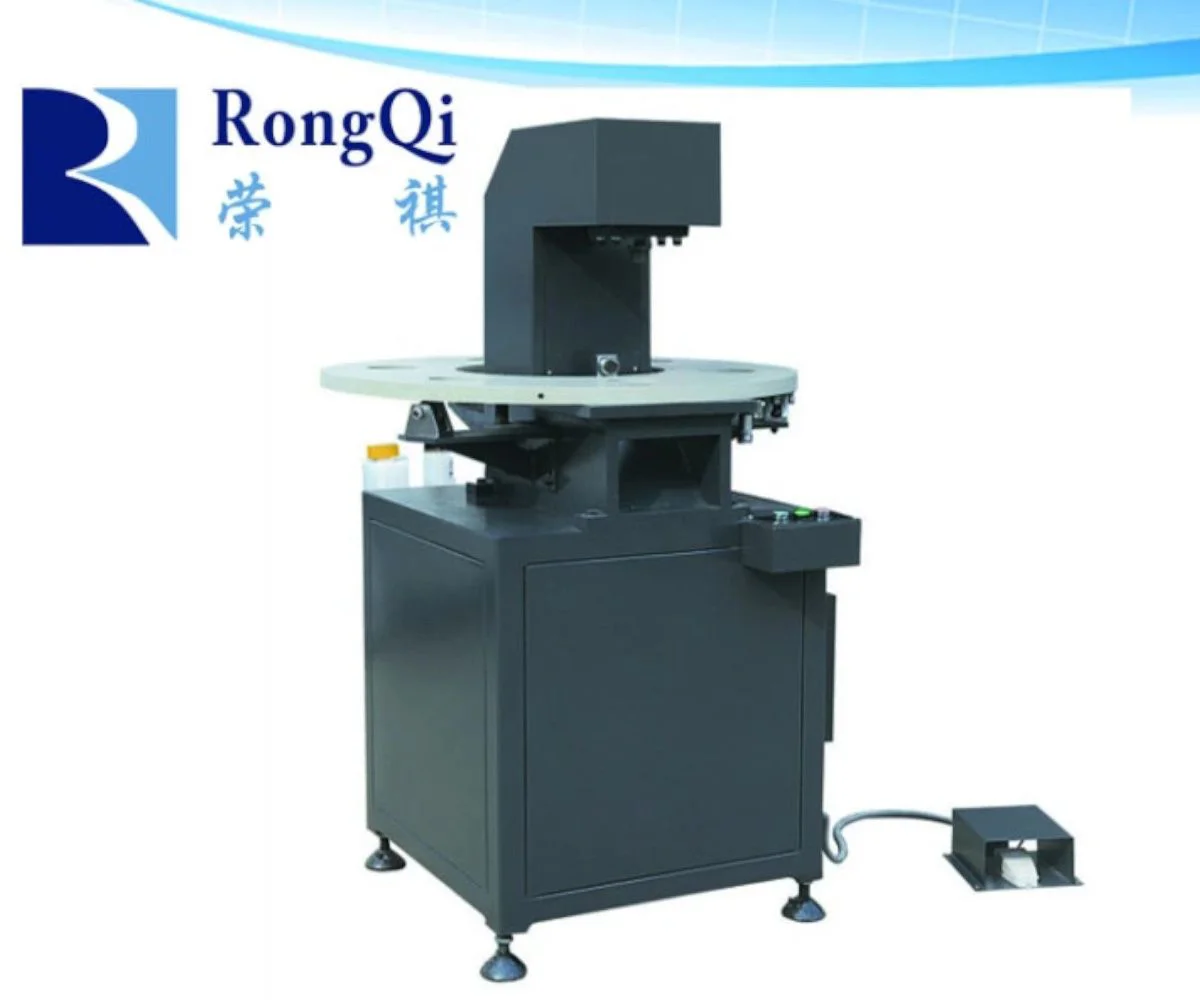

Aluminium Window Fabrication Profile Pressing Machine
By: Rongqi Machinery
CategoryExtrusion PressManufacturerRongqi MachineryMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
Features:
- For different kinds of holes punching
- Rotating work table can be installed with six sets of dies
- Single position die can be designed and installed easily
- Hydraulic drive,great power for special kinds of holes
- Openside design,easy operation
| Input power | 2.2KW |
| Power supply | 380V/50Hz |
| Rated pressure | 15MPa |
| Capability of oil box | 20L |
| Press nominal pressure | 50KN |
| Closing height | 185mm |
| Punching travel | 30mm |
| Die Size | 250*200*215 |
| Overall dimension | 1000*1200*1700 |
| Weight | About 550kg |
