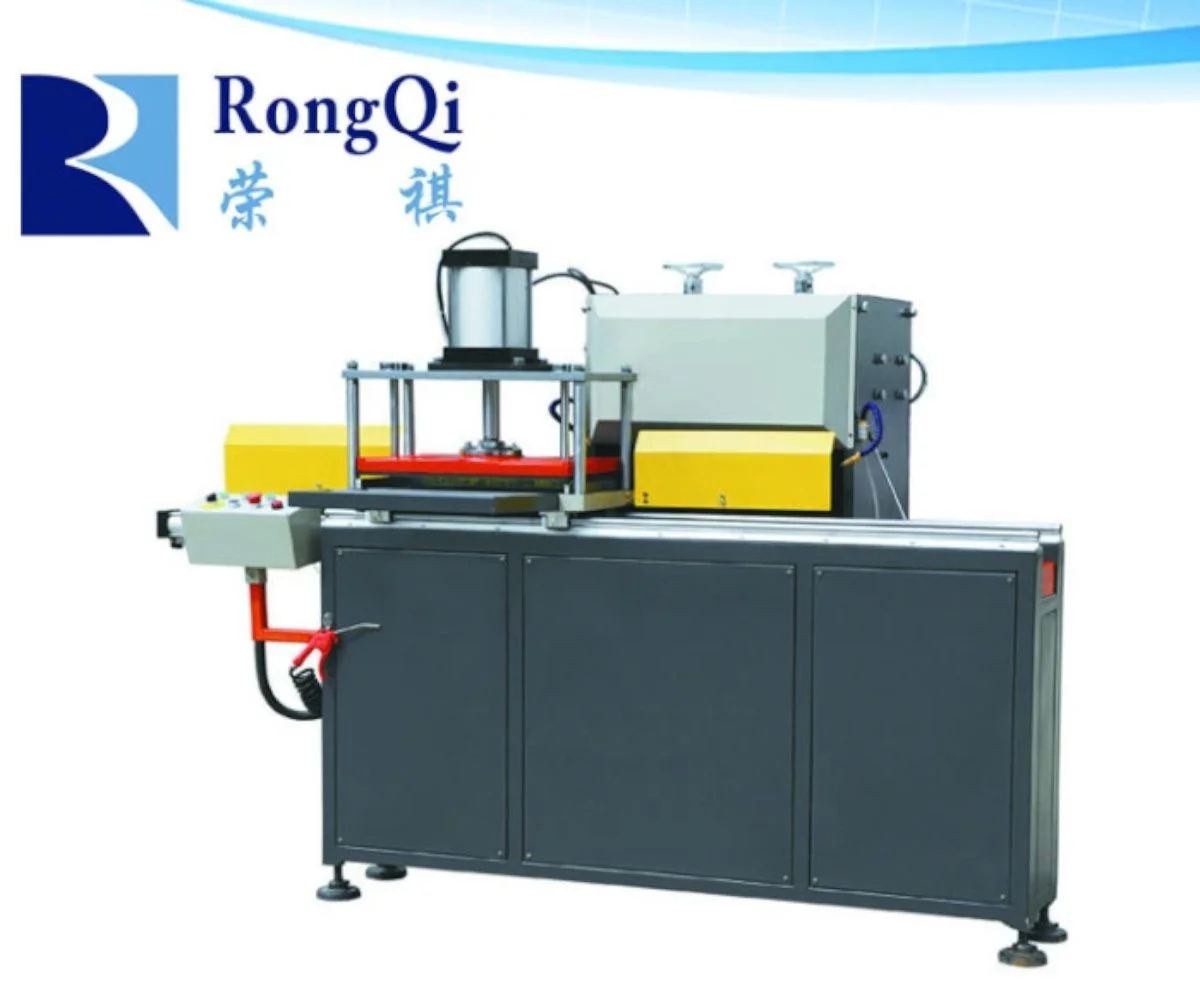

Industrial End Milling Machine for Aluminium Profile Window and Door
By: Rongqi Machinery
CategoryProfile Cutting EquipmentManufacturerRongqi MachineryMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
Features:
- Used for aluminum profile and suitable for various profiles.Clamp one time can processing multi-piece profiles,whcih increased the processing efficiency
- Universal milling blades can be adjusted in up/down left/right directions and not made extra,which to fit for different processing requirement and ensure the efficient working
- Convenient tool adjustment to meet different processing requirement,need not ordering tools when process various profile,thus candecrease cost and save time
- Adopted the electrical motor protect device to improve the safety
Technical Parameter :
| Power supply | 380V/50Hz |
| Input Power | 3*2.2kw |
| Cutting motor rotary speed | 2800r/min |
| Operation air pressure | 0.6-0.8Mpa |
| Main spindle diameter | Φ32mm |
| Diameter of the milling cutter | Φ250mm |
| Journey of the worktable | 0-1050mm |
| Max Open Tenon | 40mm |
| Cutter adjustment | 85mm |
| Contour dimension | 2400mm*1250mm*1900mm |
| Weight | 650kgs |
