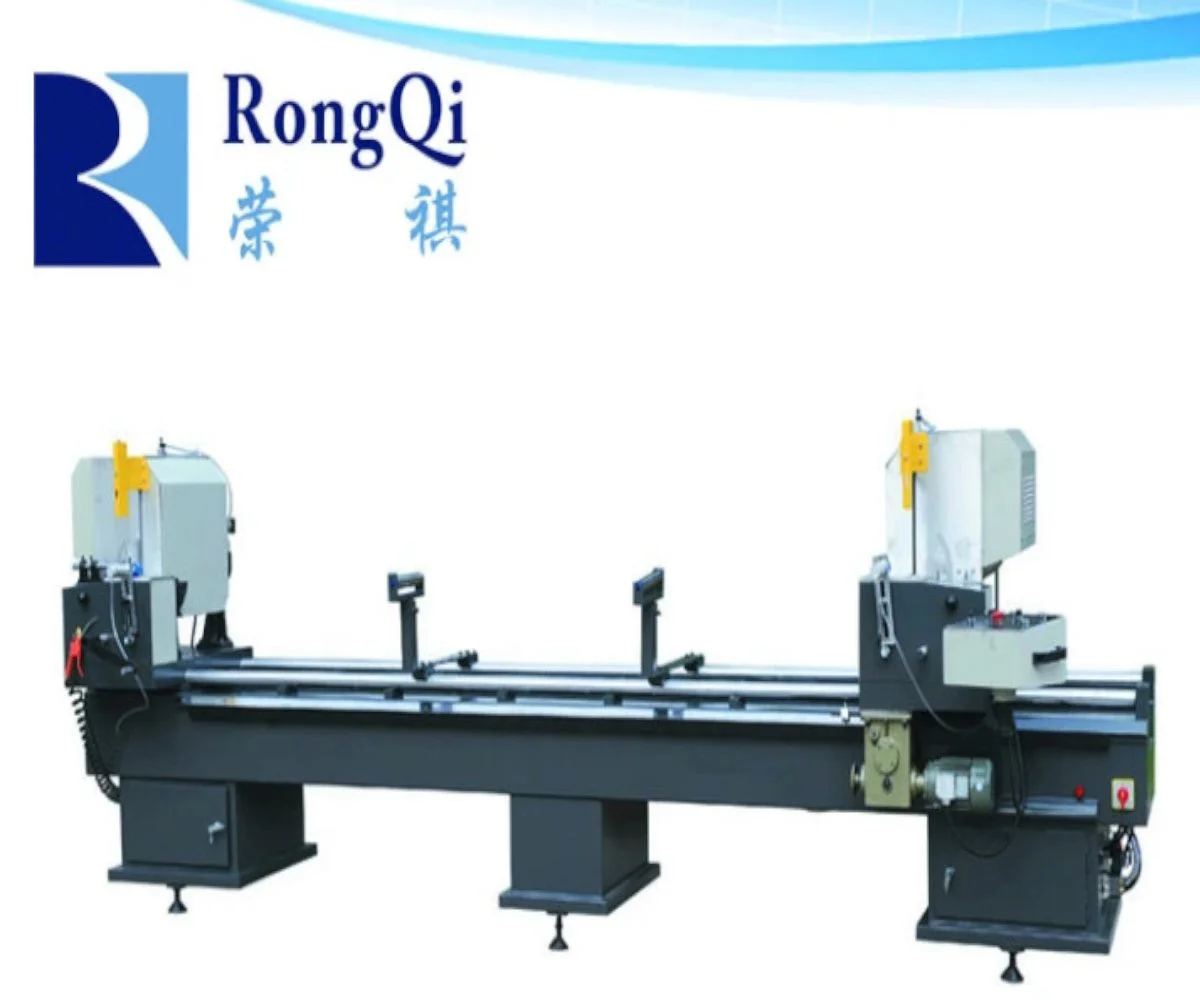

Aluminium Double Mitre Saw
By: Rongqi Machinery
CategoryProfile Cutting EquipmentManufacturerRongqi MachineryMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
Features:
- Imported computer control system with the automatic measuring function
- Using ball bearing to keep the high precision
- Adopt the size compensation function and it can achieve high repeated location precision
| Power supply | 380V 50Hz |
| Power | 2x1.5kw 2800r/min |
| Operation air pressure | 0.5-0.8Mpa |
| Motor speed | 2840r/min |
| Blade specification | Φ350xΦ3.0x30mm |
| Cutting width | 200mm |
| Cutting length | 400-3700mm |
| Repeated locating length tolerance | ±0.2mm |
| Cutting profile surface plane | ≤0.10mm |
| Cutting angle tolerance | ±5' |
| Cutting profile surface roughness | Ra12.5µm |
| Contour dimension | 4600mm*1300mm*1550mm |
| weight | 1800kgs |
