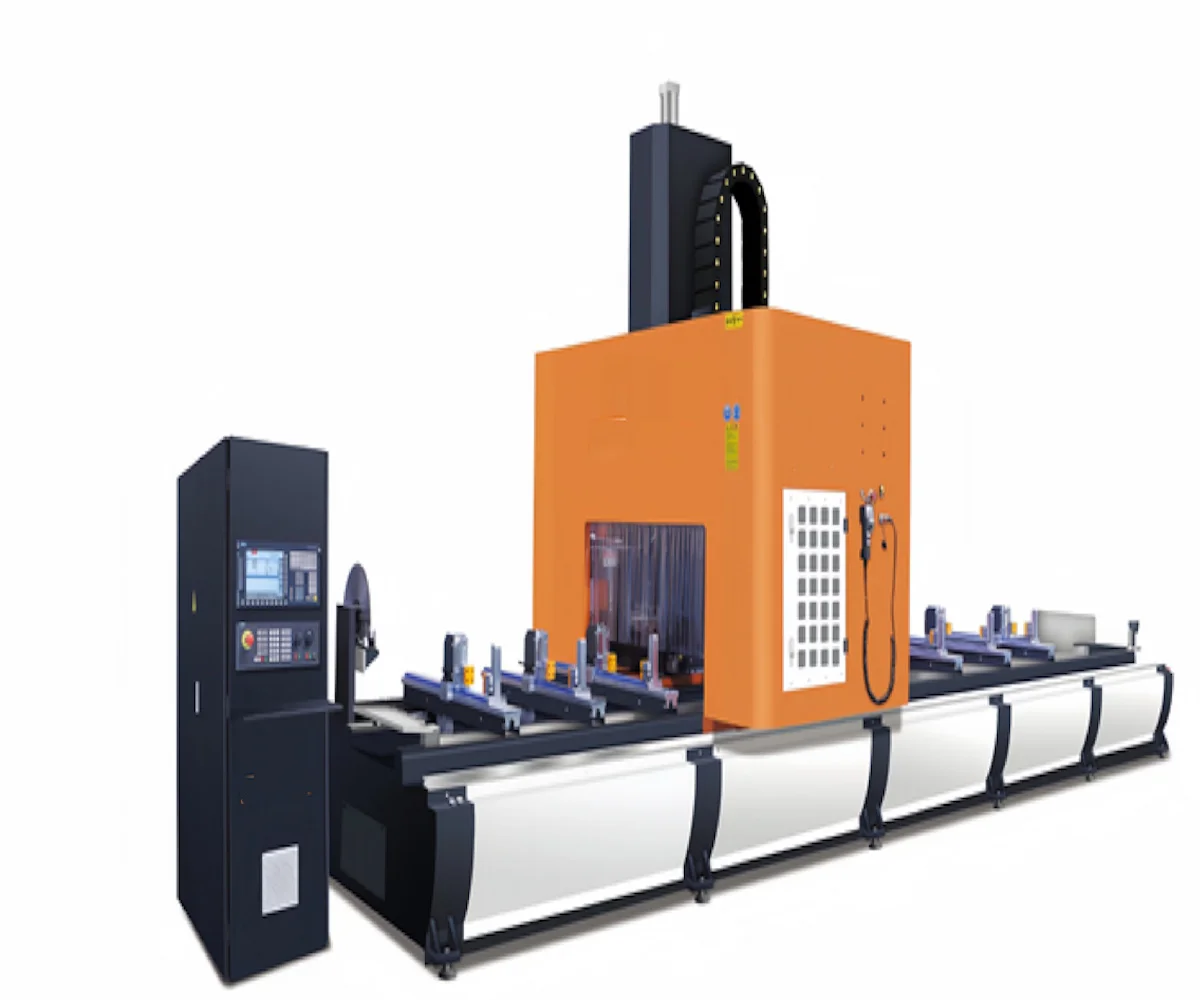

5-Axis Multi Function CNC Profile Machining Center

This 5-axis Multi-Function CNC Profile Machining Center with Gantry-type Double-drive Six-track Structure is applicable for 5-sided high accuracy complicated processing of aluminium metal profiles with one-time clamping, the Gantry Dual Servo Drive Structure and the gantry beam driven by the linear motor not only have high-speed and high-precision positioning characteristics, but also ensure high rigidity during processing, allowing the heavy and high-precision processing to be performed on the same machine easily, providing extremely high efficiency for product processing. At the same time, it can complete 5-sided and multiple spatial directions processing of multiple milling, drilling, cutting, tapping and others with one clamping only, which furtherly improves the high precision, stability and efficiency.

It adopts Creative Design Concepts and Production Technics in accordance with German High Standards and continuous optimization and equips 12KW powerful spindle with fast umbrella type servo 8 tools magazine and 1 saw blade of 350mm for large and flexible processing,it can process at any angle and direction in 5 axis and it can also realize 6-side machining from below with an optional angle head, and it’s professional in complicated processing and high accuracy with one-time clamping on regular and irregular profiles.

It adopts Germany Siemens 5-Axis Professional Industrial system with easy operated Man-Machine Conversation Interface, and creatively additional Onustec Power Cam to edit program with DXF files, Step files transfer to the NC System.

It adopts Casting Machine Head and Casting Clamping Device, as well as Famous High Precision Spindle,Reduer,Ball Screw,Gear Rack and Pinion,Linear Guide, specially our powerful professional well trained assembly engineering technics,which ensures the big processing range for large and compound shaped&curve profiles and the machine high precision for high standard processing requirements.



Machine Characteristics:
•    5-axis cnc profile machining center
•    Designed for economical and efficient machining of aluminium and thin-walled steel profiles
•    All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces
•    Composite angle cutting, drilling and milling can be performed on double-arc special-shaped materials, which solves the processing problem of special-shaped materials for doors, windows and curtain walls
•    6-side machining. From below with an angle head (optional)
•    Equipped with 8 tools+1 big saw blade alongside umbrella tool magazine allows fast machining and short tool changing time, thus optimizing the machining cycles
•    Auto clamp avoidance system avoids spindle collision during side processing, and at the same time meet the cycle processing of various materials;
•    The A-axis can process at any angle of ±185°, and the C-axis can process at any angle of ±320°.
•    Advanced German 3D map Power Cam programming software and digital unmanned factory management software interface are selected to realize paperless automatic programming operation.
•    High-precision grinding stable and durable gear rack and pinion,ball screw,linear guide ensures smooth and accurate machining.
•    Creative dual industrial operation system and windows operation system for convenient and more option operation
•    Electronic light curtain protection for operator’s safety
•    Two separate working zones enable machining in shuttle operation (optional)
•    Convenient PC, USB ports and network connection
•    Automatic Central Oil Lubrication System
•    Protection Door
•    Light Curtain Sensor
•    3-Color Warning Lamp
•    Handle Wheel Remote Controller



Options
•    Shuttle operation for working on two sides
•    Angle routing head for machining from below
•    Automatic tool sensor and length measurement
•    Auto Chips conveyor system
•    Barcode scanner
•    Label printer
•    Tool holders
•    Collet chuck
•    Saw head
•    Tools
