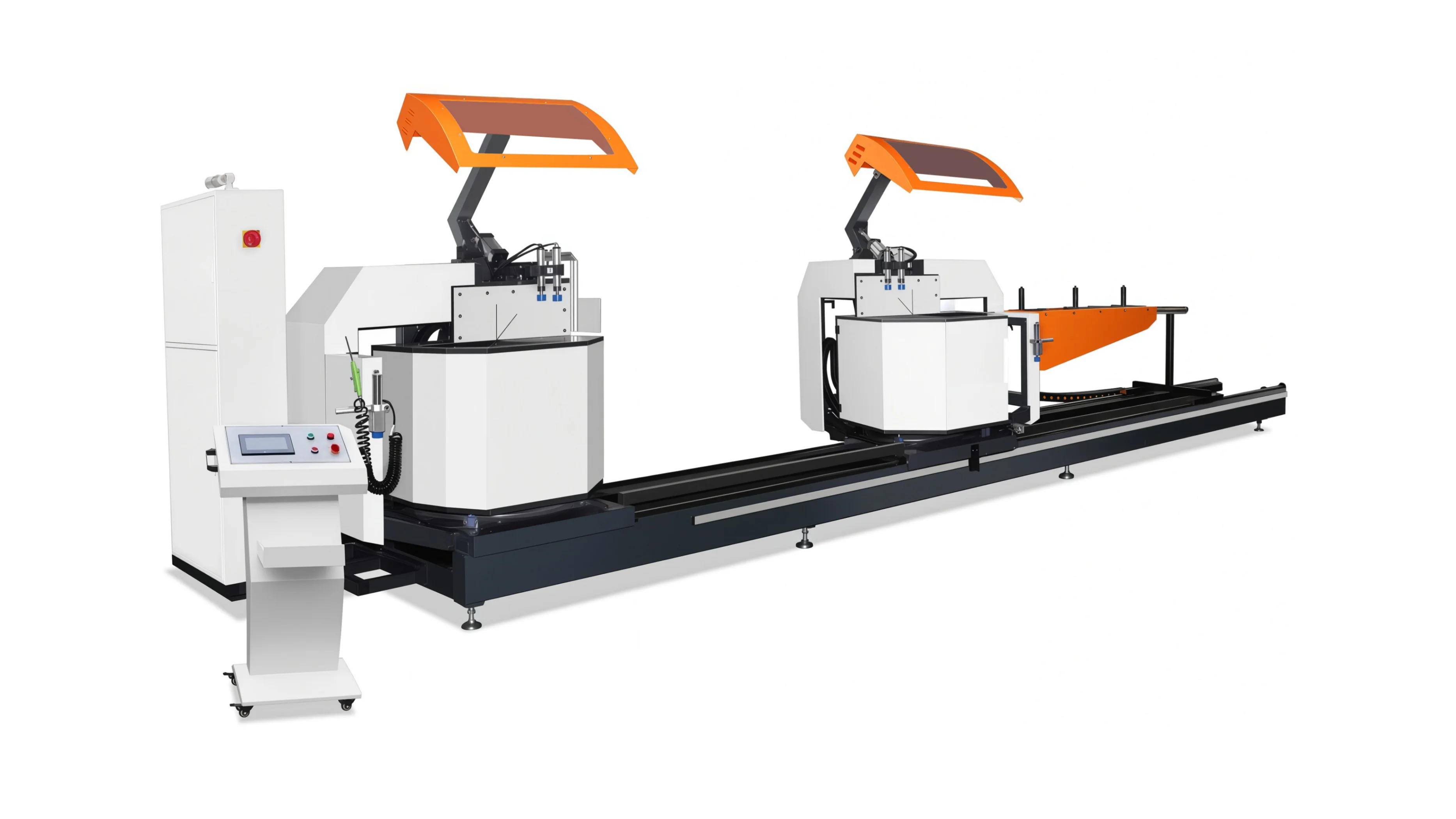

7-Axis Compound Angle CNC Double Mitre Saw

This creative patent 7-axis Compound Angle CNC Double Mitre Saw is applicable for compound angle cutting of aluminum metal profiles, it adopts creative German design concepts and production technics in accordance with German high standards.

It has 2 more axis servo system for smooth and stable blades feeding besides the normal 5-axis coumpound angle CNC Double Mitre Saw,it solves the blades vibration and stairs problem of cutting sections by pneumatic cylinder feeding.

It adopts easy operated man-machine conversation interface,casting machine base, as well as famous high precision components, it’s assembled by the powerful professional engineering team that well trained by German experts, which ensures the wide processing range for large and complicated profiles and high precision of high end processing requirements.

It can realize two cutting angles by tilting from 90°to 45°and bigger pivoting from 22.5°to 150°, and the 7 accurate servo driving system ensures the high precision and efficiency, it’s suitable for complicated cutting for different industries,including facade,electric cars and other industrial applications.



Features:

•    The reliable German principle “Cutting from below”
•    High efficient cuts possible for all variant cutting
•    Ideal machine for high-volume series production for compound angle cutting
•    A large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations
•    Automatic tilting angle from 90°to 45°meets your variant cutting angle requirements
•    Large pivoting angle from 22.5°to 150°meets your variant complicated cutting requirements
•    Equipped high precision linear guide and servo driving system as standard
•    Liquid mist diffuser coolant system for aluminium machining
•    Equipped with saw blades and safety hoods as standard
•    Equipped with CNC system and touching screen as standard
•    Super cutting functions meet your special requirements for extremely length materials
•    Automatic cutting function meets your straight repeat length cutting requirements
•    Equipped 7 accurate servo motors and drivers to ensure your efficient production
•    Horizontal and vertical pneumatic material clamping units
•    2x3.0KW motors for fast and thick profile bar cutting
•    600mm dia. blades provide bigger cutting range
•    Optimized protection shields as standard
•    Hydro-pneumatic feeding as standard



Cutting Length Variants

•    4,500 mm
•    6,000 mm
•    7,500 mm
•    Additional lengths on request



Options

•    Saw blades
•    Safety fence
•    Label printer
•    Roller conveyor
•    650mm blades
•    Material clamping units
•    Mobile workpiece support
•    Super short cutting function
•    Stationary and/or travelling roller conveyor
•    Additional software of optimized cutting function
•    High performance cutting fluid for aluminium machining



Technical Data:

Max. Cutting Length	6000mm
Max. Cutting Width	400mm
Max. Cutting Height	170mm
Table Pivoting Angle	22.5-150° (Servo Driven)
Blade Tilting Angle	45-90° (Servo Driven)
Accuracy	±0.1mm
Blade Diameter	600mm×2
Cutting Motor	4.0KW×2
Pivoting Servo Motor	750Wx2
Blades Tilting Servo Motor	400Wx2
Blades Feeding Servo Motor	750Wx2
Length Servo Motor	750Wx1
5 Brake Servo Motors	750W×5/400W×2
Total Power	12.55KW
Voltage	3Phase,380V/415/220,50Hz or Custom-made
Working Air Pressure	0.6Mpa-0.8Mpa
Machine Dimension	8050x1550x1800mm
Machine Weight	3300kg
