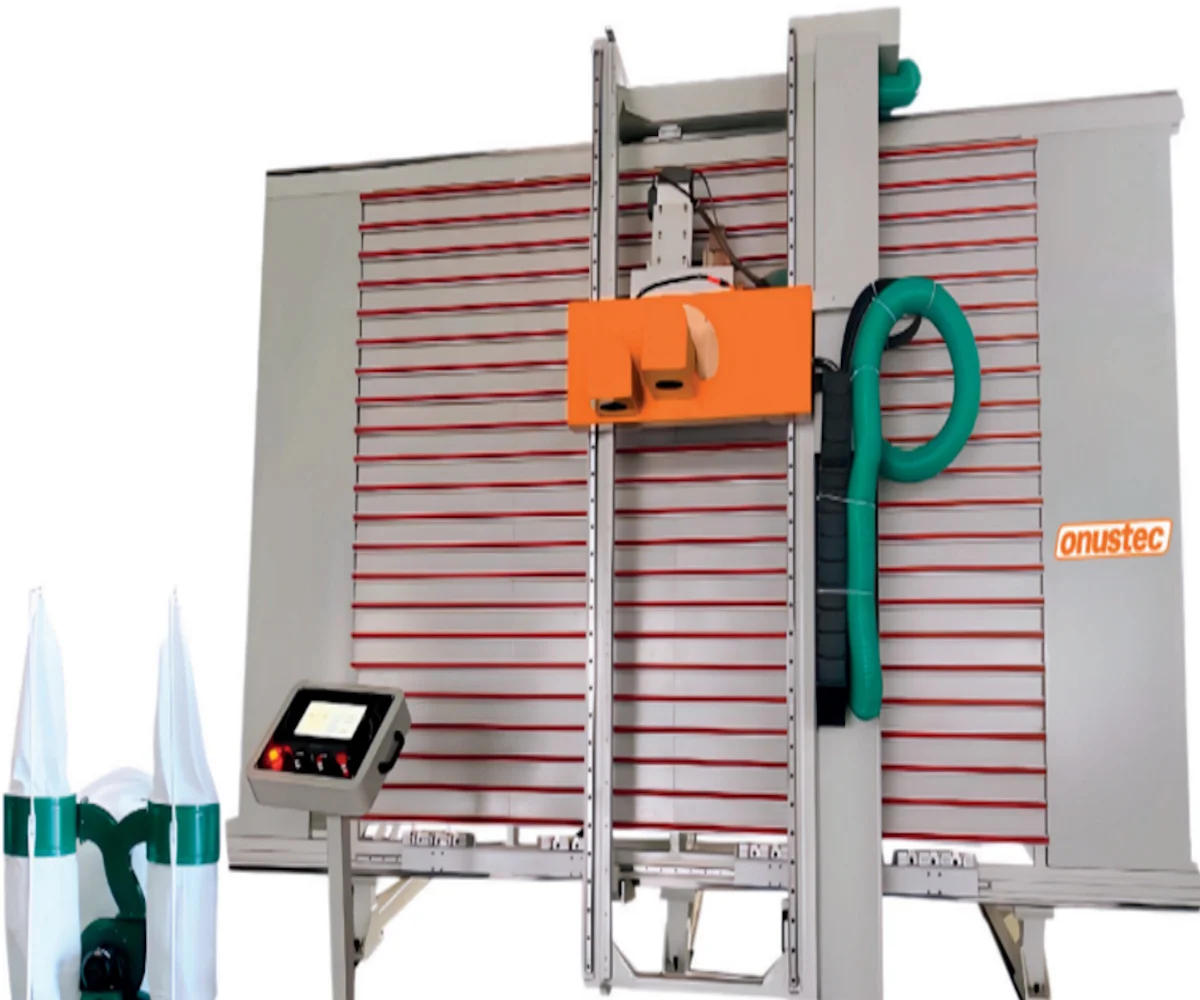

VP421C CNC Vertical Panel Saw

The VP421C CNC Vertical Panel Saw delivers efficient, precise cutting and grooving of aluminium, wood and PVC sheets and panels. Its horizontal and vertical processing capabilities make it well suited for high-volume production.



Key Features:



• High-efficiency grooving and cutting for varied machining of aluminium, wood and PVC sheets and panels
• Suitable for high-volume series panel production involving horizontal and vertical grooving and cutting
• Supplied with two grooving blades and one cutting blade as standard
• Safety hoods and a safety sensor are included as standard
• Convenient lift lever and movable step roller are included as standard
• 3.0 kW motor with adjustable speed from 0 to 6,000 rpm
• Maximum cutting depth of 50 mm and maximum grooving depth of 8 mm
• 250 mm diameter grooving and cutting blades for flexible panel processing



Technical Specification:



Specification	Value
Model	OT-VP421C
Machine type	CNC Vertical Panel Saw
Grooving and cutting length	4,000 mm
Grooving and cutting height	2,150 mm
Rectangular diagonal deviation formed by two horizontal and two vertical grooves	>2,000 mm: <=2.5 mm
Maximum grooving depth	8 mm
Cutting depth	0-50 mm
Grooving blade diameter	250 mm x 2
Cutting blade diameter	250 mm
Motor power	3.0 kW
Adjustable motor speed	0-6,000 rpm
