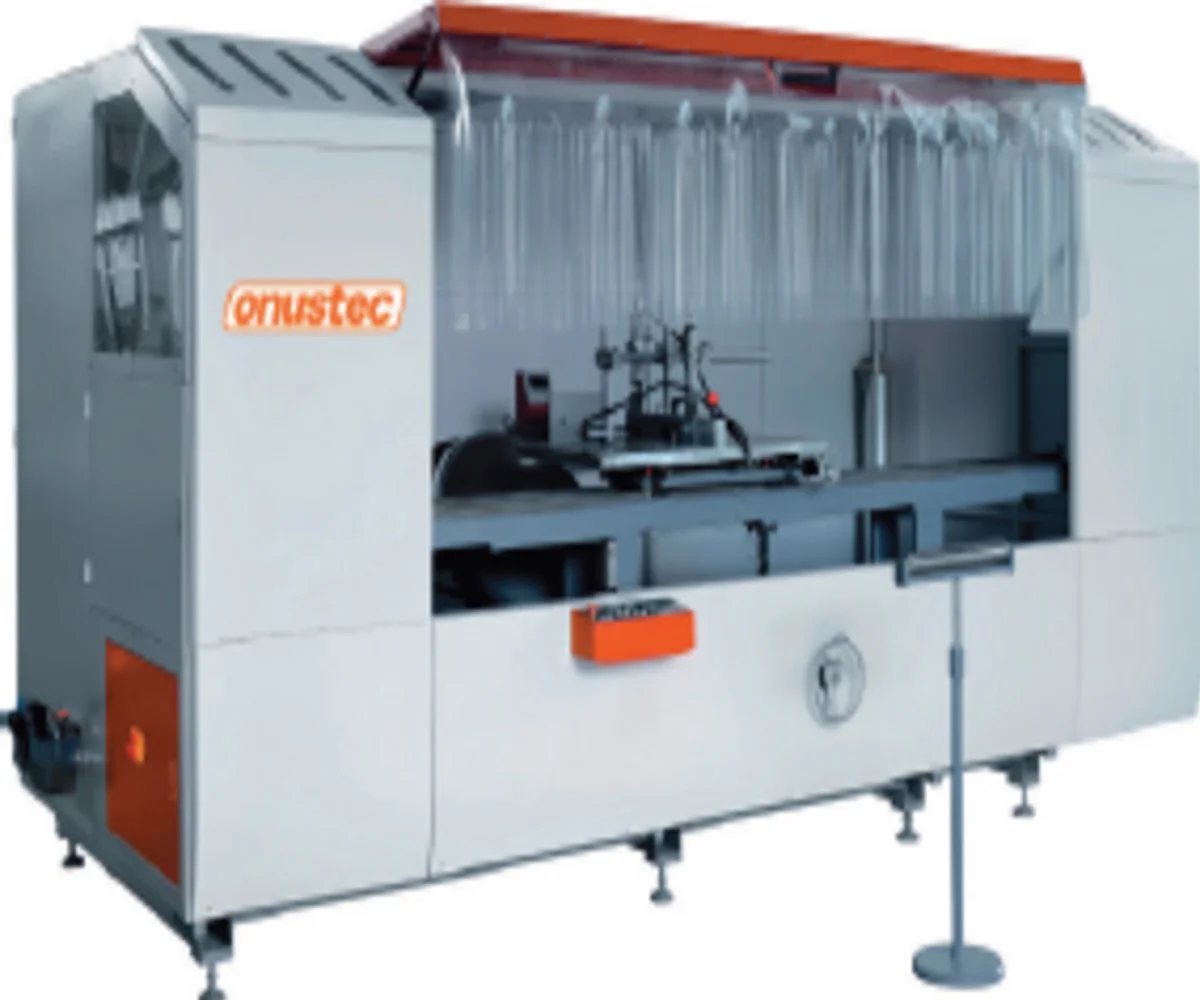

Digital Display Multi Angle Notching Saw

The N550D digital display multi-angle notching saw enables precise multi-angle cutting, with digitally adjustable cutting and table-pivot angles ranging from –45° to +45°. It supports workpieces up to 260 mm wide, 210 mm high and 150 mm deep.



Key Capabilities:



• Digital cutting-angle adjustment through +/-45 degrees.
• Digital table-pivoting adjustment through +/-45 degrees.
• Two 3.0 kW cutting motors operating at 2,860 rpm.
• Specified cutting accuracy of +/-0.1 mm/m.



Technical Specification:



Specification	Value
Model	OT-N550D
Machine type	Digital Display Multi Angle Notching Saw
Maximum cutting width	260 mm
Maximum cutting height	210 mm
Maximum cutting depth	150 mm
Cutting angle	+/-45 degrees, digital
Table pivoting angle	+/-45 degrees, digital
Blade diameter	550 mm + 500 mm
Cutting motor	3.0 kW x 2
Motor speed	2,860 rpm
Accuracy	+/-0.1 mm/m
Air consumption	55 L/min
