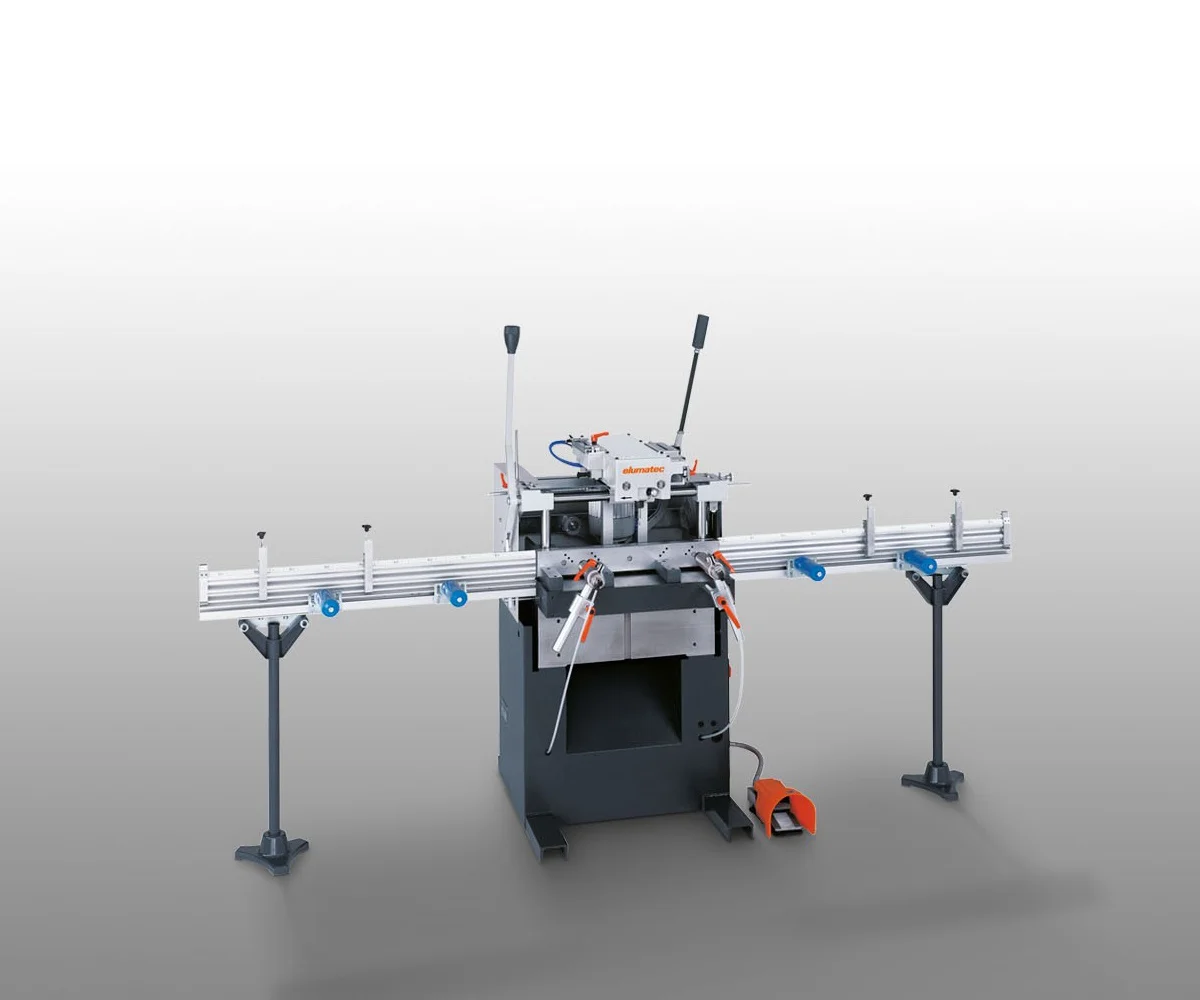

1-spindle copy router AS 170

Specification -

• Large cutting range despite compact design
• Copy routing using side stops or templates at a ratio of 1:1
• Pneumatic tracer point with two levels for two different cutter diameters
• Our patented copy lever suspension ensures precision routing with a minimum of effort
• The table height is adjustable to accommodate very high profiles of up to 400 mm
• The “Spindle Lock” feature makes tool changing easy
• Pneumatic material clamping unit
• Pulsed coolant system

Options -

• Copy templates
• Copy template blanks
• Tracer points
• Collets
• Stop systems
• Material clamping units
• Cutting tools
• High-performance cutting fluid

Technical Data -

• Horizontal cutting range using a stop 300 x 120 mm
• Horizontal cutting range using a copy template 285 x 110 mm
• Spindle speed 12,000 rpm
• Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm
• Travel 105 mm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 0.74 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 12 l without spraying, 24 l with spraying
• Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg
