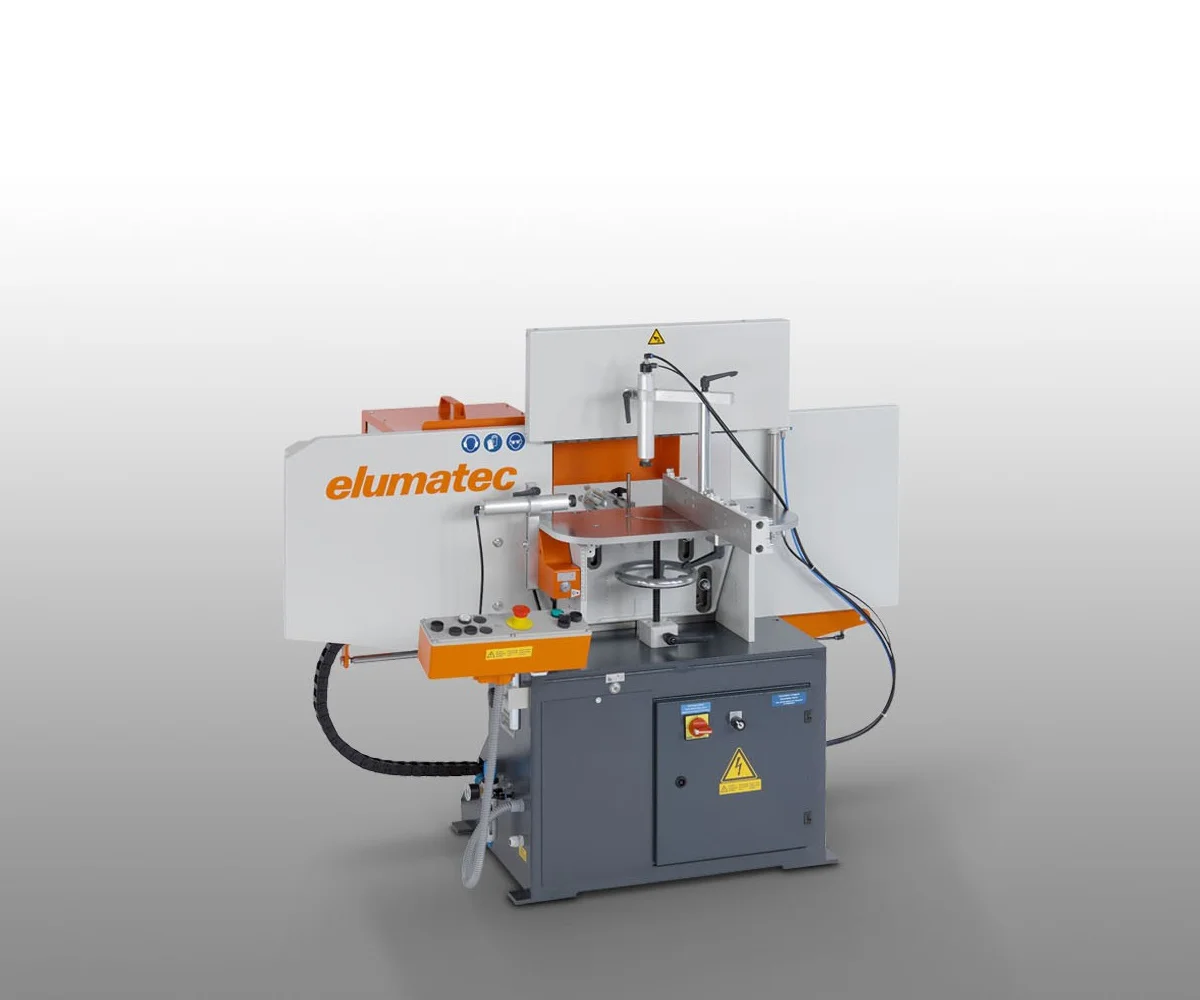

End milling machine AF 223

Specification -

• For machining transoms and door profiles made of aluminium or plastic
• Automatic work sequence
• Large cutting range of up to 400 mm
• Continuously adjustable table height
• Tool diameters of up to 280 mm can be used
• The material stop can be pivoted up to 60° to the left and right. Notching up to 30° (acute angles, left and right). Detent at 90° with index pin.
• Two installation positions for the material stop
• With quick tool change system and "Spindle Lock" for easy tool changing
• Precise, smooth-action and low-wear recirculating ball guides
• Horizontal and vertical pneumatic material clamping provides flexibility
• Depth stop for four different notching depths
• Pulsed coolant system
• Automatic safety curtain

Options -

• Extraction system
• 4-fold turret stop for table height
• Digital display
• Cutting tools
• High-performance cutting fluid

Technical Data -

• Cutting tool diameter max. 280 mm
• Cutter bore 40 mm
• Max. profile height 200 mm
• Cutting height 145 mm
• Cutting depth 110 mm
• Cutting length 400 mm
• Spindle speed 2,800 rpm
• Travel 550 mm
• 2.5 kW of power at 400 V / 50 Hz
• Compressed air supply 7 bar
• Power output 2 kW
• Air consumption per working cycle 15 l without spraying, 25 l with spraying
• Length 1,540 mm, depth 905 mm, height 1,000 mm, weight 280 kg
