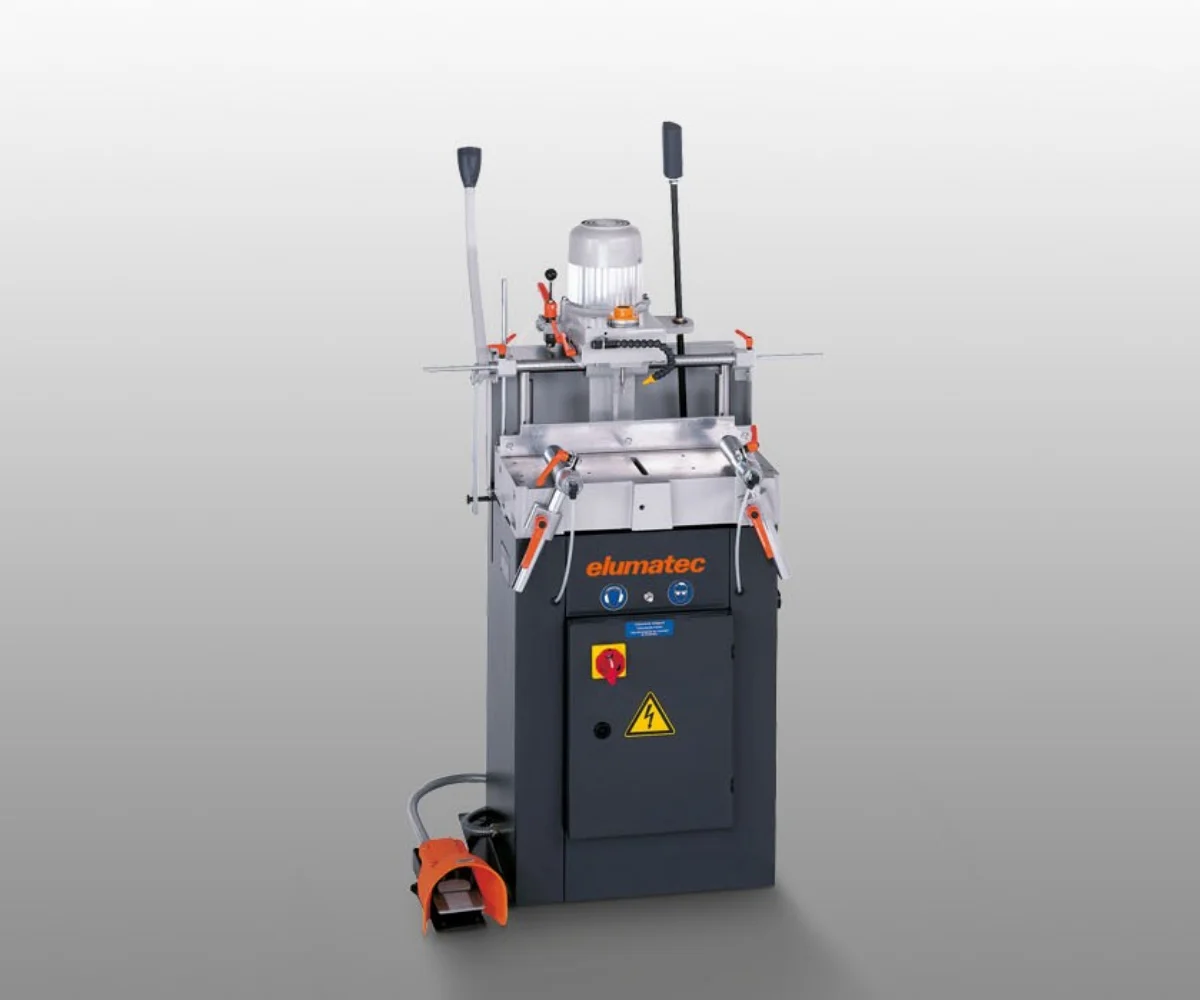

1-spindle copy router AS 70

Specification -

• Versatile for many applications in aluminium and PVC profile machining
• Precision routing with a minimum of effort and easy, two-lever operation
• Copy routing at a ratio of 1:1 transfers the cutting pattern from a template to the profile
• Your own custom templates can be created (by copying the template to a blank)
• Copy routing using stops is also possible (only rectangular cutting patterns)
• Can be set up in only a few steps
• Pneumatic material clamping unit
• Manual tracer point with three levels for different cutter diameters
• Pulsed coolant system

Options -

• Copy templates
• Collets
• Stands and guide bars
• Workpiece supports and stops
• Material clamping units
• Cutting tools
• High-performance cutting fluid

Technical Data -

• Horizontal cutting range using a stop 230 x 90 mm
• Horizontal cutting range using a copy template 230 x 90 mm
• Spindle speed 12,000 rpm
• Clamping range for profiles 180 x 130 mm
• Travel 110 mm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 0.74 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 12 l without spraying, 24 l with spraying
• Length 720 mm, depth 650 mm, height 1,440 mm, weight 120 kg
