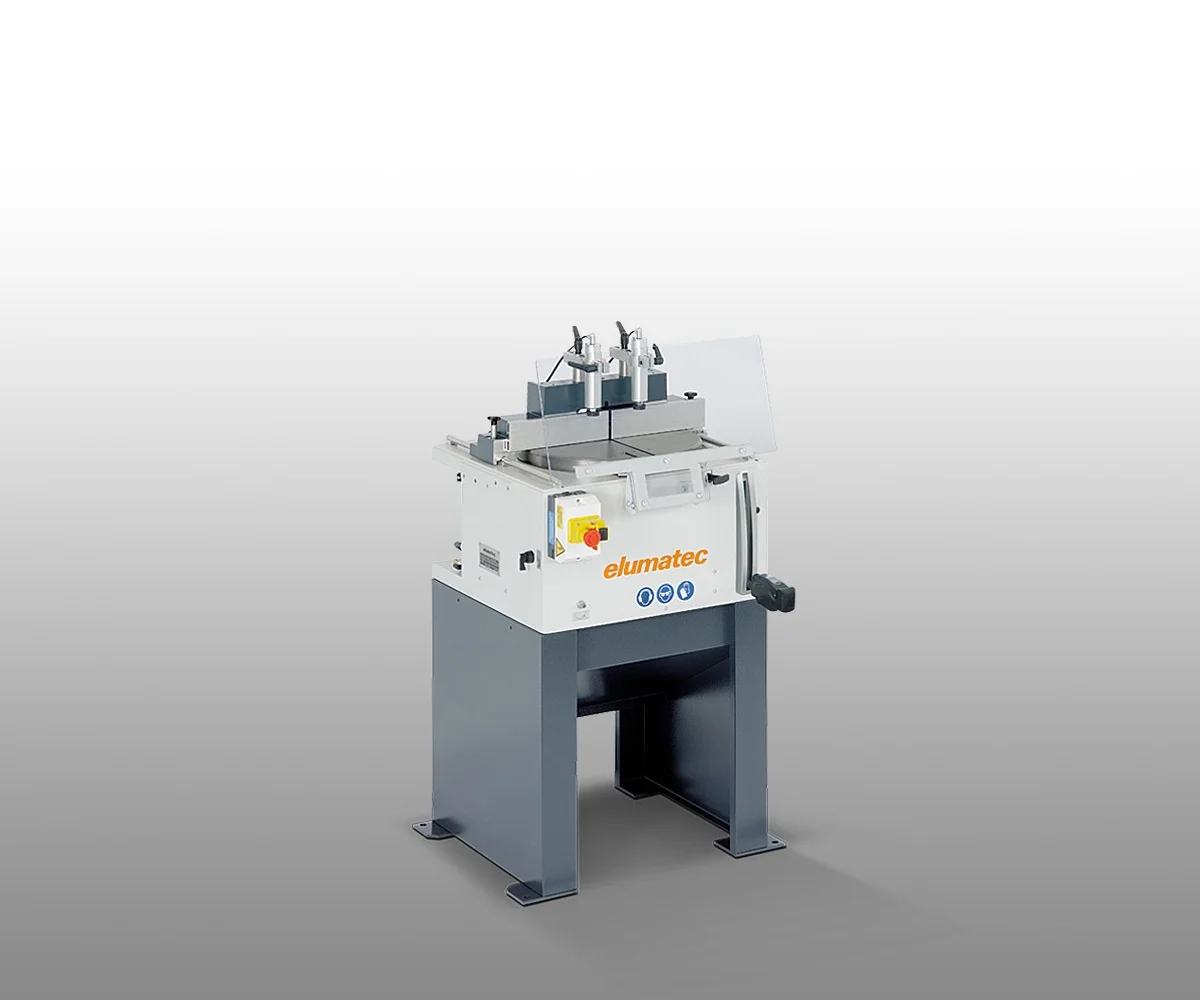

Table Saw TS 161/21

Specification -

• Accuracy is achieved by cutting from below for 90° saw cuts and angled cuts
• Wide pivoting range of up to 45° to the left and 0° to the right
• The special pivoting mechanism with integrated turn table enables working from the front at any angle setting
• The back fence is adjustable to allow optimal use of the saw blade capacity for wide and flat profiles
• Manual saw feed
• Equipped with saw blade and machine base as standard
• Pneumatic material clamping (vertical)
• Pulsed coolant system
• Maintenance unit

Options -

• Digital display for pivoting angles
• Extraction system
• Length stop and measuring systems
• Roller conveyors
• High-performance cutting fluid

Technical Data -

• For cutting range, see cutting diagram
• Saw blade diameter 280 mm
• Saw blade speed 3,200 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 1.05 kW
• Length 650 mm, depth 750 mm, height 1,300 mm, weight 130 kg
