(2009) INVERNIZZI Lamination Press Line (APT1)
By: Alcircle Pte Ltd
CategoryFinishing LineManufacturerInvernizziMin Order Quantity1.00 UnitPlace of OriginPoland
*Login Required
Details
Price:Available on request|Model:T320 DM2|Year of Manufacturing:2009|Capacity:320 Tons
Description

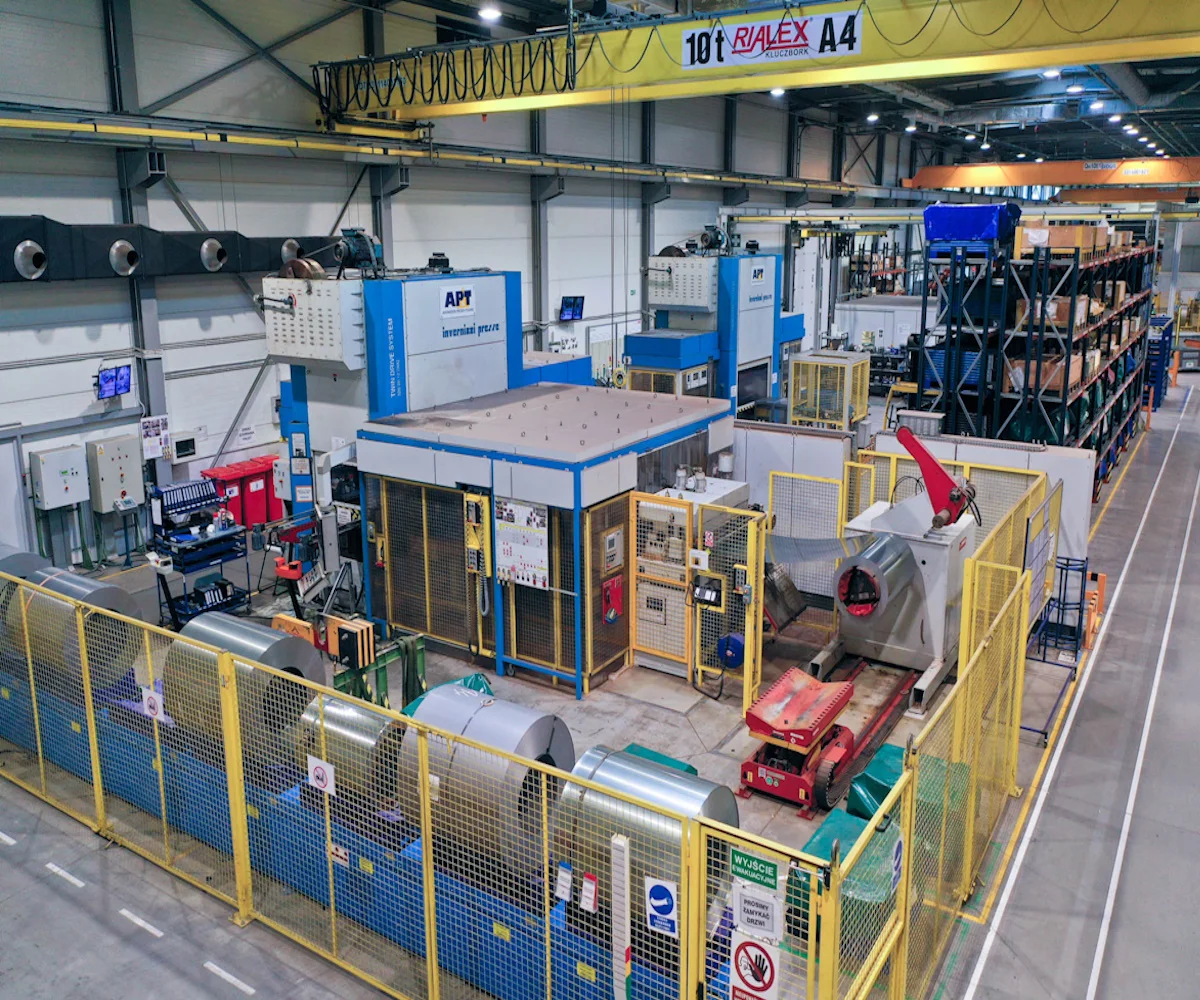

We have a sale offer for (2009) INVERNIZZI Lamination Press Line (APT1).
The complete line consists of the following machines:
(2009) DIMECO ETC 80 Coil Loading Truck
(2009) DIMECO 2386 Heavy Duty Decoiler
(2009) DIMECO Coil Straightener
(2009) DIMECO 1125H SIMO STAR Zig Zag Feeder
(2009) INVERNIZZI T320 DM2 Lamination Press
(2009) APT Stacker Unit
Technical Details:
| General Press Information | |
| Press Force | 3200 kN |
| Drive Power | 22 kW |
| Stroke Rate | 15-50 strokes per minute |
| Structural and Mechanical Dimensions | |
| Slide Dimensions (Length x Width) | 2000 mm x 1200 mm |
| Bed Dimensions (Length x Width) | 2000 mm x 1200 mm |
| Opening in the Bed | 600 mm |
| Openings in the Press Upright | |
| Downward | 410 mm |
| Backward | 500 mm |
| Bed Plate Thickness | 150 mm |
| Adjustments and Control Mechanisms | |
| Slide Adjustment | 90 mm |
| Stroke Adjustment Range | 20-40 mm |
| Fixed Stroke | 17 mm |
| Machine Physical Parameters | |
| Lateral Useful Opening | 1100 mm |
| Frontal Useful Opening | 2100 mm |
| Maximum Distance Between Bolster and Slide | |
| Stroke Down, Adjustment Up (S.D.A.U.) | 500 mm |
| Stroke Down, Adjustment Down (S.D.A.D.) | 450 mm |
