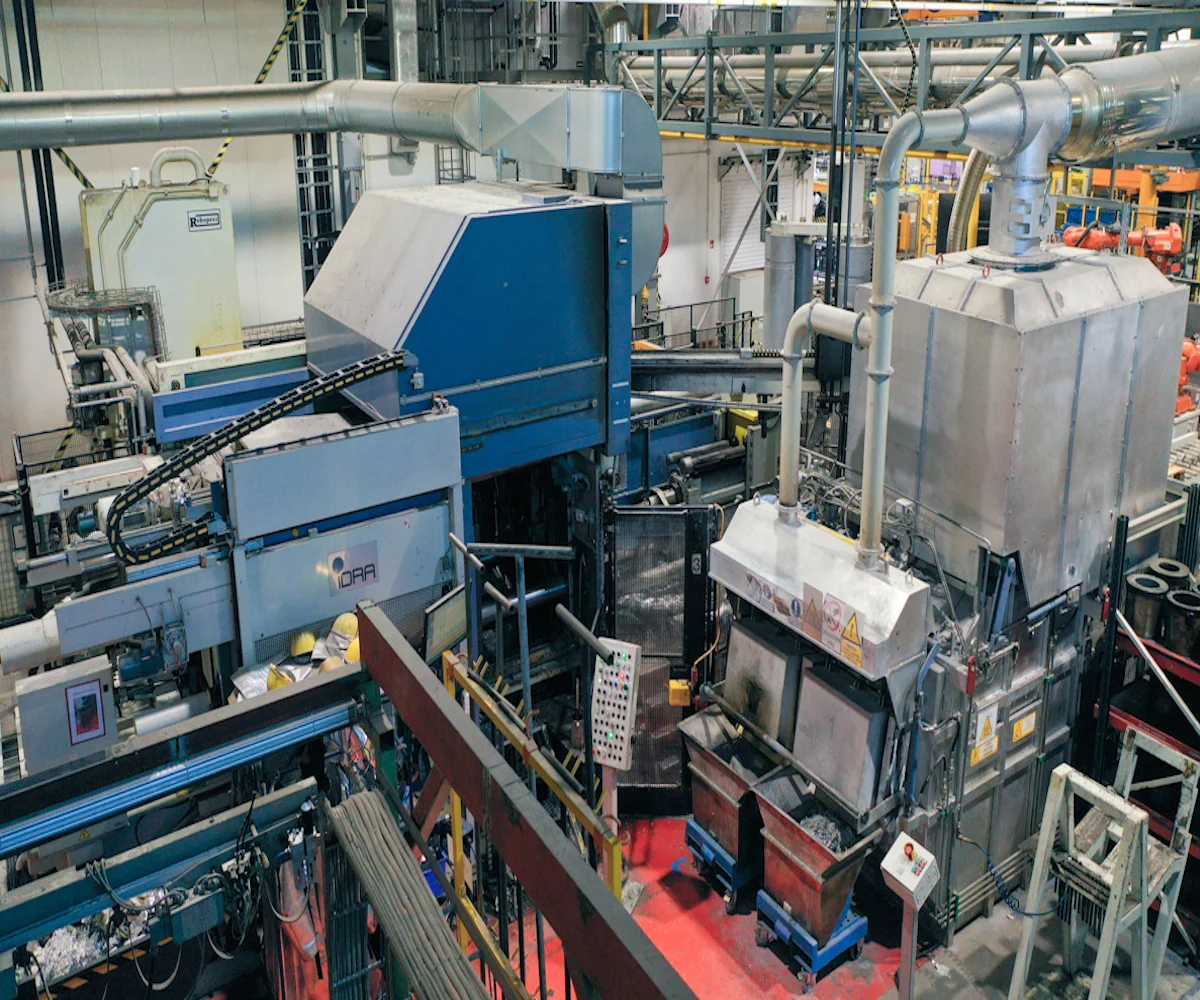

(2010) IDRA Aluminium Die Casting Cell
By: Alcircle Pte Ltd
CategoryAluminium Casthouse EquipmentMin Order Quantity1.00 UnitPlace of OriginPoland
*Login Required
Details
Price:Available on request|Model:OLK802/13008|Serial No:7954|Year of Manufacturer:2010
Description
We have a sale offer for (2010) IDRA Aluminium Die Casting Cell.
Rotor and Stator Production Line: Frame Sizes 160-250 mm for 11-55kW Motors
The complete line consists of the following machines:
- (2014) ABB IRB 6640 Buffer Robot Cell
- (2014) ABB IRB 6840 Compensation Station Robot
- (2014) BOFAB InterRoll S3950 Conveyor Rolls
- (2010) FERGAL FFCA01 Aluminum Melting Furnace
- (2010) IDRA CLE30 Casting Ladle
- (2010) IDRA OLK802/1300S Aluminum Die Casting Press
- (2009) ABB IRB 7600 Foundry Plus Handling Robot
- (2010) ROBOPRESS Trancia CS 40 Trimming Press
| Technical Details | |
| Width ( max) | 3120 mm |
| Height | 3770 mm |
| Total Length | 9441 mm |
| Space for Bar Insertion during Assembly ( max) | 12200 mm |
| Pillar Retraction Height | 10600 mm |
| Casting Height ( max) | 900 mm |
| Casting Height ( mini) | 400 mm |
| Press Plate Dimensions LxH | 1315 mm x 1315 mm |
| Bar Spacing LxH | 830 mm x 830 mm |
| Bar Diameter | 175 mm |
| Movable Press Plate Movement | 850 mm |
| Injection Movement | 890 mm( max) , 650 mm(min) |
| Movable Press Plate Movement | 420 mm |
| Machine Operating Data | |
| Closing force | 8840 kN |
| Opening force | 1780 kN |
| Injection Force (max) | 976 kN |
| Injection Pressure ( max) | 424 bar |
| Central Ejection Force | 360 kN |
| Electrical installation | |
| Installed power | 59 kW |
| Voltage | 400 V |
| Frequency | 50 Hx |
| Extra Voltage | 24 VDC |
| Voltage LS SV | 24 VDC |
