Second-hand Aluminium Foil Rolling Mill Plant
By: Alcircle Pte Ltd
CategoryRolling MillManufacturerRobertson, Kampf, Schmutz, Nishimura, Waldrich-Siegen, Otto-JunkerMin Order Quantity1.00 UnitPlace of OriginGermany
*Login Required
Details
Built:1962-1989|Foil Width:850 mm|Entry Thickness:0.4 mm|Exit:2 x 7 microns|Scope of Supply:|:Roughing Foil rolling mill: 4-Hi|:Intermediate foil mill 4-Hi|:Finishing foil mill 4-Hi|:Slitters - Qty. 4|:Roll grinders - Qty. 2|:Annealing furnaces - Qty. 4
Description

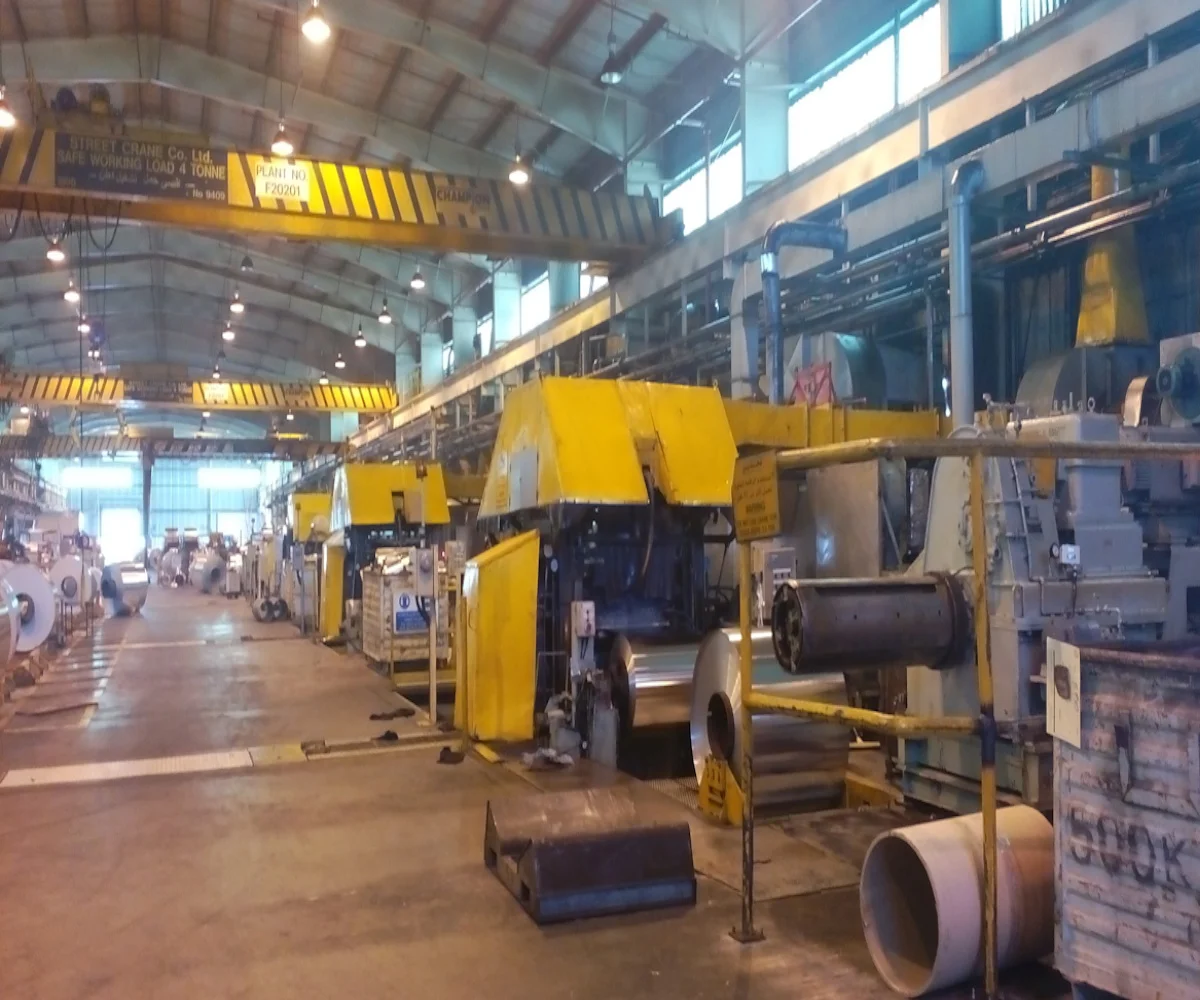

We have a sale offer for Second-hand Aluminium Foil Rolling Mill Plant.
| AGC System | |
| Manufacturer | Thermofaher |
| Installation Year | 2014 |
| Coil Weight ( max) | 1700 Kg |
| Coil Diameter ( min / max) | 1040 / 415 mm |
| Mill Speed | 500 m/min(max) |
| Mill Motor | 165 kW |
| Recoiler Motor | 14.7 kW |
| Decoiler Motors | |
| Qty | 2 ( 10 kW each) |
| PLC System Manufacturer | Allen Bradley |
| Second-hand Slitter (LGS1) | |
| Manufacturer | Kampf |
| Type | RKW6 |
| Built | 1962 |
| Thickness | 11 - 50 microns |
| Second-hand Slitter (LGS2) | |
| Manufacturer | Kampf |
| Type | 1100 |
| Built | 1968 |
| Speed | 600 m/min |
| Foil Width | 1100 mm |
| Thickness | 30 - 200 microns |
| Second-hand Annealing Furnaces | |
| Manufacturer | Mechatherm |
| Type | Electrical heated chamber furnace |
| Second-hand Charging Car | |
| Manufacturer | Bey Machinery Comp. Ltd. |
| Capacity | 21 ton |
| Type | 2 fork charging system |
