(2019) WEINGARTEN Lamination Press Line
By: Alcircle Pte Ltd
CategoryExtrusion Finishing EquipmentManufacturerWeingartenMin Order Quantity1.00 UnitPlace of OriginPoland
*Login Required
Details
Price:Available on request
Description

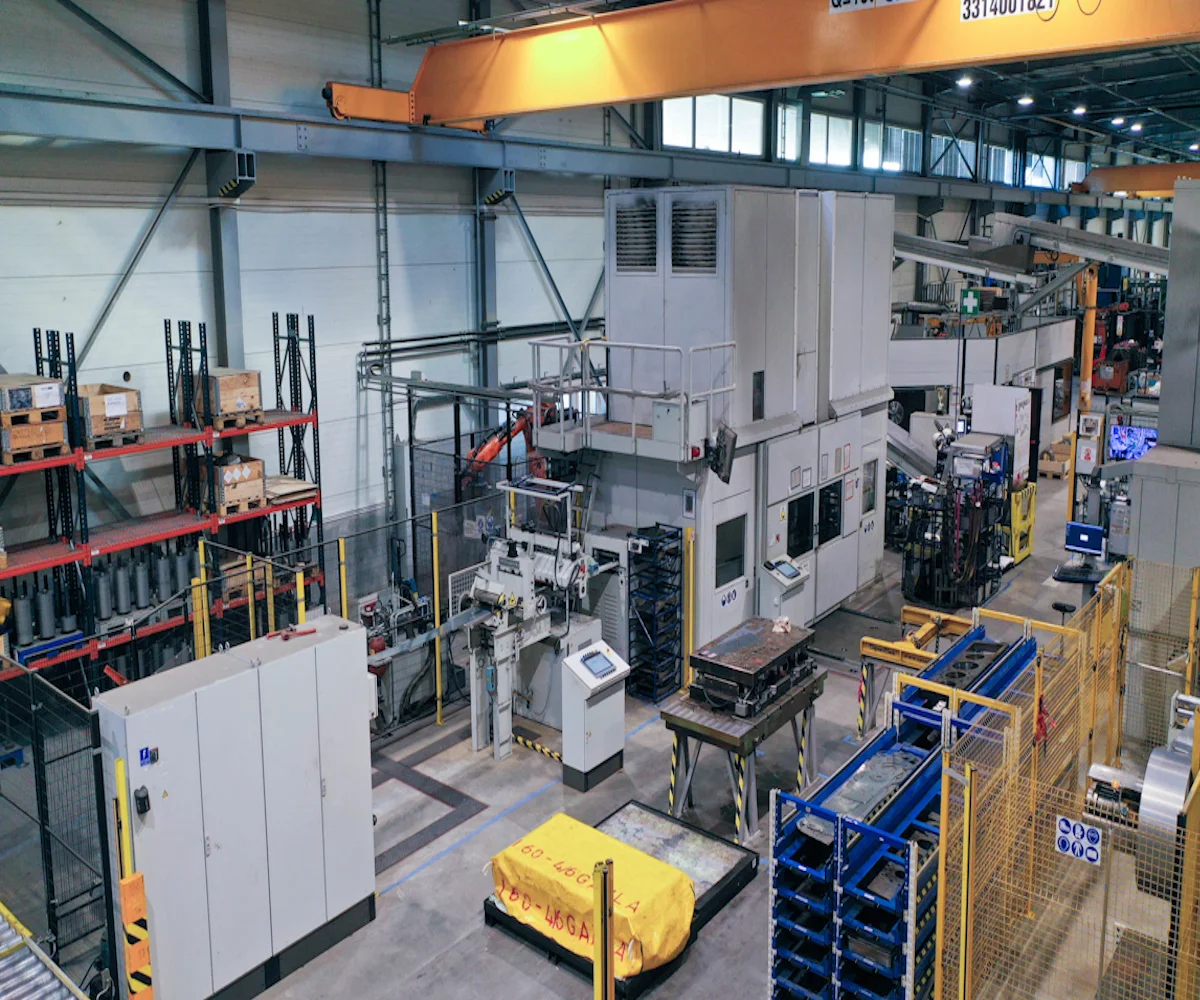

We have a sale offer for (2019) WEINGARTEN Lamination Press Line.
The complete line consists of the following machines:
(1977/2019 refurb.) Weingarten HS 315 Lamination Press
(1977/2019 refurb.) Weingarten Mechanical Feeder (Integrated with Press)
(1977/2019 refurb.) Weingarten RAS 40 Straightener
(1977/2019 refurb.) Weingarten Welding / Scissors Unit: LSRB2
(1977/2019 refurb.) ServoPresse SMD 400 T5 5 Uncoiler
Technical Details :
| Press Specifications | |
| Force Exerted by the Press | |
| Capacity | 315 t |
| Notch Gap at 50 kg/mm² Force | 6300 mm² |
| Maximum Sheet Thickness | 1 mm |
| Free Space Between Columns | 2400 mm |
| Maximum Distance Between the Table and the Slider (Bottom Jump) | 630 mm |
| Press Table Dimensions | |
| Width | 2200 mm |
| Depth | 950 mm |
| Hole in Table | |
| Width | 1800 mm |
| Depth | 400 mm |
| Slider Dimensions | |
| Width | 2200 mm |
| Depth | 800 mm |
| Slot in Slider | |
| Diameter | 65 mm |
| Depth | 120 mm |
| Normal Jump | 40 mm |
| Operating Mechanism | |
| Slider Adjustment | 80 mm |
| Number of Strokes (Depends on the Input Material) | 60-280/min |
| Maximum Feed Speed | 60 m/min |
| Drive System | |
| Drive System Engine | 45 kW |
| Engine Speed | 2400 RPM |
| Motor to Adjust the Slider | |
| Output Power | 2.2 kW |
| Speed | 1000 RPM |
