Horizontal CNC Lathe Machine

Their CNC lathe is suitable for the production and processing of instruments and meters, LED lamps, electrical appliances, plugs, auto and motorcycle parts, clocks, glasses, photographic equipment, cultural and educational supplies, lighters, decorations, valves and other accessories. Their CNC lathe, with more than 15 years of machine tool production R&D experience, uses the Taiye intelligent operation system, which is easy to use; each worker can operate 3 to 4 sets of machine tools at the same time. Their CNC machine tools are a hot sale in Southeast Asia, North Africa, South America and mainland China and get high praise from customers. Their customers include JMA Aluminum Company, Fenglu Aluminum Company, Jiangshun Group, Xingfa Aluminum Company, etc.

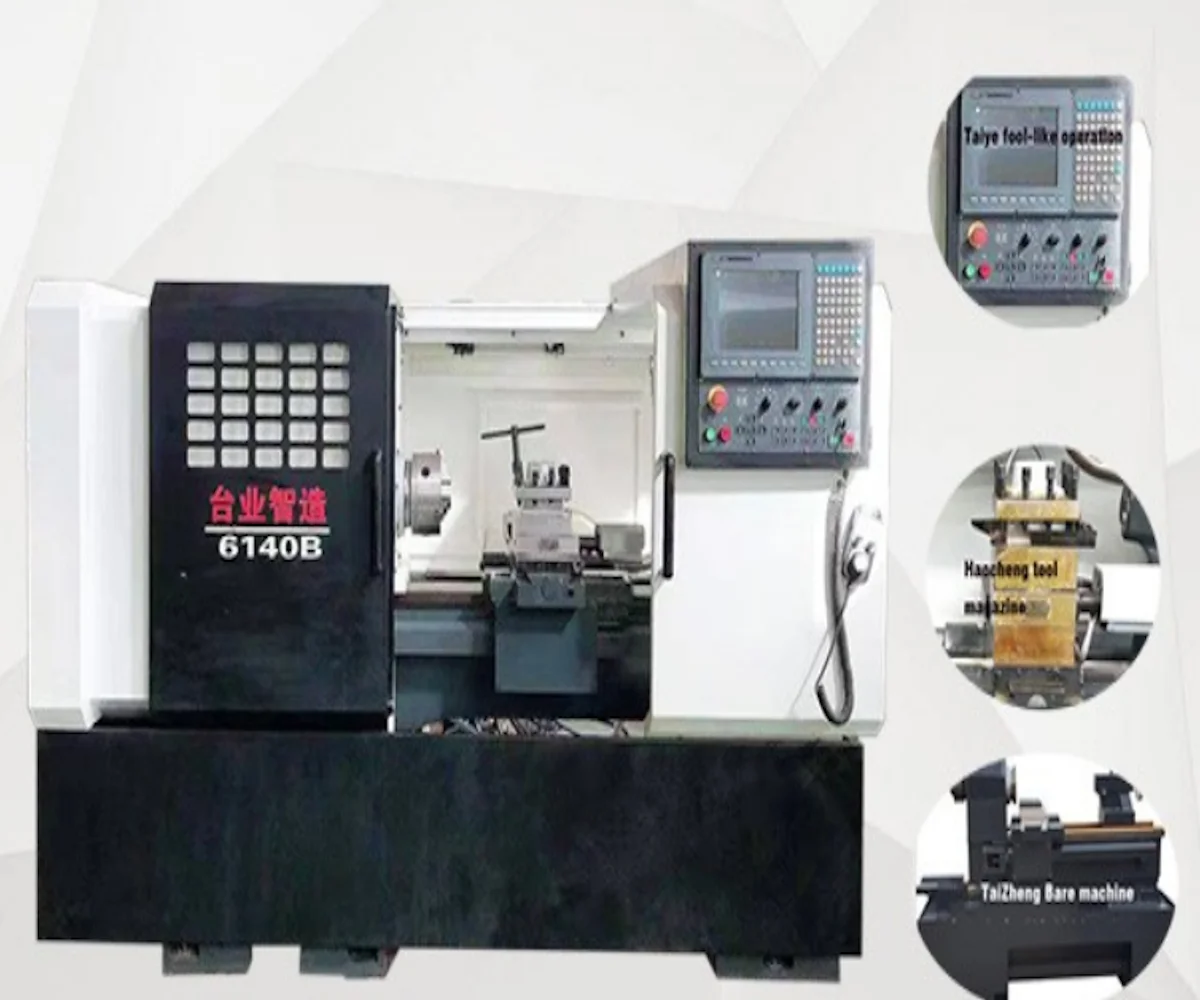

6140 High Speed Metal Machining Horizontal CNC Lathe Machine:

1. No programming required. Their company provides professional automatic programming software developed by them.

2. No need to know the workmanship. It is easy to learn, and the use of the workmanship is no longer annoying for recruitment.

3. The size and accuracy of the appearance have exceeded the export standard, and the same mold can achieve the mouth wide.

4. Highly cost-effective. Specially designed and developed for aluminium extrusion dies, the professionalism is extremely strong, and the accessories are all in the same grade as the machining center.

5. Work efficiency is high. One person can easily operate three machines and can perform data input of subsequent workpieces under the multi-page screen without stopping the machine. ¢180 and below mold monthly capacity of 1200-1300 sets. The labor intensity of the lathe is greatly reduced, and the labor cost is also reduced. The semi-closed protective sheet metal also improves the mental outlook of the lathe.

Parameter:

Type:		TAIYE TY6140B horizon CNC lathe
CNC or Not:		CNC
Max. Swing Dia.:		420 mm
Max. processing diameter (mm)		230 MM
Max. processing length		750 (optional)
Place of Origin		Zhejiang, China (Mainland)
Brand Name		TAIYE
Dimension(L*W*H):		2100*1600*1400mm
Weight:		1800 KG
Max swing over bed:		500mm
max. workpiece length:		750/1000/1500/2000mm
X Axis screw type		GQ2504-P3
Z Axis screw type		GQ5010-P4
X/Z Axis connect type		X: Direct (7.7 N/M)/2000 Z: direct: (10 N/M)/1500
spindle taper:		70/1:20 (Metric)
Spindle Power		11 kw
Bar diameter		Φ 78
chuck size		D250
spindle speed range: rpm/min		2500 r/min
Sleeve diameter		Φ60
tailstock center travel:		120mm
tailstock sleeve taper:		MT4
Standard configurations		Optional  configurations
CNC system:		Taiwanese SYNTEC system
Power:		11 kw
