By: Zhejiang Taiye Machinery Equipment Co., Ltd.
Price:Available on request
Their CNC lathe is specially used in heavy cutting, drilling of parts, rough finishing, CNC machining, metal cutting, turning machining and aluminium extrusion mold dies.
Their machine company has over 200 high-tech talents and more than 20000 square meters of production workshop and more than 15 years of high-performance CNC machine tool manufacturing experience, serving customers with high-rigidity, high stablity and high-precision CNC machine tools.
Their machine tool is a hot sale in Southeast Asia, North Africa, South America and mainland China. Their customers include JMA Aluminum Company, Fenglu Aluminum Company, Jiangshun Group, Xingfa Aluminum Company, etc., and they are highly praised by their customers.
Product introduction and use:

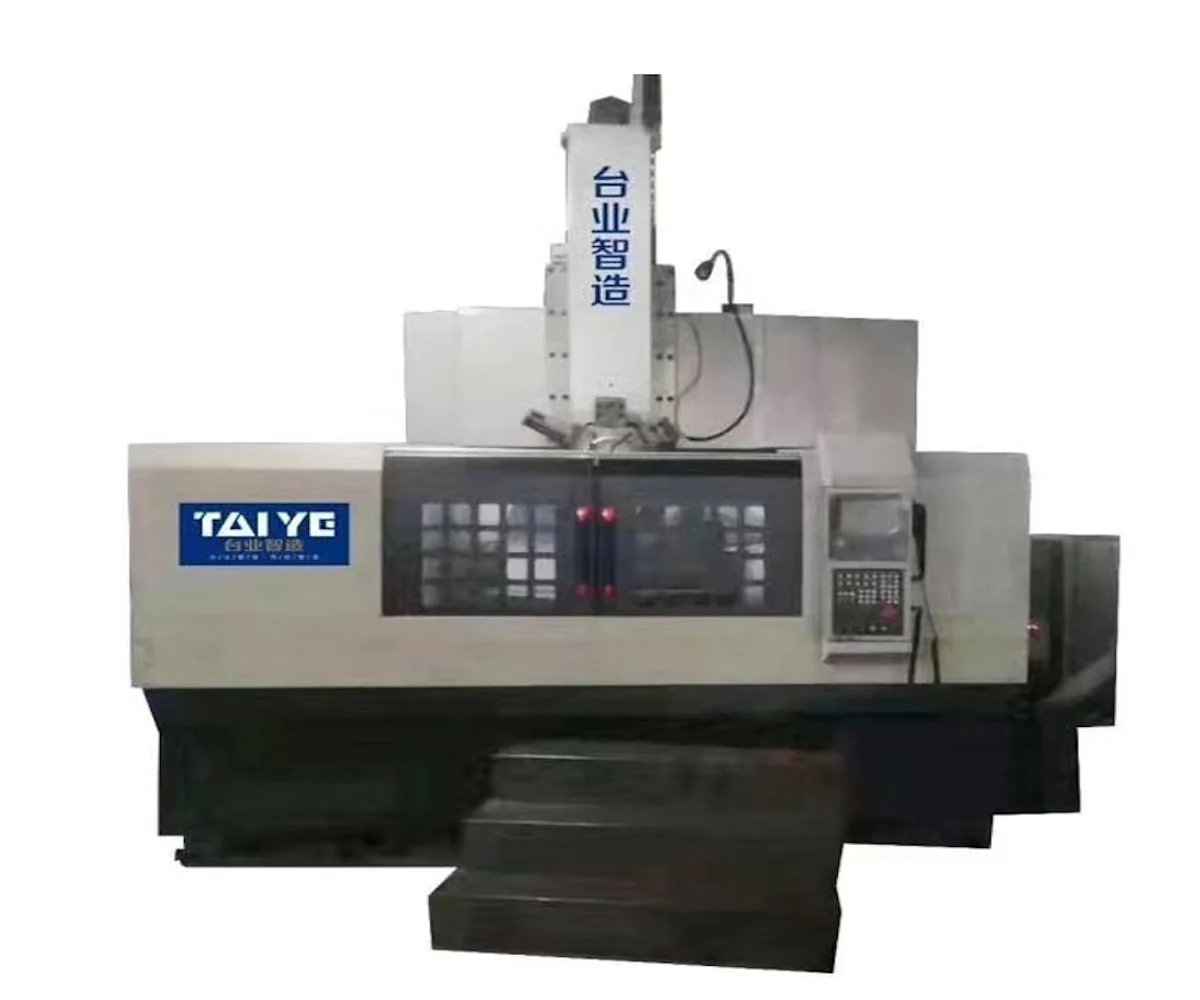

This machine is an automatic CNC machining machine for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels. Processing of parts such as shells. 850 vertical machining CNC lathe, max processing mold diameter to 800 mm, simple and easy to use, saving training costs and labor costs, and suitable for heavy cutting.
Parameter:
| Specifications | Taiye 850 vertical CNC lathe |
| Max. turning diameter of workpiece | 850 mm |
| Max. turning diameter | 800 MM (disc type) |
| Vertical travel of tool post | 700 mm |
| Horizontal travel of tool post | -50-700mm |
| Spindle model | A2-11 |
| Spindle load | 1000 kg |
| Spindle speed range | 50-800rpm,1:2.5 Speed ratio |
| Main motor power | 30 kW (rated speed 750) |
| X-axis rapid feed traverse | 15m/min |
| Z-axis rapid feed traverse | 12m/min |
| Cutting feed speed | 0.1-5000 mm/min |
| X-axis motor power/Torque | 3.14 kW / 20 NM |
| Z-axis motor power/Torque | 3.14 kW / 20 Nm brake |
| Tool post type | 4-station electric tool post |
| Tool shank size | 40×40mm |
| Chuck diameter | 700 mm (manual 4 jaw) |
| Positioning accuracy | ±0.01mm |
| Repeat positioning accuracy | ±0.005mm |
| Machine weight | ≈8000 kg |
| Overall dimensions | 2050x1800x3200 MM |
