1250 Vertical Machining CNC Lathe

Their CNC lathe is specially used in heavy cutting, drilling of parts, rough finishing, CNC machining, metal cutting, turning machining, and aluminium extrusion mold dies. Their machine company has over 200 high-tech talents and more than 20000 square meters of production workshop and more than 15 years of high-performance CNC machine tool manufacturing experience, serving customers with high-rigidity, high-stability and high-precision CNC machine tools. Their machine tool is a hot sale in Southeast Asia, North Africa, South America, and mainland China. Their customers include JMA Aluminum Company, Fenglu Aluminum Company, Jiangshun Group, Xingfa Aluminum Company, etc., and they are highly praised by their customers.

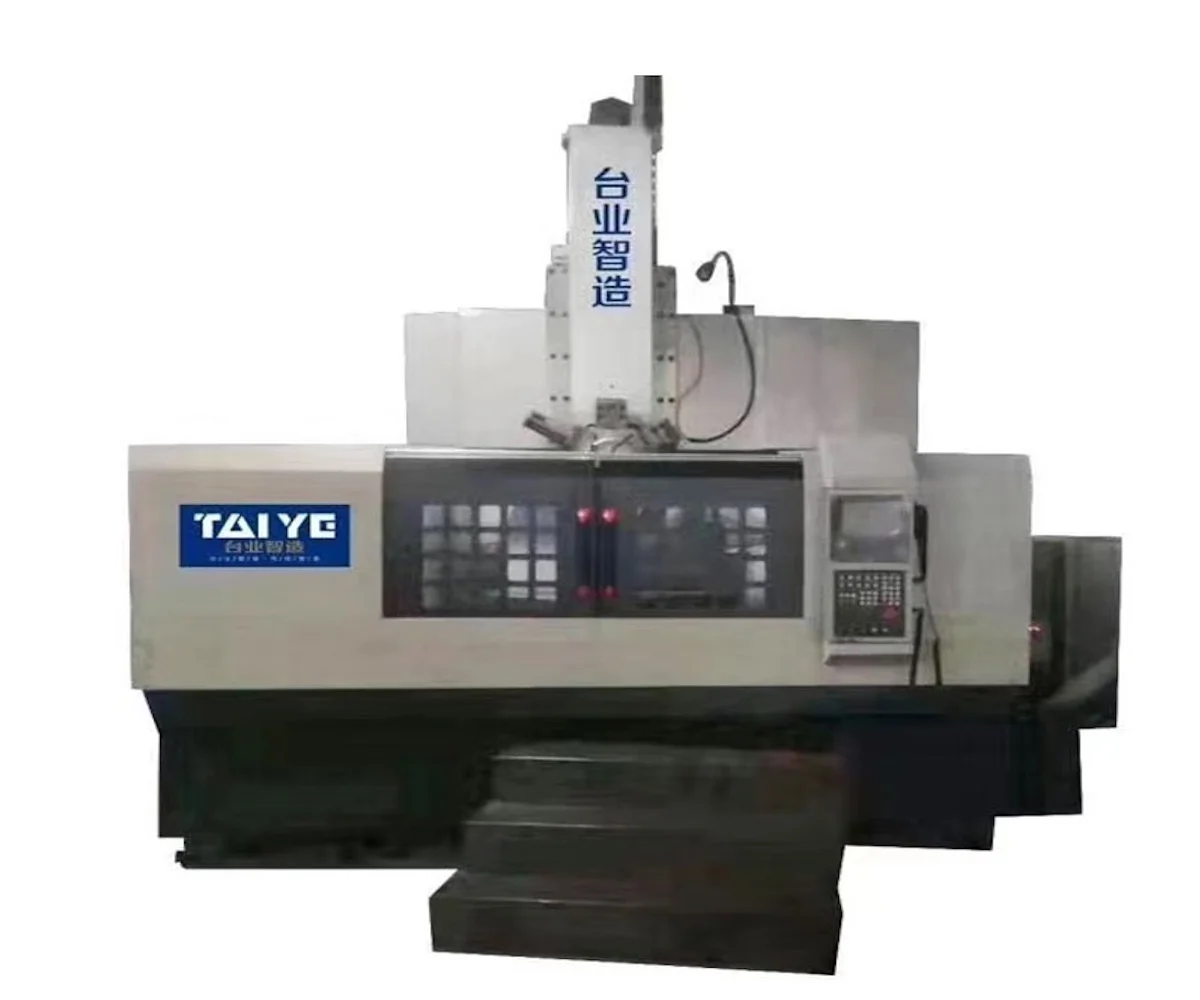

1250 Vertical CNC Lathe machine for Aluminium extrusion dies.

Product introduction:

1250 vertical CNC lathe for aluminium extrusion dies, especially used in heavy cutting, drilling of extrusion die parts, and rough finishing. This CNC machine tool can max process 1250 mm extrusion dies and metals.

This vertical CNC lathe machine is an automatic CNC machining machine for machining the aluminium extrusion die's inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. This vertical CNC lathe uses a high-rigidity and stable base machine; it is simple and easy to use, stable in use, and long-lasting.

Their CNC vertical lathe does not require programming. Their company provides self-developed professional automatic programming software.

No lathe knowledge is required. Simple and easy to learn, the threshold for employment in aluminium extrusion die companies is super low, and they no longer have to worry about recruiting workers.

One person can easily operate two CNC lathes without stopping and can input data for subsequent workpieces on a multi-page screen. The monthly production capacity of molds of ￠180 and below is 1200-1300 sets. It greatly reduces the labor intensity of lathe workers and also reduces the labor cost. The semi-enclosed protective sheet metal also improves the mental outlook of lathe workers.

Parameter:

Specifications	VTC1250
Max. turning diameter of workpiece	1250mm
Max. turning diameter	1000/1250 (disc type)
Vertical travel of tool post	1000mm
Horizontal travel of tool post	50-700mm
Spindle model	A2-11
Spindle load	1500 kg
Spindle speed range	50-600rpm,1:2.5 Speed ratio
Main motor power	30 kW (rated speed 750)
X-axis rapid feed traverse	15m/min
Z-axis rapid feed traverse	12m/min
Cutting feed speed	0.1-5000mm/min
X-axis motor power/Torque	3.14 kW / 20 NM
Z-axis motor power/Torque	3.14 kW / 20 Nm brake
Tool post type	4-station electric tool post
Tool shank size	40×40mm
Chuck diameter	1000 mm (manual 4 jaw)
Positioning accuracy	±0.01mm
Repeat positioning accuracy	±0.005mm
Machine weight	≈12800kg
Overall dimensions	3060×3010×3500mm
