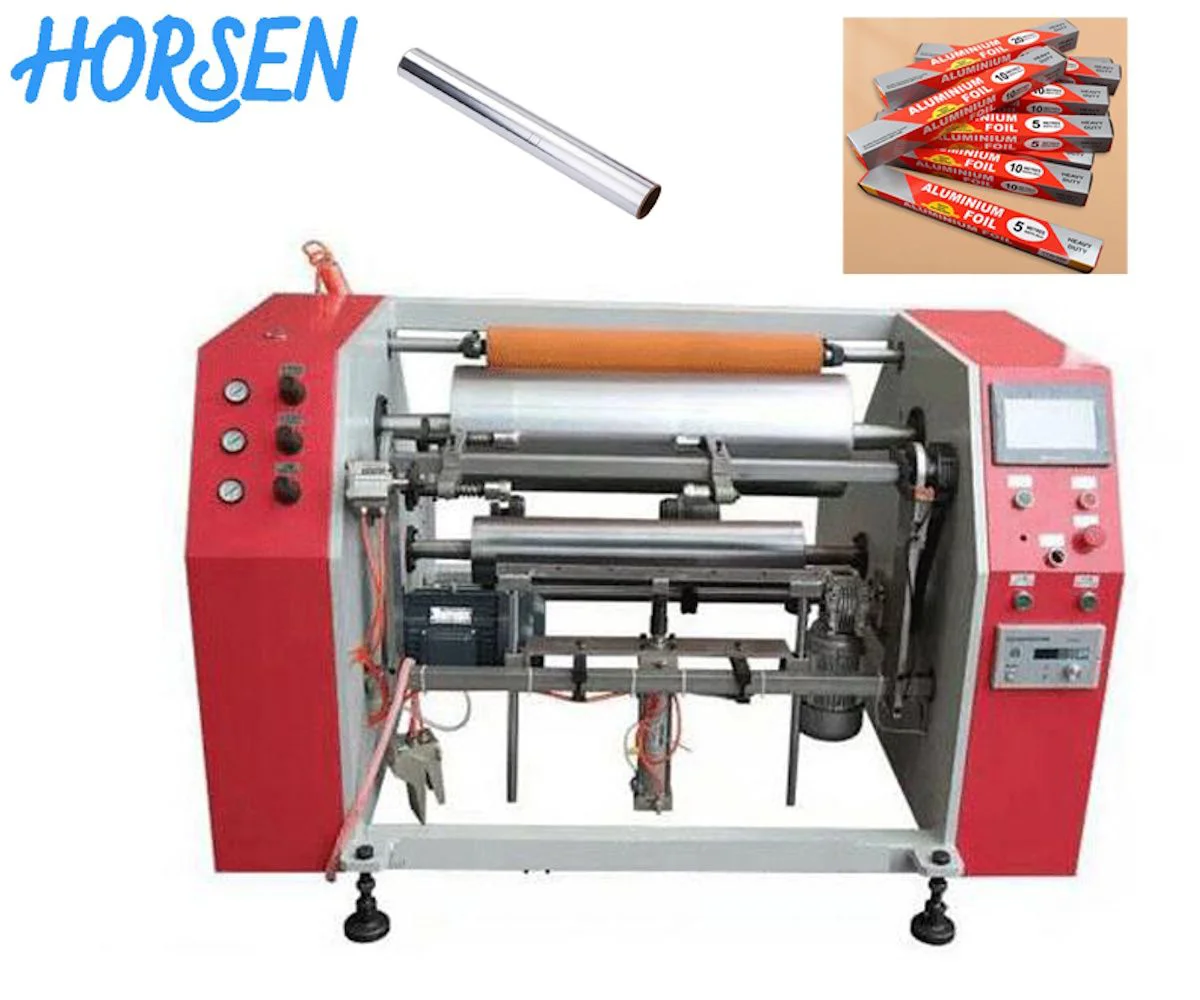

2 Shafts Semi-auto Aluminium Foil Rewinding Machine

It is used for rewinding the jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, catering foil roll and hair foil roll etc.

Specification:

• Paper core ID of jumbo roll: 76mm
• The width of jumbo roll: 600mm (max)
• The diameter of jumbo roll: 600mm (max)
• The width of sub roll: 600mm(max)
• The diameter of sub roll: 100mm (max)
• Core Of Sub Roll: 30-50mm (thickness above 2MM)
• Main motor power: 2.2KW (3Phase380V, 50HZ)
• Inverter frequency: 2.2KW
• Mechanical speed: Max 350M/min
• Dimension（about）: 1700*1350*1000mm
• Thickness of wall plate: 20mm±2m
• HMI ( Touch screen ) in English
• Tension control: magnetic powder brake
