High Speed Rewinding Machine for Household Aluminium Rolls
By: Wenzhou Horsen Machinery Co., Ltd.
CategoryFinishing LineManufacturerWenzhou Horsen Machinery Co., Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard Export Wooden CaseTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request|Work Method:Flat Knife Cutting|Structure:Winding Machine
Description

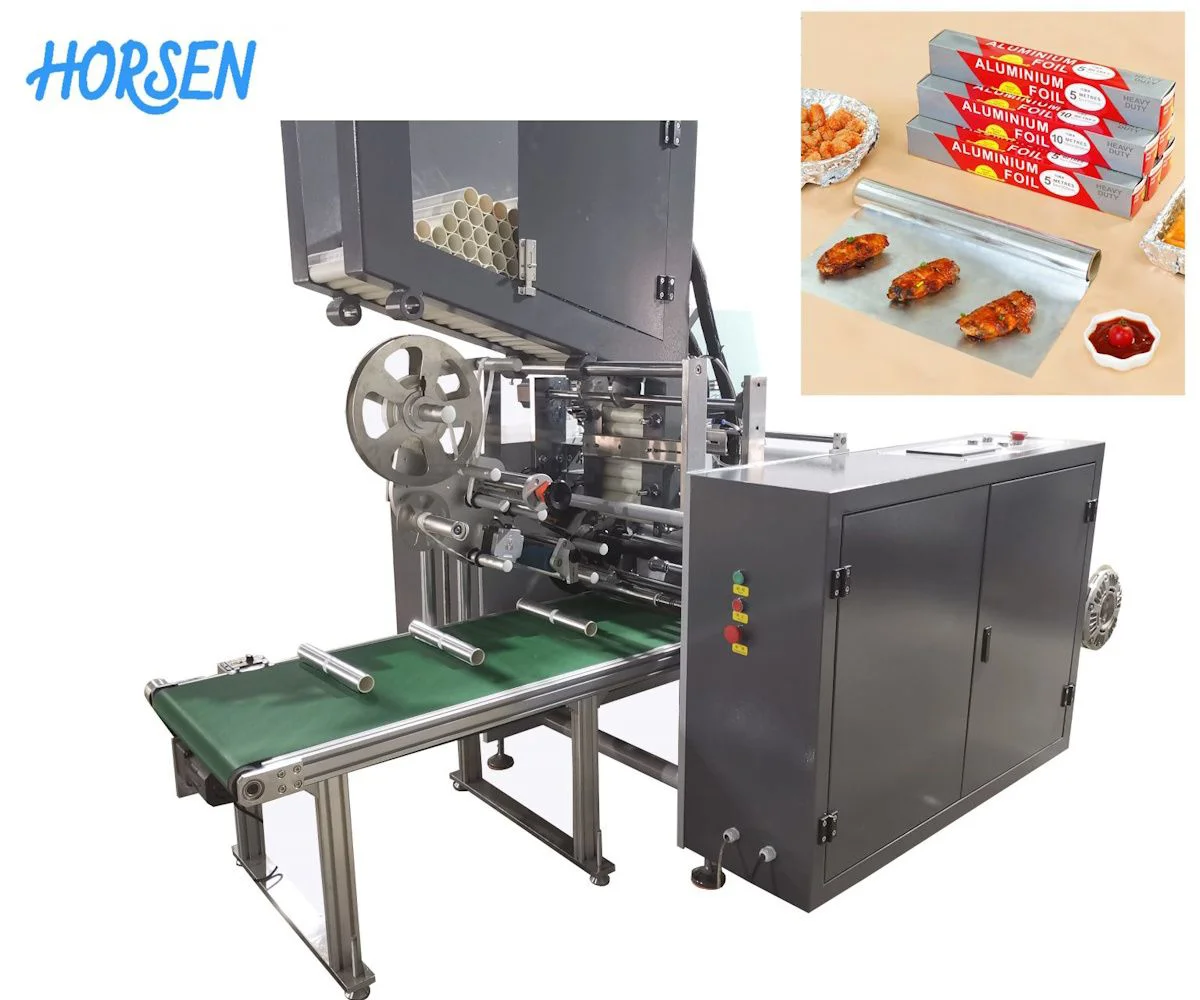

The automatic rewinding machine HSS-450 converts aluminum foil and baking paper rolls for household use.
It is the ideal solution for manufacturers who need flexibility and efficiency at low operating costs.
The HSS-450 is particularly suitable for medium to large manufacturers that produce a wide range of products.
Specification:
| Item number | HSS-450 6shafts auto change |
| Rewinding Material | Aluminum foil, baking paper, silicon paper |
| Driven Type | Electric |
| Width of material | 200-450mm(customized) |
| Width of products | 200-450MM(customized) |
| Diameter of un-winder roll(Max) | 700mm |
| Diameter of re-winder roll(Max) | 90mm / max. length 300m |
| Minimum length of rewind | 1meter |
| Core size of un-winder | 3’’ or 6” |
| Core size of re-winder | 30mm 35mm or 38mm (Customized ) |
| Max Mechanical Speed | 350m/min |
| Main motor | 4kw |
| Air pressure | 0.5Mpa |
| Change motor and gear reducer | 750W |
| Rewind motor | 1.5kw |
| Hot-melt Glue power | 3KW |
| Sticker motor | Servo motor 750W |
| Inverter | Delta Taiwan |
| PLC | Siemens |
| Touch screen | WEINVIEW |
| Hot-melt glue machine | China famous brand(if need Swiss import available) |
| Unwind and rewind tension | Automatic tension |
| Auto count meter | By encoder |
| Material finish function | Automatic machine stop |
| Weight | 1600kg |
| Installing dimension (LXWXH) | 3500*1800*2100mm |
| Packing Type | wooden case |
| Packing Size | 230*175*190cm |
