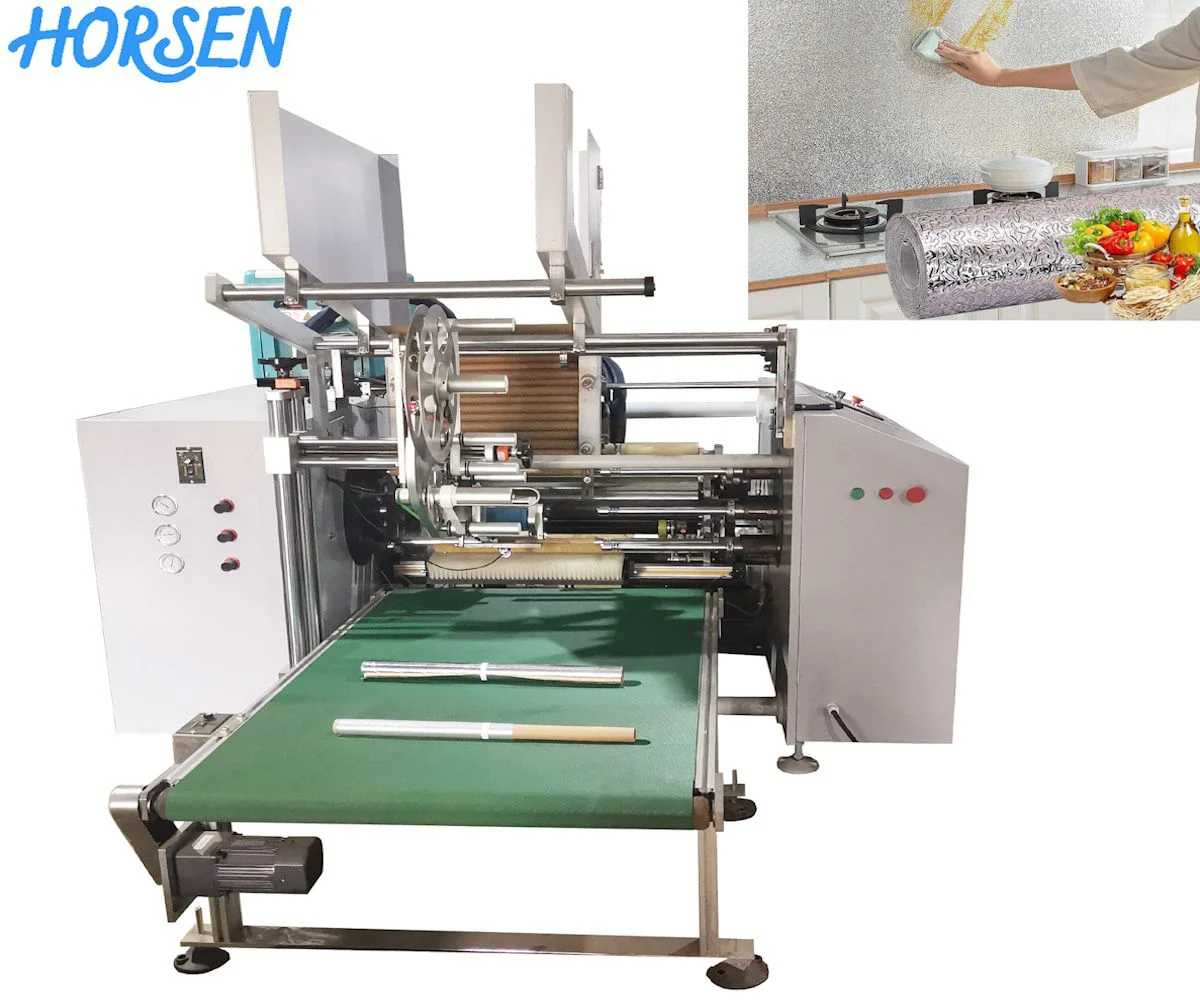

Thermal Insulation Aluminium Foil Paper Rewinding Machine
By: Wenzhou Horsen Machinery Co., Ltd.
CategoryFinishing LineManufacturerWenzhou Horsen Machinery Co., Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard Export Wooden CaseTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request|Work Method:Flat Knife Cutting|Structure:Winding Machine
Description
Specification:
| Item number | HSS-450 6shafts auto change |
| Rewinding Material | Aluminum foil, baking paper, silicon paper |
| Driven Type | Electric |
| Width of material | 260-450mm(customized) |
| Width of products | 260-450MM(customized) |
| Diameter of un-winder roll(Max) | Ф700mm |
| Diameter of re-winder roll(Max) | Ф90mm / max. length 300m |
| Minimum length of rewind | 1meter |
| Core size of un-winder | 3’’ or 6” |
| Core size of re-winder | 30mm 35mm or 38mm (Customized) |
| Structure thickness | 20mm |
| Max Mechanical Speed | 350m/min |
| Working Power | 7.5KW |
| Main motor | 4kw |
| Voltage | 3P. 380V(customized) 20A |
| Frequency | 50HZ |
| Air pressure | 0.5Mpa |
| Change motor and gear reducer | 750W |
| Rewind motor | 1.5kw Servo Motor |
| Hot-melt Glue power | 3KW |
| Sticker motor | 750W (short & long) |
| Inverter | Delta Taiwan |
| PLC | Siemens Germany |
| Driver | Delta Taiwan |
| Servo motor | Delta Taiwan |
| Touch screen | 7” WEINVIEW |
| Hot-melt glue machine | XBS China |
| Air Switch | CHNT China |
| Bearing | Haerbing & NSK |
| Unwind and rewind tension | Automatic tension |
| Auto count meter | By encoder |
| Material finish function | Automatic machine stop |
| Weight | 1600kg |
| Installing dimension (LXWXH) | 3500*1800*2100mm |
| Packing Type | wooden case |
| Packing Size | 245*176*182cm |
| Convey table size | 135*64cm |
