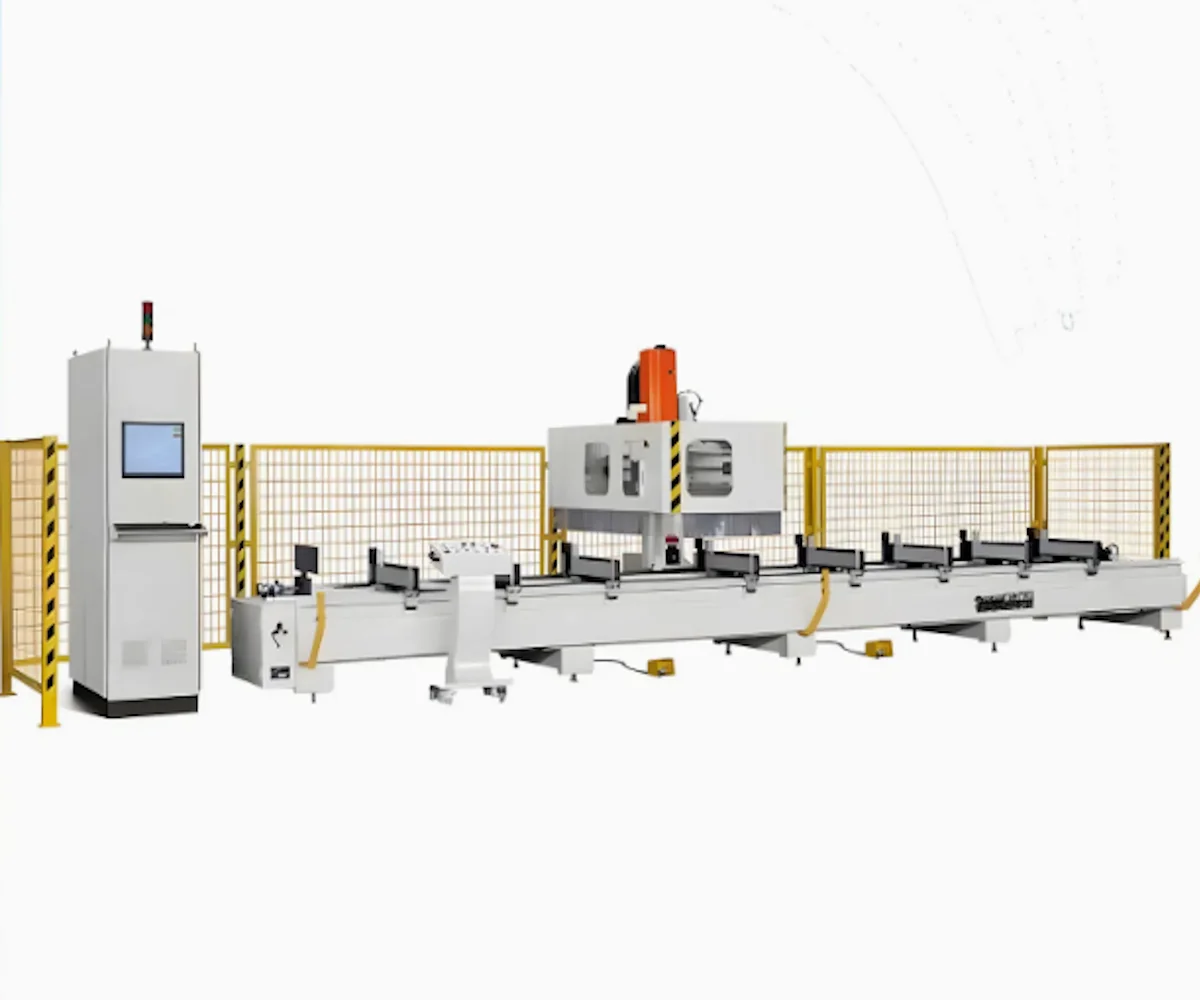

Lx-CNC-7000 High-Speed 4-Axis CNC Machining Center for Metal



This machine is designed for mounting holes, slots, locking holes, end milling, threading and other slots for many kinds of curtain walls and aluminum door and window profiles.


1. This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. It can work on various profiles.

2. It adopts YASKAWA servomotors and drivers, which are made in Japan.

3. It adopts a high-speed HSD spindle of Italy

4. It adopts a HIWIN linear guide and YYC ground gear racks, resulting in a highly precise process.

5. It adopts a computer control system, CAD-CAM software, which is used in industry areas especially.

6. It adopts SEIMENS electrical and pneumatic products, solenoid valves, SMC gas resource processors and JPC air cylinders.

6. Revolving six-position mills makes the mill-changing convenient.

7. Double profile locating devices: no need to stop the machine while taking the profiles on and off.

8. With a half-closed safeguard device to ensure the personal safety of the operator.

Technical Parameters:

X-axis stroke	Y-axis stroke	Z-axis stroke	X-axis speed	Y-axis speed	Z-axis speed	Spindle speed/power	Gyrating range
7000mm	1400mm	600mm	0~60m/min	0~30 m/min	0-20 ml/min	0-18000rpm/5.5kW	-90°-0°-+90°
Working pressure	Power supply	Total power	Clamp station	Cutter max length	Work area (W x H x L)	Dimension (W L)	Weight
0.5-0.8 MPa	380V/50Hz	10kW	8	165mm	650 × 200 × 7000 mm	11300 × 2350 × 2550mm	4500 kg
