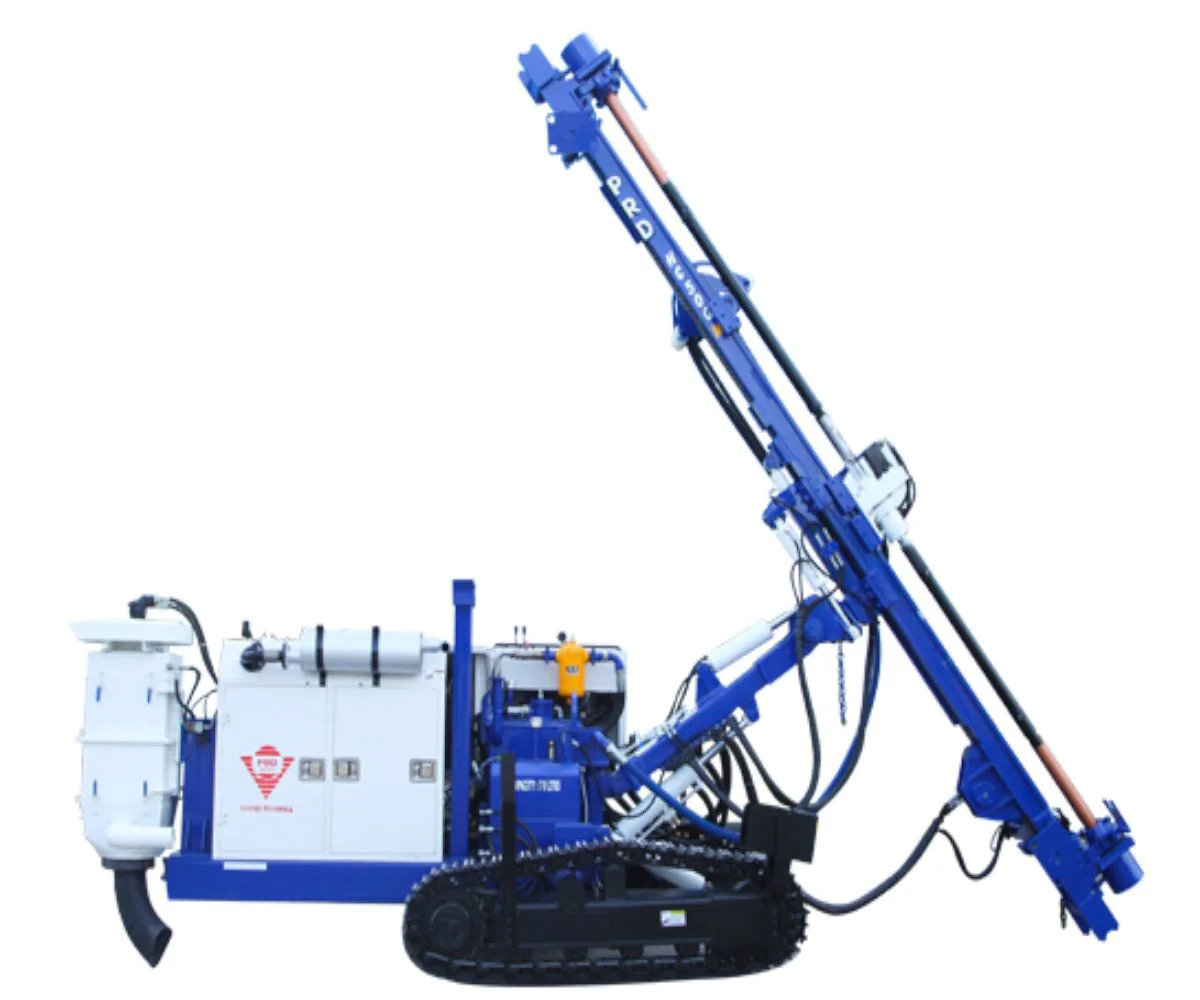

PRD Hydraulic Rig
CategoryAlumina Refinery EquipmentManufacturerPRD Rigs India Pvt. Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per OrderPlace of OriginTamil Nadu, IndiaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
The PRD hydraulic rig is designed specifically for quarry drilling applications. With a pull-down force of 1500 kgf (14.7 kn) and a drilling method of DTH it is capable of drilling holes with a diameter range of 90 mm to 127 mm (3 1/2" to 5"). The drill rod diameter is 76 mm (3") and the maximum drill depth is up to 15 m (50 ft). The rig offers a pull-up force of 1500 kgf (14.7 kn) and features diameter angle options of 45°, 90°, and 180° for enhanced drilling versatility. Optional attachments such as a dust collector and dust suppression system are available to meet specific requirements.
| Application | Drilling for blasting in Quarries |
| Dimension stone industry | |
| Drilling Method | DTH |
| Flushing Medium | Air |
| Drilling Depth | 15 m |
| Hole Diameter | 89 – 125 mm (3 ½” - 5") |
| Rotary Head Type | Top drive head |
| Rotary Head Travel | 4280 mm |
| Engine - Model | Suitable Deck engine 55 hp |
| Hydraulic system | Maximum system pressure: 2030 psi |
| Hydraulic tank capacity: 160 litres | |
| Under carriage | 5 ton* |
| Dimension | l x w x h: 5280 x 1920 x 2500 mm |
| Optional features | Dust collector |
| Dust suppression system | |
| Centralised lubrication system |
