PRD HC 500 D
CategoryAluminium Auxiliary EquipmentManufacturerPRD Rigs India Pvt. Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per OrderPlace of OriginTamil Nadu, IndiaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description

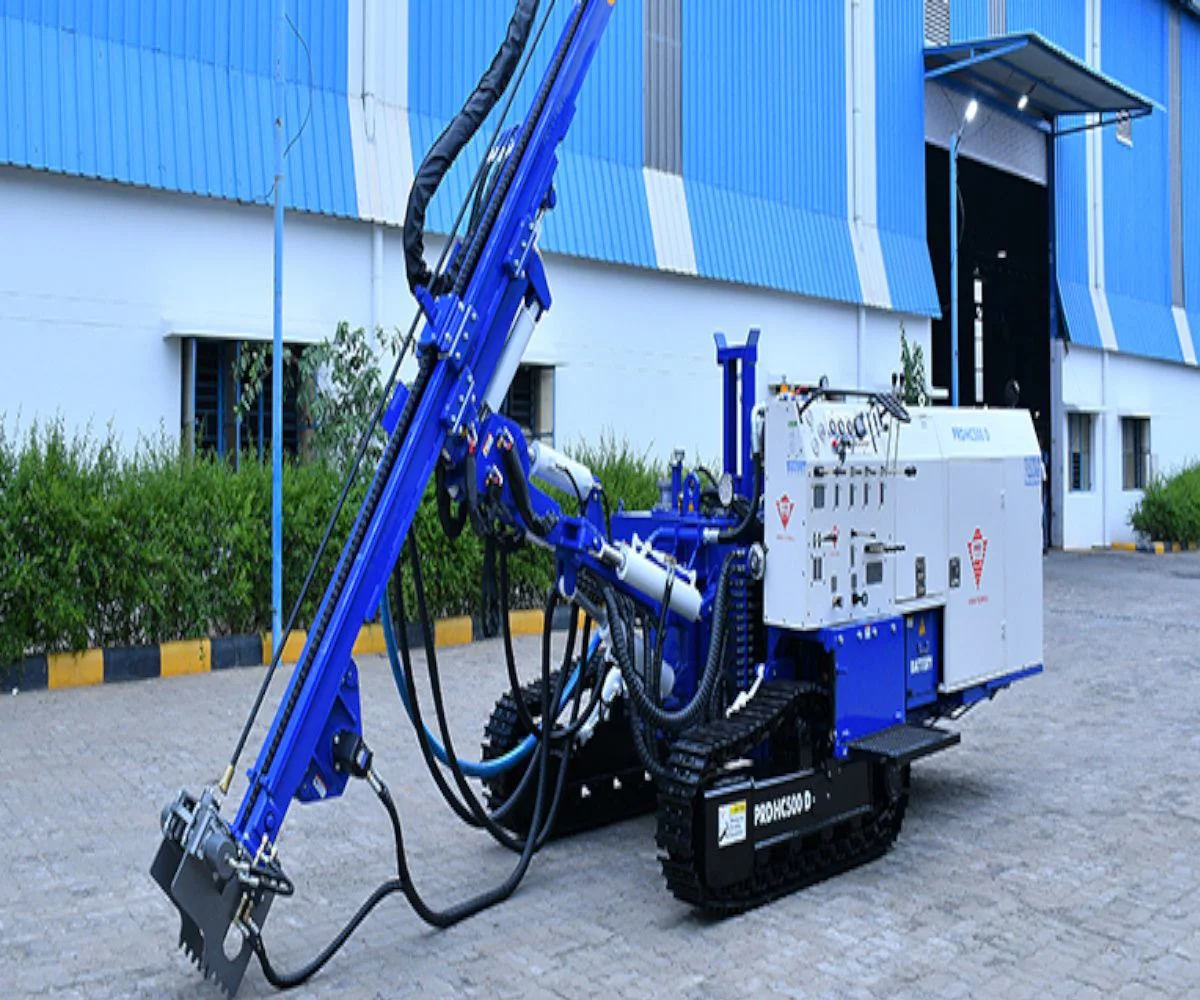

The PRD HC 500 D is designed specifically for quarry drilling applications. With a pull-down force of 1500 kgf (14.7 kn) and a drilling method of Top Hammer. it is capable of drilling holes with a diameter range of 38 mm to 45 mm (1.4" to 1.7"). The drill rod diameter is H22 and the maximum drill depth is up to 3 m (10 ft). The rig offers a pull-up force of 1500 kgf (14.7 kn) and features diameter angle options of 45°, 90°, and 180° for enhanced drilling versatility. Optional attachments such as a dust collector and dust suppression system are available to meet specific requirements.
| Application | Drilling for blasting in Quarries Dimension stone industry |
| Drilling Method | Top hammer |
| Flushing Medium | Air |
| Drilling Depth | 10 feet |
| Hole Diameter | 38 - 45 mm |
| Rotary Head Type | Top drive head |
| Engine - Model | Diesel Driven Prime Mover 86 hp |
| Hydraulic system | 10 kw |
| Under carriage | 5 ton* |
| Dimension | l x w x h: 5280 x 1920 x 2500 mm |
