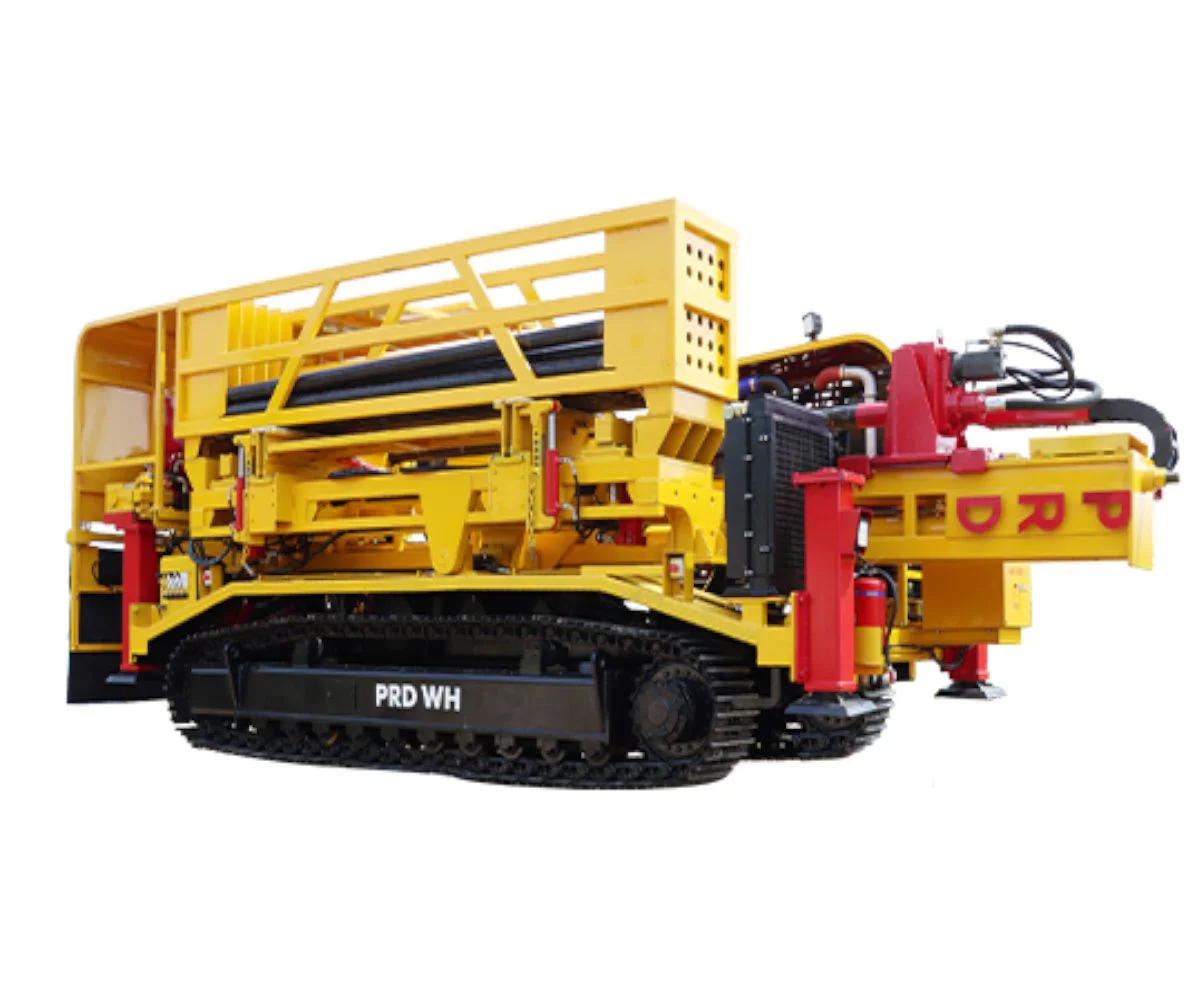

PRD Weep Hole Drilling Rig
CategoryAluminium Auxiliary EquipmentManufacturerPRD Rigs India Pvt. Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per OrderPlace of OriginTamil Nadu, IndiaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
The PRD Weep Hole drilling rig is specialized for creating horizontal weep holes for dewatering purposes, reaching depths of up to 250 meters.
| Application | Horizontal dewatering |
| Drilling Method | DTH |
| Flushing Medium | Air |
| Drilling Depth | 250 m |
| Hole Diameter | (127 mm - 203 mm) 5" - 8" |
| Rod Handling Method | Hands free rod handling system |
| Rotary Head Type | Top drive |
| Rotary Head Travel | 4000 mm |
| Rod Break out method | Hydraulic operated dual Rod clamp |
| Engine - Model | Suitable Diesel Driven - 180 hp |
| Hydraulic system | Max system pressure: 210 bar |
| Hydraulic tank capacity: 560 litres |
