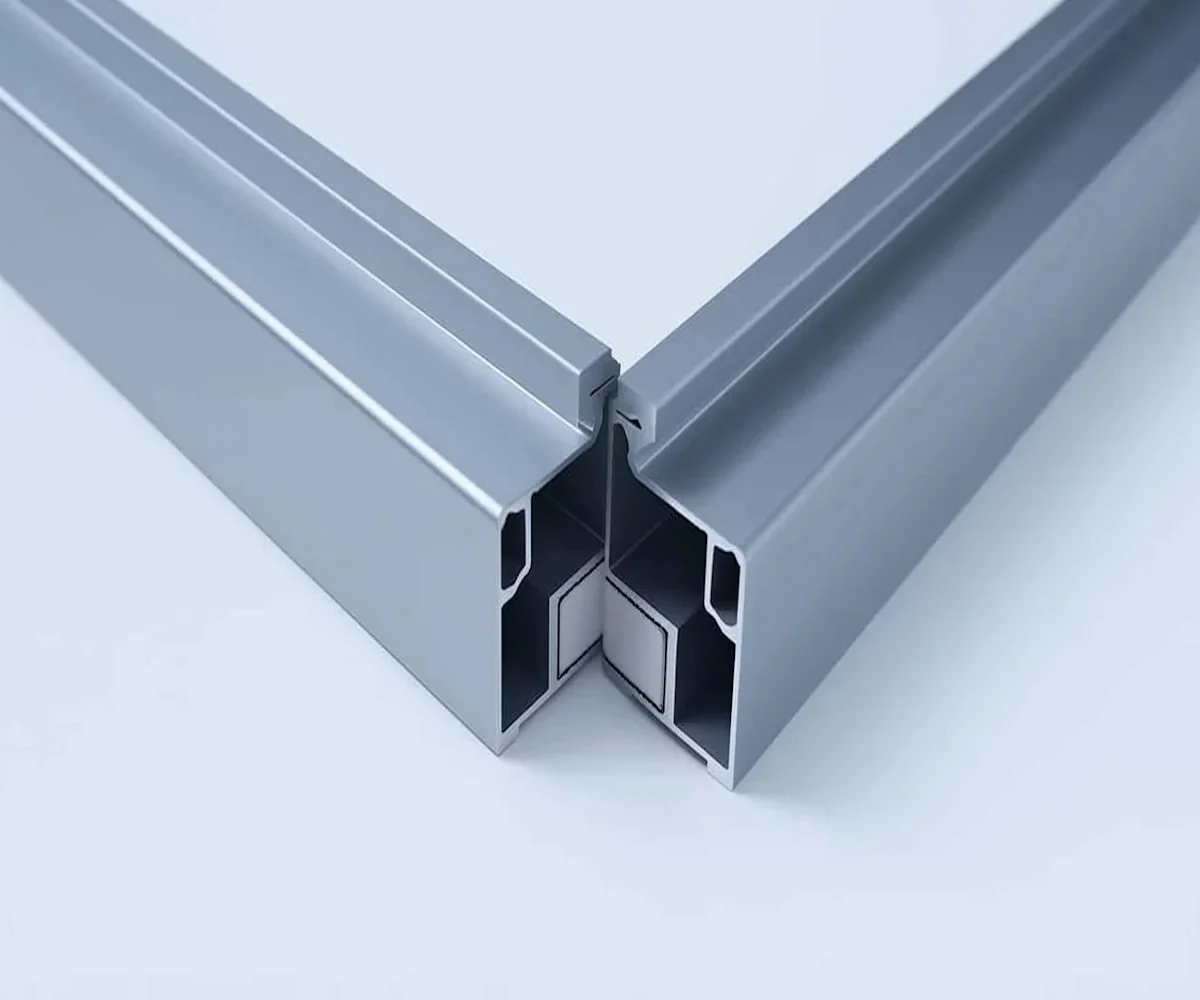

6063-T5 BIPV Aluminium Curtain Wall Profile
By: Chizhou Luyu International Trade Co., Ltd.
Details
Price:Available on request
Description
Aluminium Curtain Wall Profiles are designed for architectural façade and building-integrated photovoltaic (BIPV) curtain-wall systems. The referenced range supports both component (stick) and unitised curtain-wall construction, with profile size coverage from 50 mm to 100 mm for stick systems. Fully exposed, semi-concealed and fully concealed frame configurations are available to meet different façade design requirements.
The profiles are available in 6063-T5 for standard architectural sections, 6005-T5 where higher load ratings are required, and 6061-T6 for heavier-duty components. Surface finish options include anodising, powder coating, PVDF fluorocarbon coating, electrophoretic finishing and wood-grain transfer. Profile geometry and section depth can be engineered according to module dimensions, wind-load requirements and support spacing.
Specification:
|
Application |
framing for building-integrated photovoltaic modules installed as a curtain-wall element |
|
Curtain-wall Types Supported |
component (stick) type in the 50 / 55 / 60 / 65 / 70 / 75 / 80 / 90 / 100 size ladder, and unitised type |
|
Frame Styles |
fully exposed, semi-concealed and fully concealed frame |
|
Note |
section depth and profile geometry are set by the module dimensions and the wind load, so the frame is engineered per project rather than supplied from a fixed catalogue section |
|
Temper and Grade |
6063-T5 for standard sections · 6005-T5 where load rating governs · 6061-T6 for the heaviest duty |
|
Finish Routes |
Anodised · powder-coated · PVDF fluorocarbon · electrophoretic · wood-grain transfer, all produced on site |
|
Bespoke Sections |
Die cut to your drawing or sample; existing dies modified where the geometry is close |
|
Order-specific Dimensions |
Cut length, wall thickness inside the design envelope, colour to approved sample, bundle quantity |
|
Manufacturing and Shipping |
50,000 t/year at Xianyang, 100,000 t+ group-wide; own export licence; supervised container loading |
