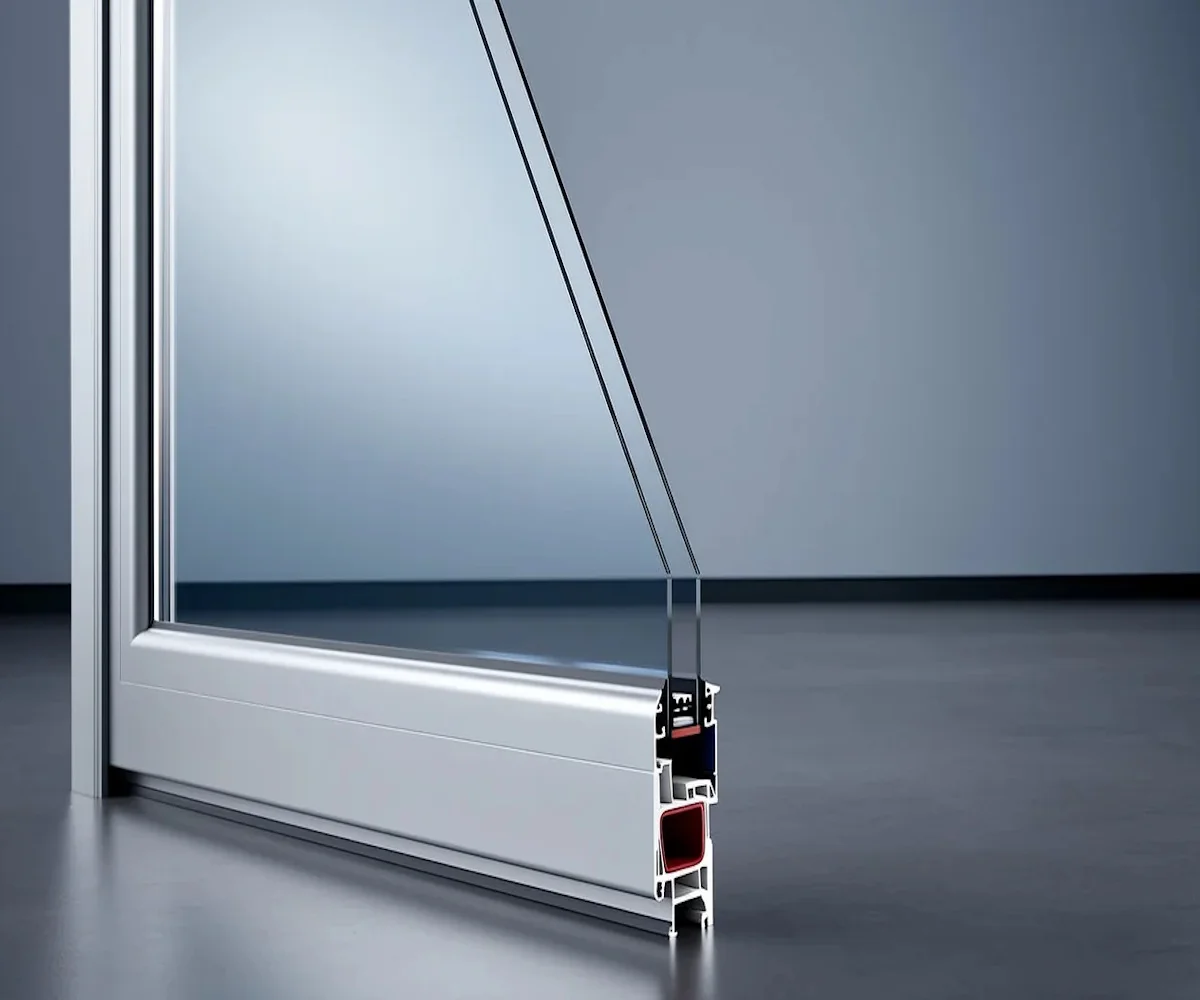

Thermal-Break Casement Window Aluminium Profile – 60 mm Frame

The thermal-break casement window aluminium profile is a 60 mm outer-frame system designed for residential and commercial window applications. The profile is produced in EN AW-6063-T5 aluminium and incorporates a 14.8 mm PA66-GF25 polyamide thermal-break strip to reduce heat transfer through the aluminium frame.



It is supplied as a coordinated profile suite covering the frame, sash, beading, mullion and adapter. The main load-bearing wall thickness ranges from 1.4 to 2.0 mm, while the system offers 35 mm, 40 mm and 53 mm outer-face sight-line variants. Its 51 mm glazing rebate accommodates insulating glass configurations, making the profile suitable for thermally insulated architectural window systems.



The standard profile length is 6.00 m, with 5.85 m and 6.05 m custom lengths also listed by the supplier. The system supports inward- and outward-opening sash configurations and is intended for applications including residential buildings, apartments and other architectural glazing projects.



Technical Specification:



Alloy / Temper	EN AW-6063-T5 (equivalent to GB/T 5237.1)
Wall thickness	1.4 – 2.0 mm main-load bearing wall (EN 12020 Class A)
Thermal-break strip	14.8 mm PA66 GF25 polyamide, mechanically crimped
Sight-line height	35 / 40 / 53 mm outer-face variants
Beading Height	20.8 mm — universal across frame, in-swing sash, out-swing sash, mullion, adapter
Glazing rebate	51 mm — accepts 6+12A+6 or 4+12A+4+12A+4 IG units
U-value (Uf)	2.4 W/(m²·K) with 24 mm IG · 1.9 W/(m²·K) with Low-E argon-filled IG
Sound Reduction	Rw ≥ 30 dB (STC 30) with laminated IG
Air Permeability	Class 4 per EN 12207
Water Tightness	Class E1200 per EN 12208
Wind Load Resistance	Class C5 per EN 12210
Standard Length	6.00 m (custom 5.85 / 6.05 available)
Base Standards	GB/T 5237.1 · GB/T 8478 · GB 8624 (Class A2 non-combustible)
