Aluminium Extrusion Press
By: Alcircle Pte Ltd
Details
Price:$ 160,000|Equipment Location:Bangalore, India|Material Code:Aluminium HE9 6063|Total Force of Press:750 U.S.T (680 M.T.)|Extrusion Pressure:210 Bar|Billet Diameter:121 mm|Dummy Block Diameter:127 mm
Description

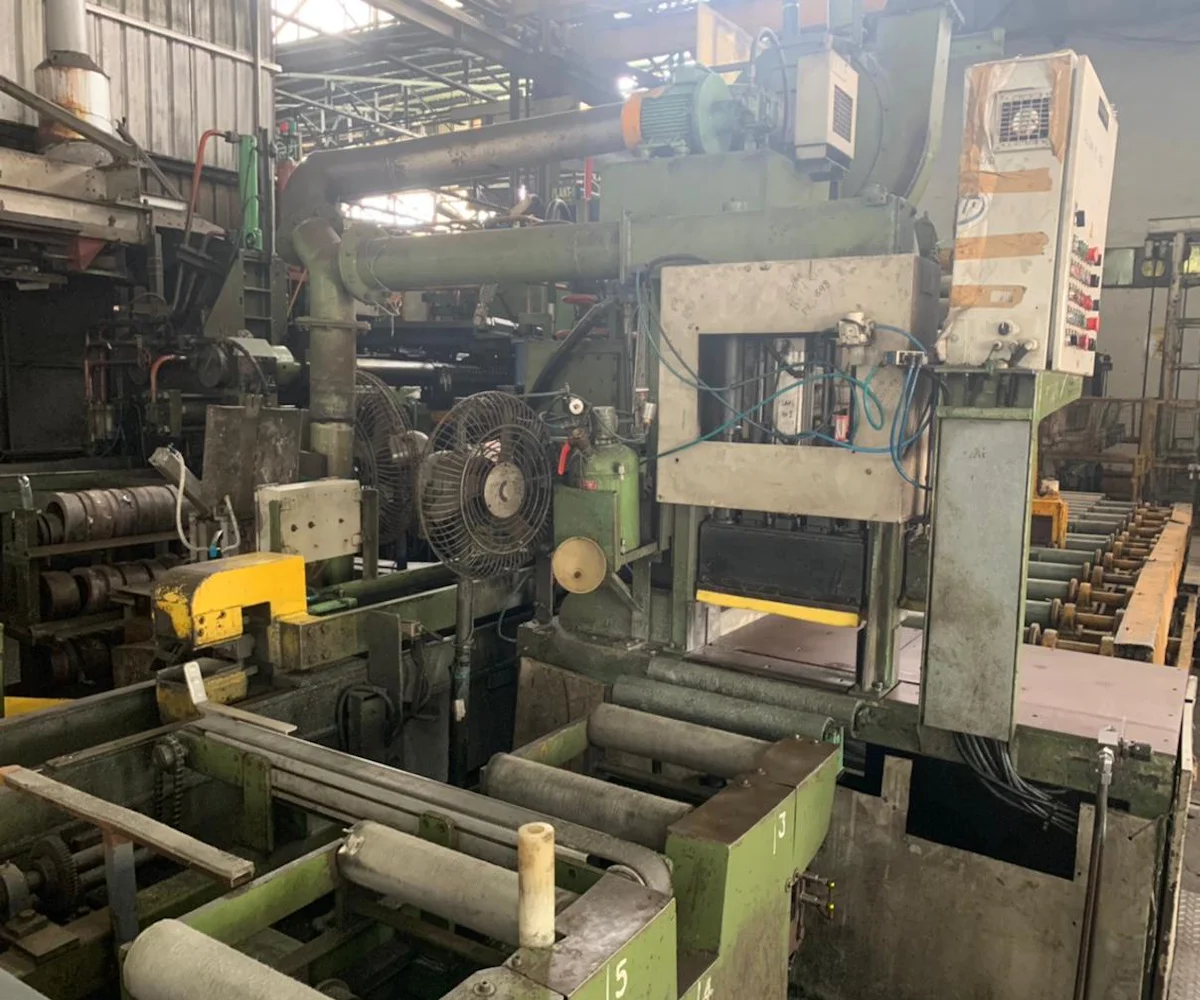

We have one Indian Jindal (1978) make 750 UST capacity aluminium extrusion press along with complete accessories right from log heating furnace, hot shear, overhead puller, under-bed cooling system, run-out cooling bed, belt conveyor, stretcher, cutting machine, die oven including in feed and out feed roller conveyor table and gauge stopper. In addition to this, we have a conveyor for moving the material for final packaging by the side of the press. Please note that the said press is in a very good working condition with the latest PLC Hydraulic (Up-gradation done in the year 2005) working continuously round the clock for about 10 to 15 days in a month.
Specification:
| PRESS PARAMETERS: | P1 (JINDAL - INDIA) |
| Weight per Inch of Billet | 0.76 kg/inch |
| Container Diameter & Area | 128mm. 12873 Sq.mm |
| Container length | 410mm |
| Maximum Billet Lenght | 420 mm. (16.5") |
| Minimum Billet Lenght | 203 mm. (8") |
| Maximum Ram Speed | 30mm/sec |
| Maximum Runout Length | 33.8 Meters (111') |
| Dead cycle Time | 14 Seconds |
| Tool Stack | ø250x250mm long |
| Die Sizes mm. | ø175mm |
| Unit Pressure | 52.82 kg/Sq.mm |
| Stem Dia. | ø122 |
| HLS Bore | ø 124 |
| Sealing Pressure & Force | 180 bar, 57MT |
| Main Pump Detail | 500LPM.x1No. |
| Motor Detail (Rexroth make) | 160Kw,1000RPMx1No. |
| Main Ram Dia | 609.6mm |
| Main Ram stroke | 970mm |
| Side Cylinder tonnage | 90 MT. |
| Main Ram tonnage | 640 MT. |
| Total lead-out table | 10'-0" |
| Total cooling Bed length x Width | 117' x 20' |
| PLC | Siemens make |
