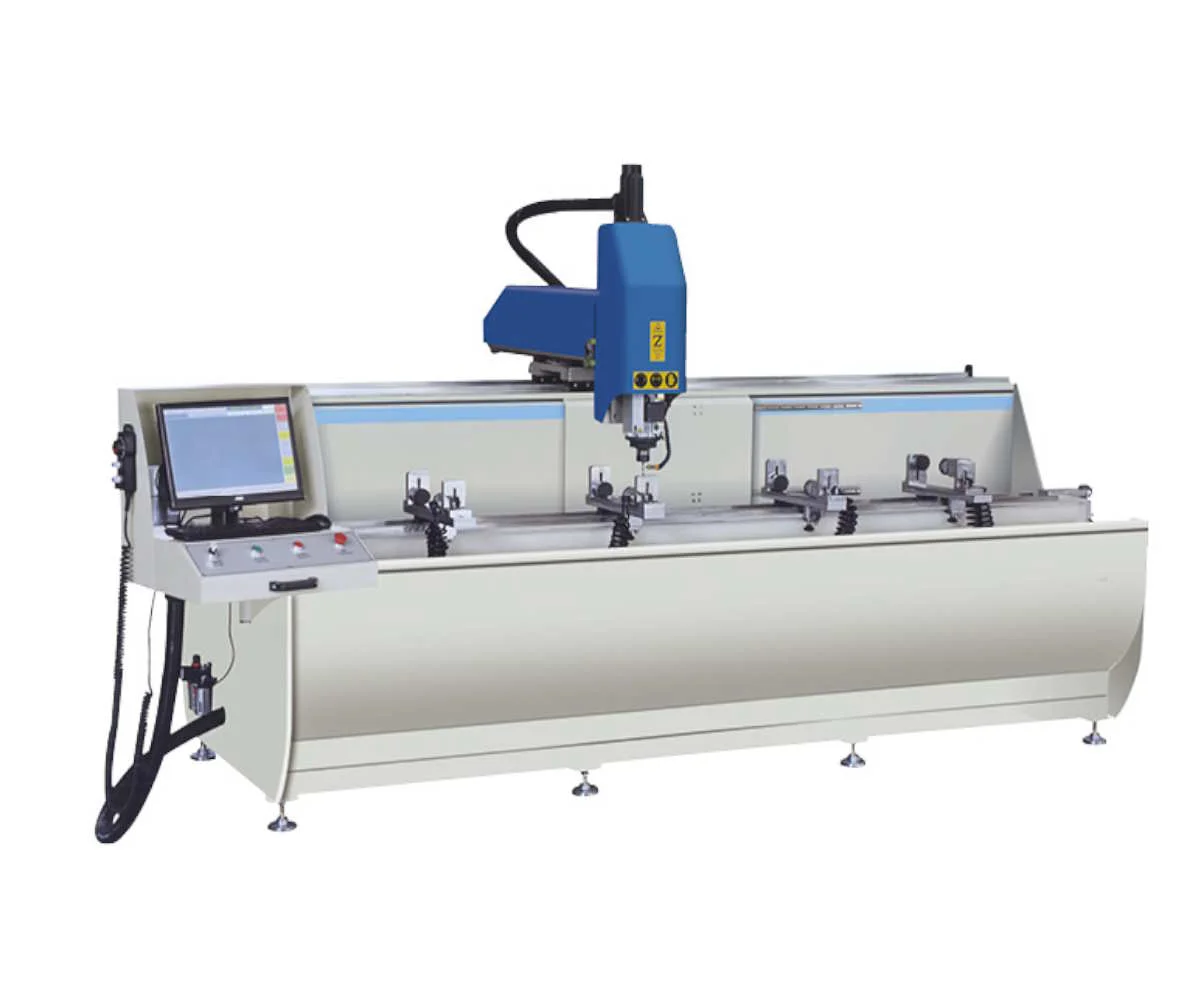

CNC-3000 Aluminum Profile Drilling Milling Machine
CategoryCNC MachinesManufacturerWoke Machinery Co., LtdMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsShip
*Login Required
Details
Price:Available on request
Description
| Technical Parameter | |
| Total Power | 6KW |
| Voltage | 380V/50Hz |
| Working air pressure | 0.5-0.8MPa |
| Main axis power | 3KW |
| Max rotary speed | 18000r/min |
| X-axis route | 3000mm |
| Y-axis route | 500mm |
| Z-axis route | 350mm |
| X-axis speed | 50000mm/min |
| Y&Z axis speed | 15000mm/min |
| Overall dimension | 4180 x1600 2200mm |
| Weight | 1400kg |
