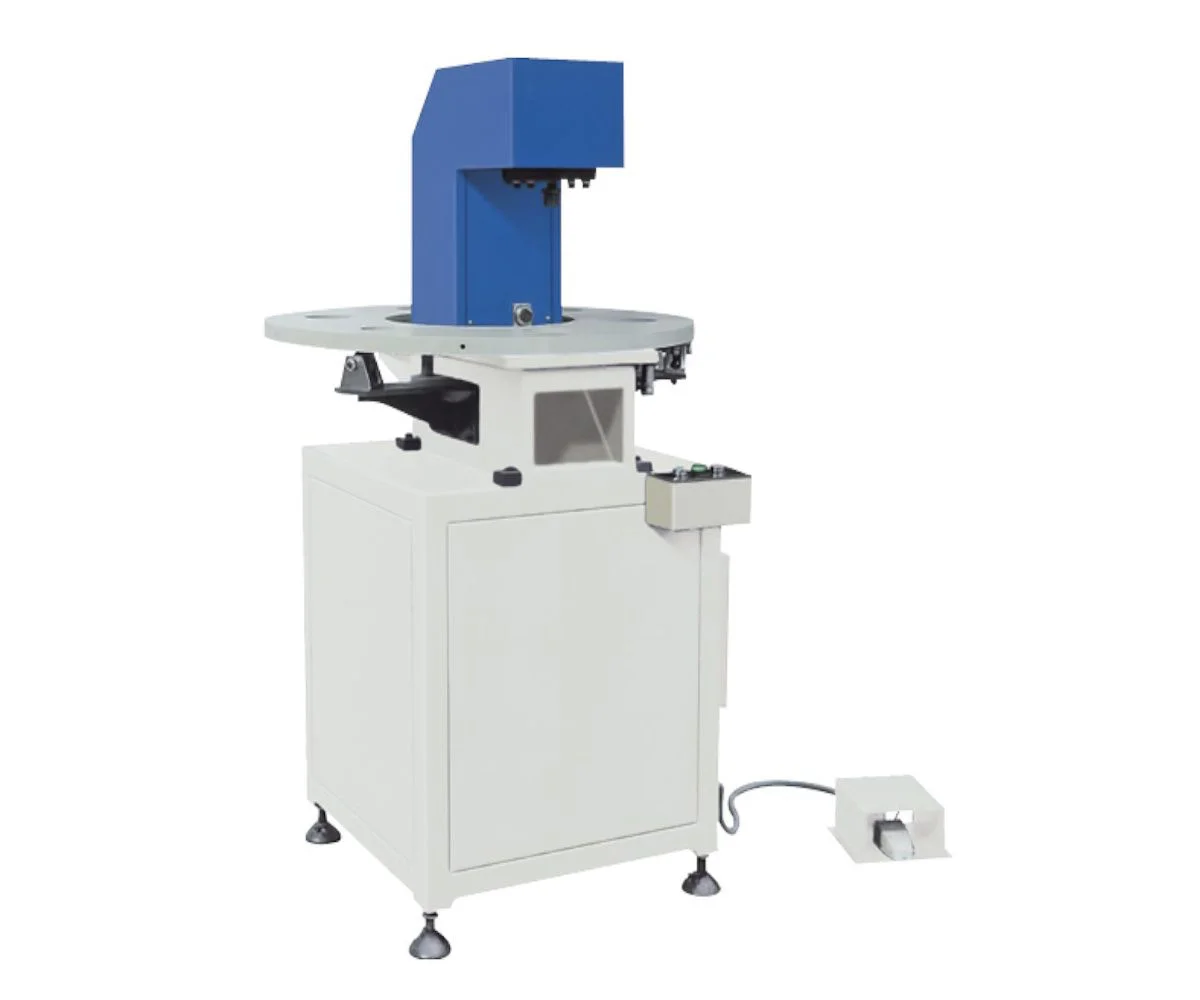

Aluminium 6-Position Punching Machine
CategoryAluminium Consumer Goods EquipmentManufacturerWoke Machinery Co., LtdMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsShip
*Login Required
Details
Price:Available on request
Description
- Used for punching precedure in the manufacturer of aluminum window and door
- Used for various aluminum profile slots and holes processing
- Adopt disk-type and six-station worktable,equipped with six sets of mould, each mould can be used at any time by the worktable rotating,which greatly increase the production efficency, high hydraulic power and good processing quality
| Technical Parameter | |
| Input Power | 2.2KW |
| Voltage | 380V/50Hz |
| Working pressure | 16 MPa |
| Max punching pressure | 50 KN |
| Oil tank capacity | 20L |
| Punching stroke | 30mm |
| Overall dimension | 800 x 800 x 1400mm |
| Weight | 500kg |
