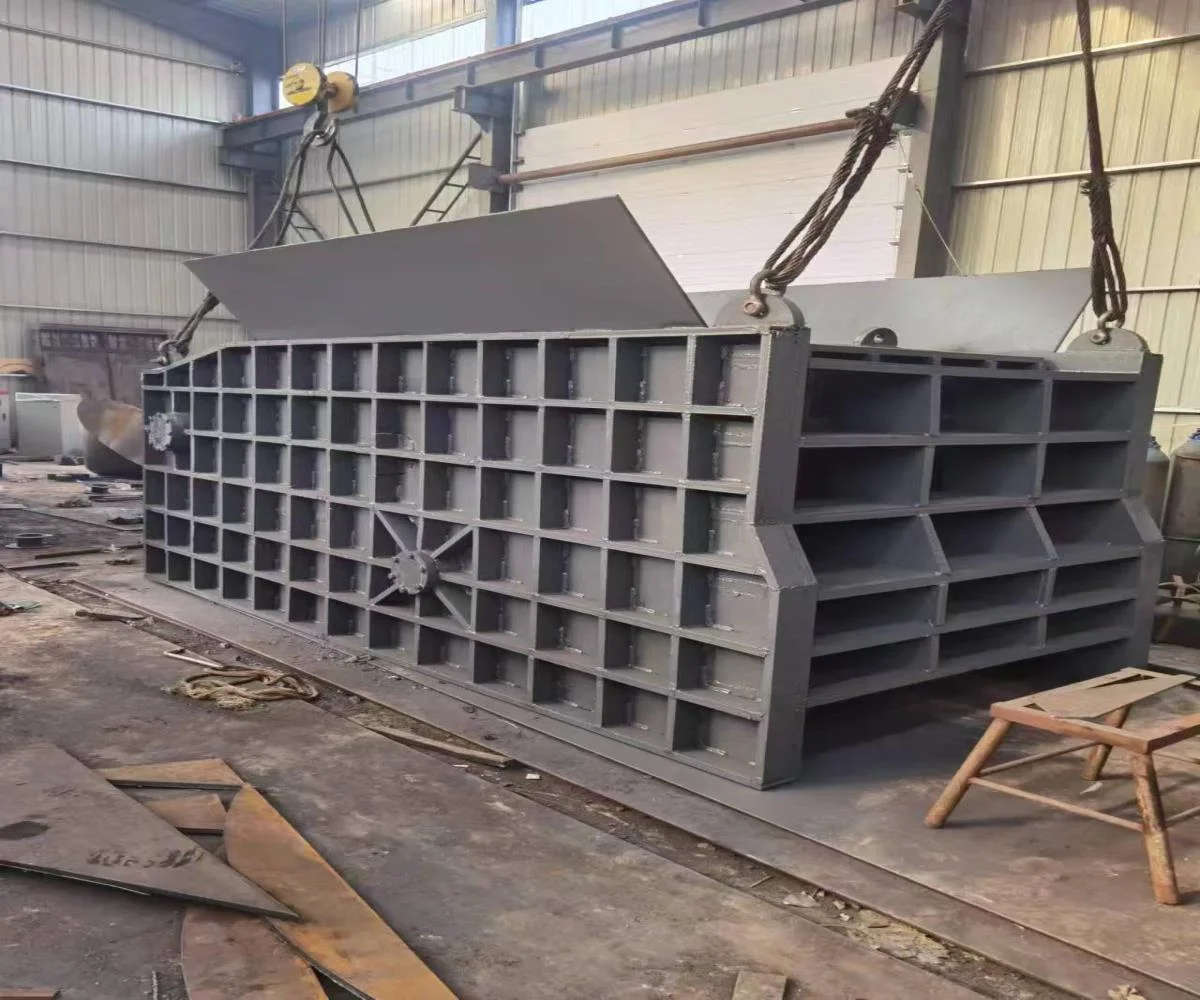

Cast Aluminium Shredder Crusher

The aluminium scrap shredder is a heavy-duty industrial machine designed for efficient size reduction and material recovery of ferrous (cast iron) and non-ferrous (aluminum alloy) scrap. Engineered to meet stringent recycling standards, this equipment ensures optimal processing performance for metal recycling plants, foundries and waste management facilities.

Core Capabilities:

• ​Dual-Material Processing: Simultaneously shreds cast iron (hardness ≤ 250 HB) and aluminium alloys (e.g., ADC12, A380) with a throughput of 3-15 tons/hour.
• ​Precision Cutting System: Equipped with H13 tool steel rotor blades (hardness 55-58 HRC) and adjustable 30-100 mm output particle size (ISO 21940-11:2016 compliant).
• ​Separation Efficiency: Integrated eddy current separator recovers ≥98% non-ferrous metals (EN 15442:2011 certified).
• ​Power Configuration: 75-160 kW electric drive (CE/IEC 60034-30-1 Class IE3 efficiency).
• ​Dust Control: A negative-pressure filtration system reduces PM2.5 emissions to less than 10 mg/m³ (EPA 40 CFR Part 60 Subpart OOOO).
• ​Safety Compliance: Emergency stop (ISO 13850), overload protection (EN 60204-1), and noise level < 85 dB(A) at 1 m distance.
• ​Corrosion Resistance: Reinforced housing with AR400 steel lining (thickness 20 mm) and IP65-rated electrical components.
• ​Smart Monitoring: IoT-enabled sensors track blade wear, temperature and vibration (compatible with IIoT protocols).
• ​Energy Recovery: The regenerative braking system reclaims 15-20% kinetic energy (EN 50598-3:2019 verified).
• This machine combines rugged construction with advanced automation, delivering a 40% reduction in landfill-bound metal waste while complying with EU Machinery Directive 2006/42/EC and RoHS standards. Optional XRF metal analysis module available for real-time alloy identification (ISO 3497:2020).
