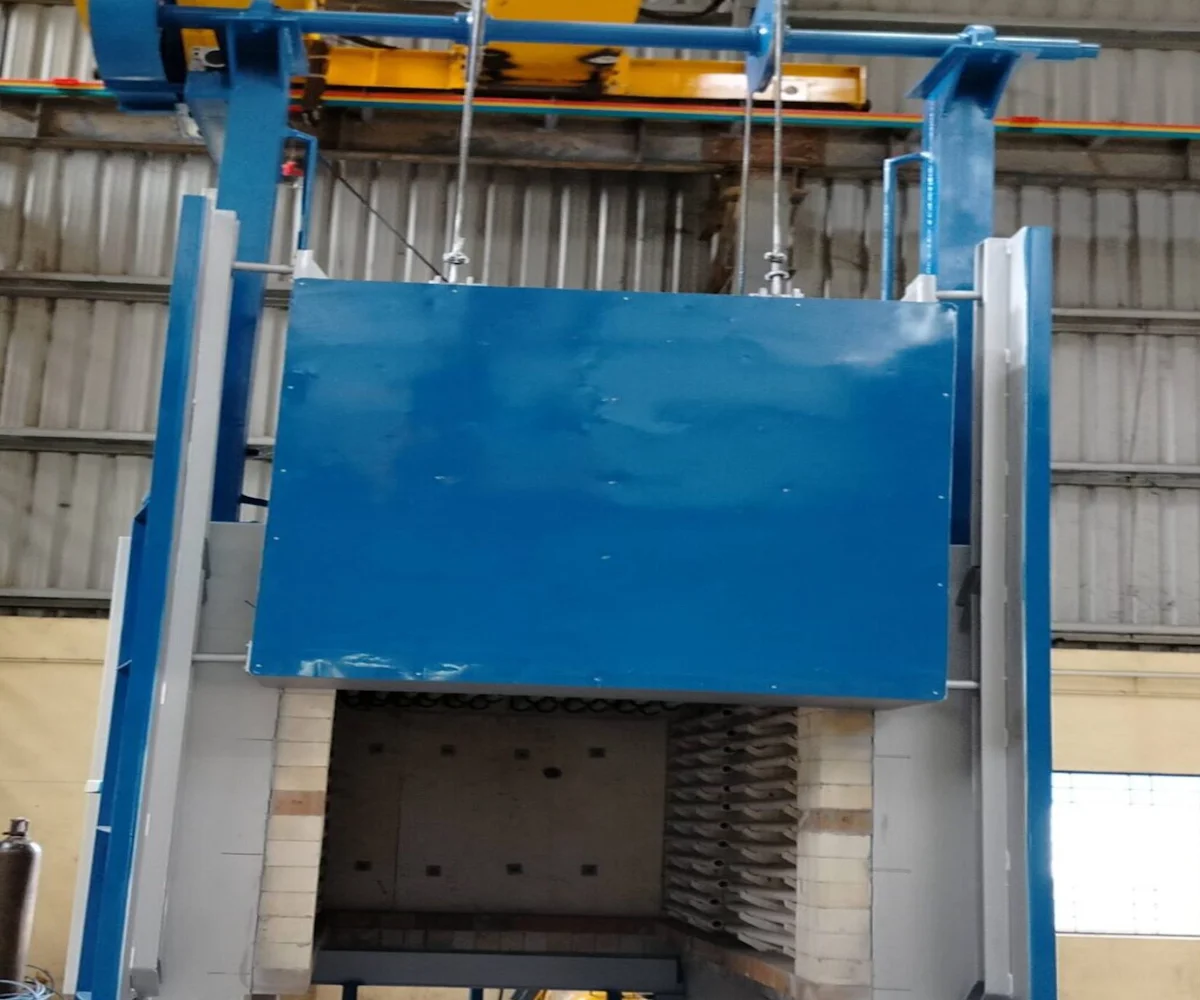

Bogie Hearth Furnace

The bogie-hearth furnace is offering the heating treatment of the large and heavy components. The bogie hearth is movable and in-out operation helps for the easy loading and unloading of components to the furnace.

The bogie hearth furnace's chamber flexibility is worth emphasizing (i.e., the ability to quickly and efficiently adapt to the type of study). It will come with the heavy-duty electro-mechanical mechanism for bogie movement with heavy loads. According to the production requirement, the furnace will come with a single or double door and a single or double bogie hearth. These installations are also very convenient to integrate into production and machining lines.

The bogie furnace can be used as an atmosphere and controlled atmosphere as per the application and requirements. The furnace will start from an operating temperature of 100°C to 1400°C, according to the process requirement. This furnace is commonly used for sintering, hardening, annealing, tempering, stress relieving and normalizing.

According to the customer's reliability and requirements, the furnace Heating will be provided through resistant heating elements, gas fired or oil-fired burners. The furnace will come with the High temperature resistant sealings to prevent heating leakage.

The control system is provided with options to set and control the ramping rate, soaking rate and cooling rate depending on the process cycle; the option of PLC-based control is also available.

Features:

• Temperature range from 200°C to 1400°C
• Chamber Design: Cylindrical/Rectangular
• Heating Media option: Resistance heating/oil-fired/gas-fired
• Standard Weight Capacity: 200 Kg’s to 6,000 Kg’s (customized available up to the 15,000 Kg’s)
• Temperature uniformity +/-6°C or +/-10°F
• Controlled heating, forced convection cooling
• Manual or auto operation with a user-friendly interface
• Friendly programming of the furnace system processes
• Instrumentation Options: Thyristor, programmable temperature controller, temperature recorder, PLC, SCADA, HMI
• NADCAP and AMS specifications readiness.
• Insulation on Bogie: Deferent layers of brick lining,
• Insulation Apart from the Bogie: Vacuum-formed ceramic fibre boards/ceramic fiber blankets and modules/different layers of brick lining

Applications:

• Annealing
• Stress-relieving
• Hardening
• Tempering
• Normalising
• Wire annealing
• Case hardening
• Preheating/preheating for forging

Advantages:

• Wide range of heat treatment processes and applications
• Customizable
• Simple design, modular, fitted and adjusted to tasks and plant conditions
• Flexibility of operations
• Easy and precise movement of heavy loads
• Low consumption of energy, process gases and other utilities
• Excellent temperature uniformity
• High-performance reliability
