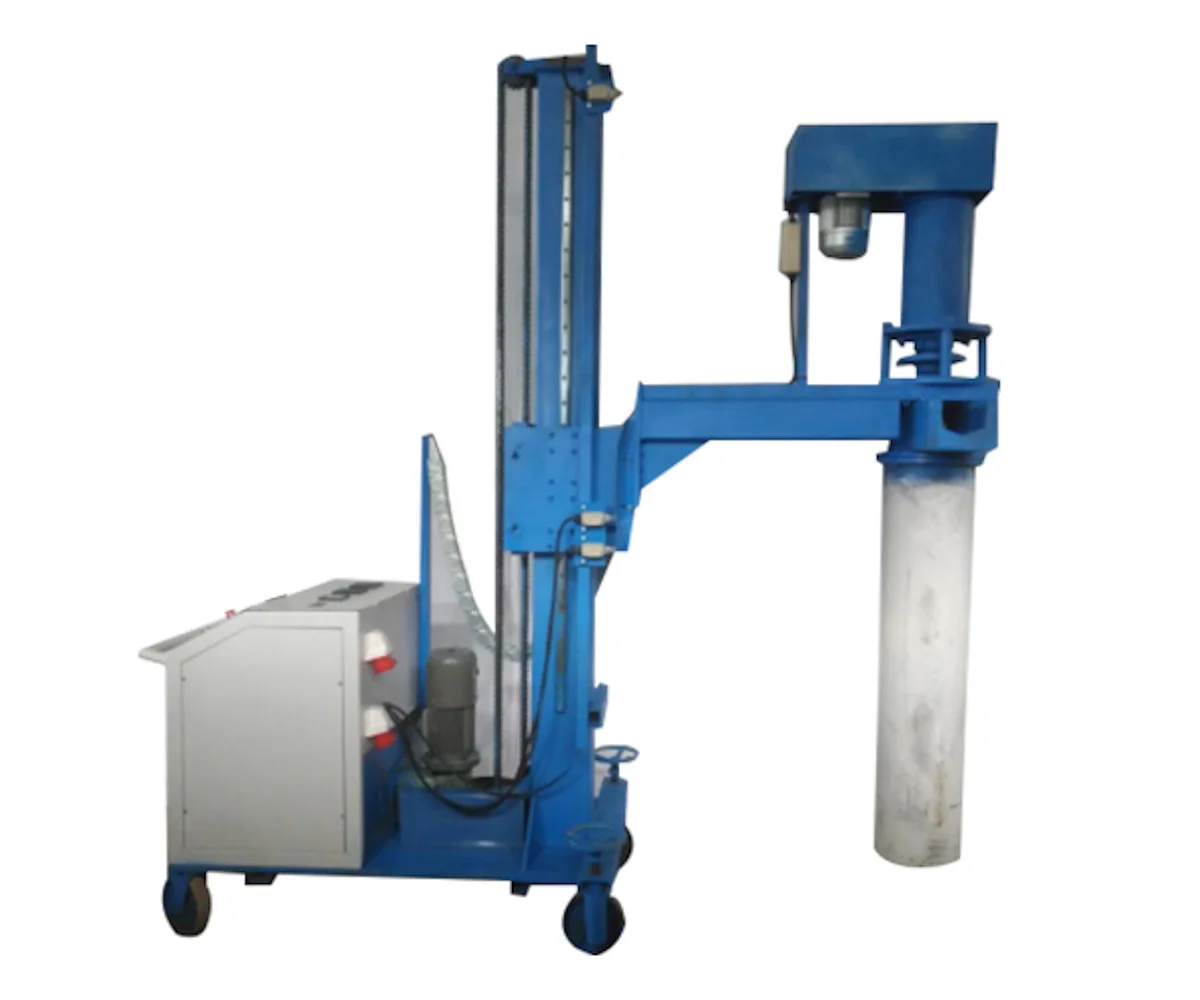

Aluminium Water Transfer Pump

Features:

1. The aluminum water pump uses an impeller to transport high-temperature alloy liquid, which has the advantages of large flow, low failure rate and easy use

2. The pump body is made of high-temperature ceramic material, with a maximum operating temperature of 1000 degrees Celsius. It does not deform at high temperatures, is not easy to corrode, has a long service life, does not pollute the alloy melt, and can improve the mechanical strength and corrosion resistance of the alloy

3. The pump control system uses imported frequency conversion controller, which has stable performance and convenient operation

4. The transmission power is directly driven by the motor, using special metal dust explosion-proof motor, fast start-up, high horsepower and good safety

5. The pump body, power mechanism and transmission elements are connected by tie rods. The pump chamber feed port adopts bottom feeding. When the aluminium water pump is transferred as a whole, there is little molten metal residue, which is very easy to clean and greatly reduces the workload of workers

6. The molten metal conveying pipeline adopts ceramic heat preservation flow channel, which has good heat preservation effect, long service life, is not easy to stick to the material, and is easy and convenient to load and unload, which reduces the temperature loss of the alloy liquid, improves the quality of the alloy liquid, and helps to reduce the defective rate of products

7. The pump body and impeller are easy to maintain and replace. It helps to improve production efficiency and economic benefits

It is suitable for high temperature environments such as transfer, pouring, and evacuation of metal solutions such as aluminum, magnesium, zinc, and tin. It reduces labor intensity, improves the working environment, and protects work and production safety

The maximum melt lifting height is 1800mm, and the maximum flow rate is 1 cubic metre/minute
