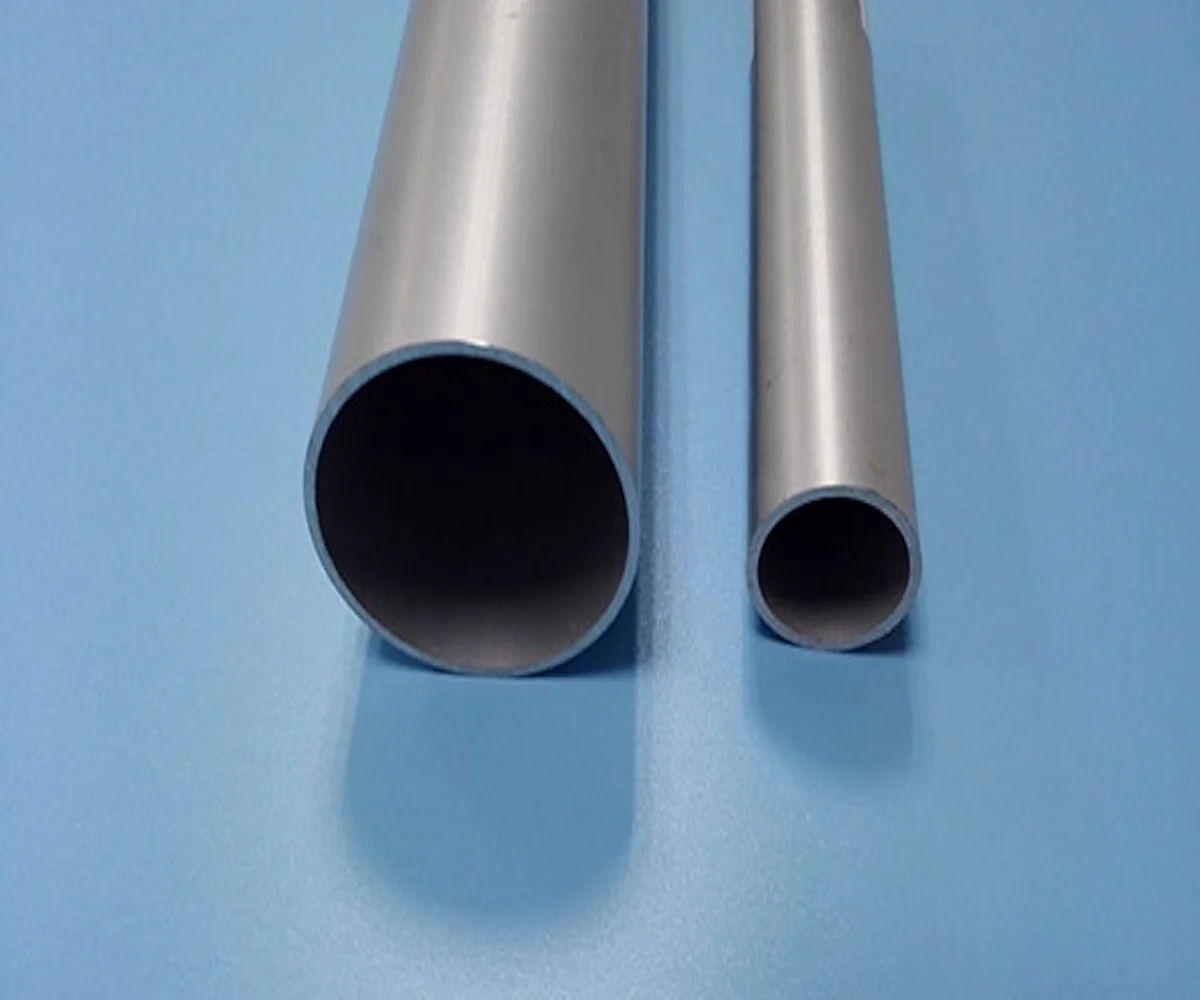

Aluminium Tube

Aluminium round tubes for automotive air conditioning systems:

• Alloys: LF21, 3103, 3003, 5049, 5052, 6063
• Dimensions: Φ8 x 1 - Φ30 x 2 mm
• Tolerance: Outer diameter and wall thickness +/- 0.05 mm
• States: O, H112, H111, H12, H14, H16, H18, H32, H34, T4, T42, T6, T83

Aluminium round tubes for car radiators:

• Alloys: LF21, 3103, 3003
• Dimensions: Φ6 x 0.35 - Φ9 x 0.5 mm
• Tolerance: Outer diameter and wall thickness +/- 0.05 mm
• States: O, H111, H12, H14, H16, H18


Aluminium round tube sleeve for automotive air conditioning piping:

• Alloys: LF21, 3103, 3003, 6063, 6082, 5052
• Dimensions: Φ15 x 1.5 - Φ25 x 2 mm
• Tolerance: Outer diameter and wall thickness +/- 0.10 mm
• States: O, H111, T4, H32, H34


Subcooler and muffler use aluminium round tubes:

• Alloys: LF21, 3103, 3003, 6063, 6082, 5052
• Dimensions: Φ20 x 1.5 - Φ30 x 2.5 mm
• Tolerance: Outer diameter and wall thickness +/- 0.10 mm
• States: O, H111, T4, H32, H34


Aluminium round tube heat exchangers for power plant air-cooled systems, seawater desalination systems and large cold storage facilities:

• Alloys: 1060, LF21, 3103, 3003, 6063, 5052
• Dimensions: Φ16 x 0.6 - Φ50 x 5 mm
• Tolerance: Outer diameter and wall thickness +/- 0.10 mm
• States: O, H112, H111, H14, T4, H32, H34


Multi-hole flat tubes for air cooling in buses, construction machinery condensers and power plants:

• Alloys: 1100, LF21, 3103, 3003
• Dimensions: Width 20-120 mm, Height 4-12 mm, Wall thickness 0.45-1.2 mm
• Status: H112


Other industrial aluminium tubing:

• Alloys: 1060, 1100, 2024, LF21, 3103, 3003, 5052, 5083, 5056, 6005, 6060, 6063, 6061, 6082, 7003, 7005, 7022, 7075
• Dimensions: Φ15 x 1 - Φ120 x 20 mm
• States: O, H112, H111, H12, H14, H16, H18, H32, H34, T4, T6, T73, T8, T9
