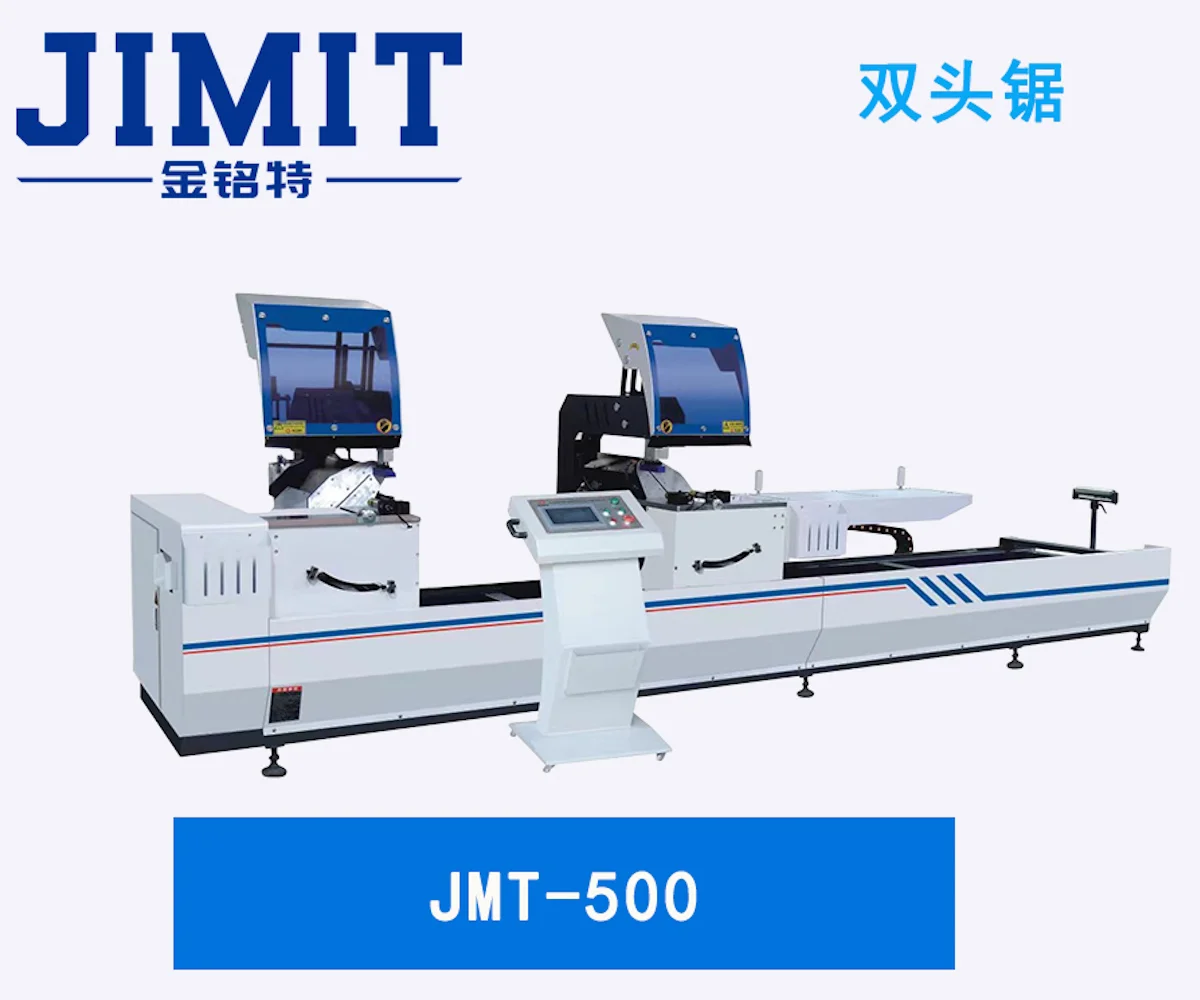

Double-Head Saw for Aluminium Door and Window

Machine power supply

3-phase 380V/50HZ

Cutting size

90° = Width 290mm, Height 183mm

Controller PLC

0.583333333

45° = Width 290mm, Height 128mm

Total machine power

6.2 KW

Cutting angle (pneumatic swing angle)

45"-90"

Positioning mode

Cylinder lock position

Saw blade motor power

3KW-2 units

Saw blade size

φ550 mm x 30 x 4.2 x 120T

Control mode

Manual control

Saw blade speed

2840 r/min

Cutting feed rate

0-10 m/min

Cutting cooling

Mist cooling

Positioning accuracy

±0.1 mm

Cutting length

420 mm-4200 mm

Machine dimensions (LxWxH)

Length 5538, Width 1325, Height 1562

Angle accuracy

±3'

Machine air pressure

0.6-0.8 MPa

Machine weight

1800 kg
