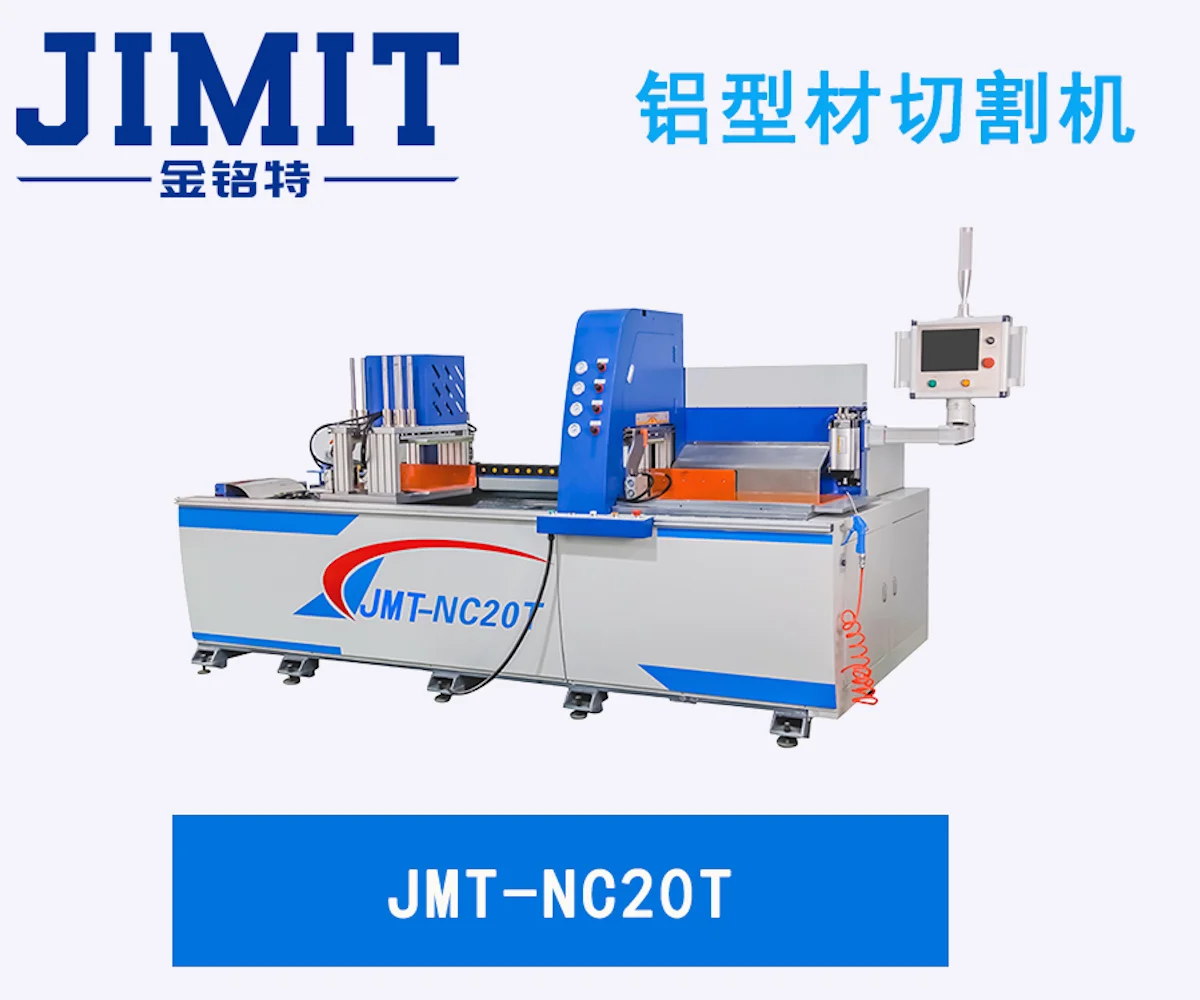

Fully Automatic Aluminium Cutting Machine
By: Jinmingte Intelligent Technology (Suzhou) Co., Ltd.
Details
Price:Available on request
Description
Parameter:
|
Circular saw blade specifications |
(455x510x550x610) mm |
Touchscreen |
complicated and easy |
|
Saw blade speed |
1500-4000 RPM Continuously Variable Transmission |
PLC |
Mitsubishi |
|
Automatic feeding stroke |
1300mm (can be fed back and forth) |
Servo motor |
Mitsubishi |
|
Feeding accuracy |
0.01 mm |
Variable frequency motor |
Shihlin |
|
Sawing precision |
±0.5mm (single) |
Spindle motor |
Tomita |
|
Sawing vertical accuracy |
Height 100mm < 0.1mm |
linear guide |
HIWIN Taiwan (H-rated) |
|
Spindle servo power |
15 HP |
Ball screw |
HIWIN Taiwan (C5 grade) |
|
Saw blade spindle diameter |
30mm |
Pulse injector |
Taiwan's main point |
|
Feeding servo power |
1 kW |
Cylinder |
Immediately |
|
Hydraulic station power |
1.5 kW |
Solenoid valve |
Immediately |
|
Vacuum power |
7.5 HP |
Intermediate relay |
Izumi |
|
Clamping method |
Using pneumatic clamping |
Proximity switch |
Omron |
|
Air pressure requirements |
6-8 Pa |
24V power supply |
Mingwei |
|
Machine dimensions |
4100x2200x1800 mm |
Contactor |
Schneider |
|
Mechanical weight |
2680 kg |
Hydraulic components |
Yuken and Kawai |
|
Width, Height |
400 mm, 200mm |
Spindle bearings |
NSK |
