ceramic foam filters for molten aluminium filtration

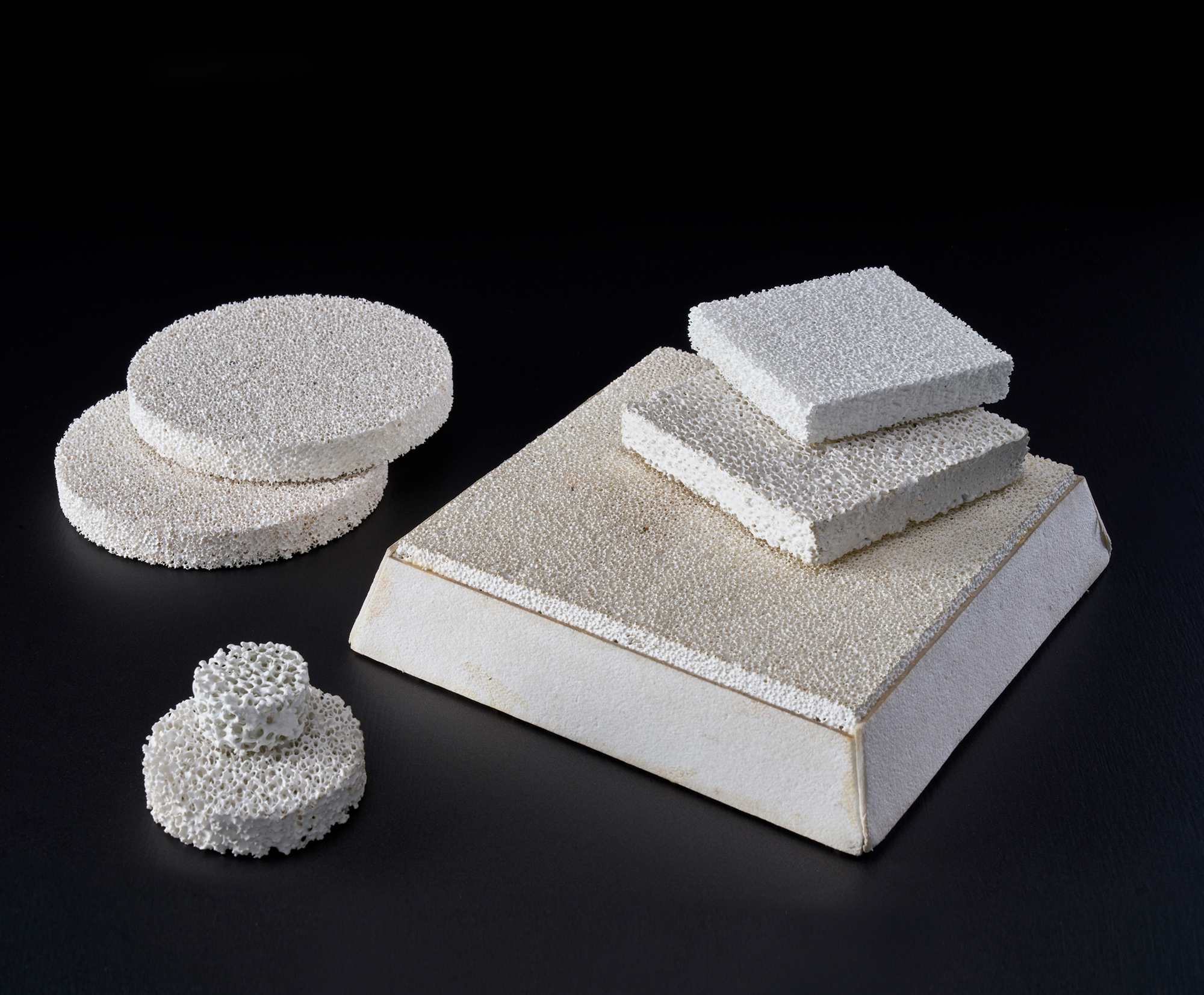

Alumina Ceramic Foam Filter is mainly for the filtration of molten aluminium and alloys in foundries and

cast houses. With the excellent resistance to attack and corrosion from molten aluminum, the filter can effectively remove inclusions, reduce trapped gas and provide laminar flow,and then the filtered metal is significantly cleaner. Cleaner metal results in higher‐quality castings, less scrap, and fewer inclusion defects, all of which contribute to the bottom‐line profit.

MODEL NAME: ALU‐CFF

DESCRIPTION: Alumina ceramic foam filter

APPLICATION: For the molten aluminum filtration

● Reduce scrap related to inclusions

● Reduce costs related to inclusion defects

● Increase productivity with higher extrusion or rolling speeds

● Increase casting flexibility with easy alloy changes

● No holding metal

FEATURES:

● Superior dimensional tolerances

● Stable chemical composition

● Highest filtration efficiency

● Excellent strength

● Resistant to corrosion attack by molten aluminum and alloys

● Beveled edges and compressible gasket

PHYSICAL PROPERTY:

Main material: Al2O3, SIO2

Working Temperature: ≤1100℃

Color: White

Hole density: 10/20/30/40/50/60PPI(PPI=pores per inch)

Porosity(%): 78‐90

Compressive Strength(MPa): ≥1.0 (Room temperature)

Bulk Density(g/cm3) :0.35‐0.45

Thermal shock resistance: ≥2times/800℃‐Room temperature
